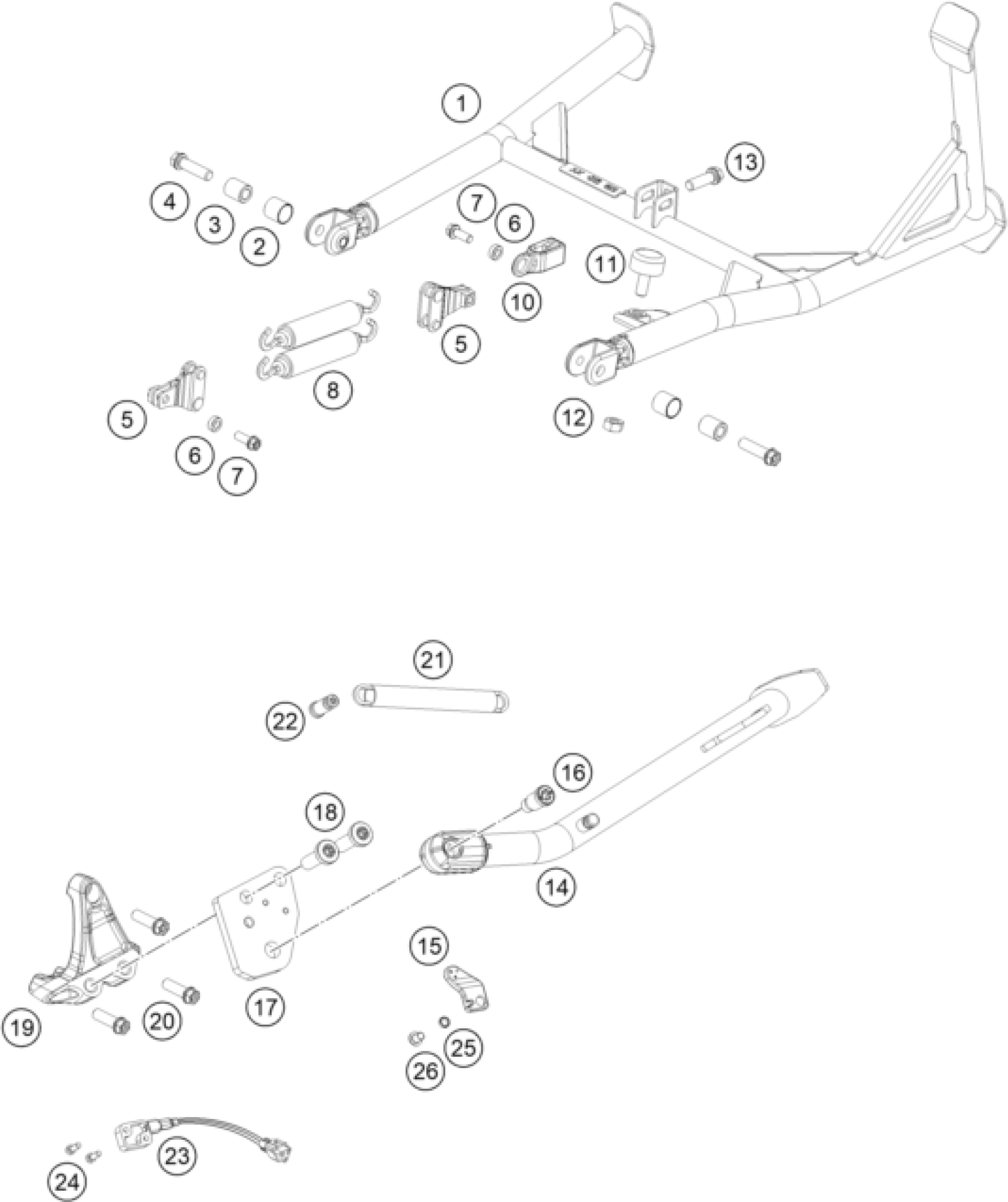

KTM 1290 SUPER ADVENTURE R 2021 SIDE / CENTER STAND Diagram

#

Description
Price

1

Centre stand

61903122000C1

$426.82

2

Plain bearing

61903916050

$2.05

3

Bushing

61903916020

$5.70

4

HH COLLAR SCREW M8X30 TX40

0025080306S

$3.08

5

Rear spring mount, cmpl.

61903022026C1

$45.90

6

Bearing bush, internal spring

61903022010

$5.70

7

HH collar screw M6x16 TX30

0025060166

$3.08

8

SIDESTAND SPRING L=118MM

60303030100

$33.65

10

Swivel joint support

61903022024C1

$23.37

11

BUMP RUBBER M8X25MM

58303070100

$5.88

12

Hexagon nut DIN934 M8

0934080003

$2.05

13

HH collar screw M8x25

0025080256

$2.05

14

Side stand

61903123100C1

Unavailable

15

MAGNET HOLDER

60303029050

$8.31

16

Screw for side stand M10x31.2

62503027200

$6.72

17

Side stand bracket

61903026060

$55.06

18

AH collar screw M10x30 ISA45

0035100309S

$3.08

19

Side stand bracket

61903026100C1

$83.77

20

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08

21

SIDE STAND SPRING

60303024100

$40.57

22

Special screw, side stand prin

61303028001

$11.40

23

Side stand sensor

61011045000

$59.64

24

Cap head screw ISO 14580-M4x12

014580040123S

$1.49

25

BUSHING MAGNET HOLDER

60303029051

$1.49

26

Oval head screw ISO 7380 M 6X8

0902060083

$1.49
