Description

Price

2

Bearing bush 14x15,03/18,5/24,

46181138

$6.82

3

HS cylinder-head screw R1/8 l8

50180095

$2.42

6

Rubber cap do not open 22x5,5

46811208

$3.08

4

PLUG SCREW M5X6 CPL.

36120151S

$4.11

5

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

7

Compression cpl.

50181101S52

$92.28

11

Mainspring (59)160-198,5 dampe

91010365

$156.98

12

Sticker set XPLOR PDS 90x40

52000214

$32.25

14

Repair kit ADV. R

RP10013

Unavailable

15

Ball joint bearing kit top 12m

R12012T

Unavailable

98

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

8

Round-wire snap ring 49x1,5

46810010

$3.08

1

upper part cpl.

46181414S1

$735.74

9

lower part cpl.

46181525S1

$536.87

10

PA with locking ring

15000M03S1

$516.11

13

Repair kit spring retainer sho

RP10040T

Unavailable

11

Mainspring (59)150-198,5 dampe

S80980000500020

Unavailable

11

Mainspring (59)170-198,5 dampe

S80980000600020

Unavailable

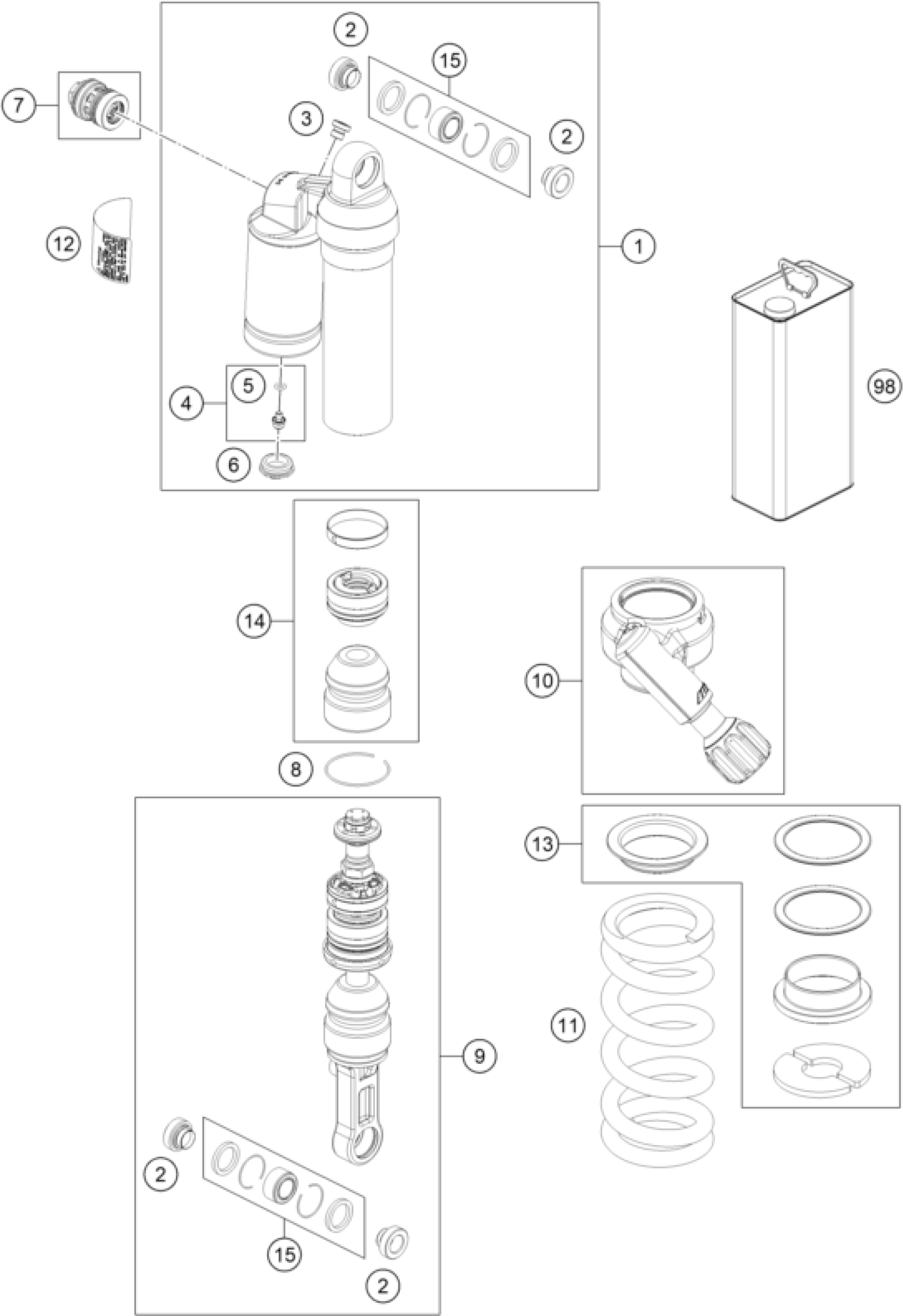

KTM 1290 SUPER ADVENTURE R 2021 SHOCK ABSORBER DISASSEMBLED Diagram

Bearing bush 14x15,03/18,5/24,

HS cylinder-head screw R1/8 l8

Rubber cap do not open 22x5,5

PLUG SCREW M5X6 CPL.

O-ring 5,28x1,78 NBR70 black

Compression cpl.

Mainspring (59)160-198,5 dampe

Sticker set XPLOR PDS 90x40

Repair kit ADV. R

Ball joint bearing kit top 12m

SHOCK ABSORBER FLUID 5 LT

Round-wire snap ring 49x1,5

upper part cpl.

lower part cpl.

PA with locking ring

Repair kit spring retainer sho

Mainspring (59)150-198,5 dampe

Mainspring (59)170-198,5 dampe
