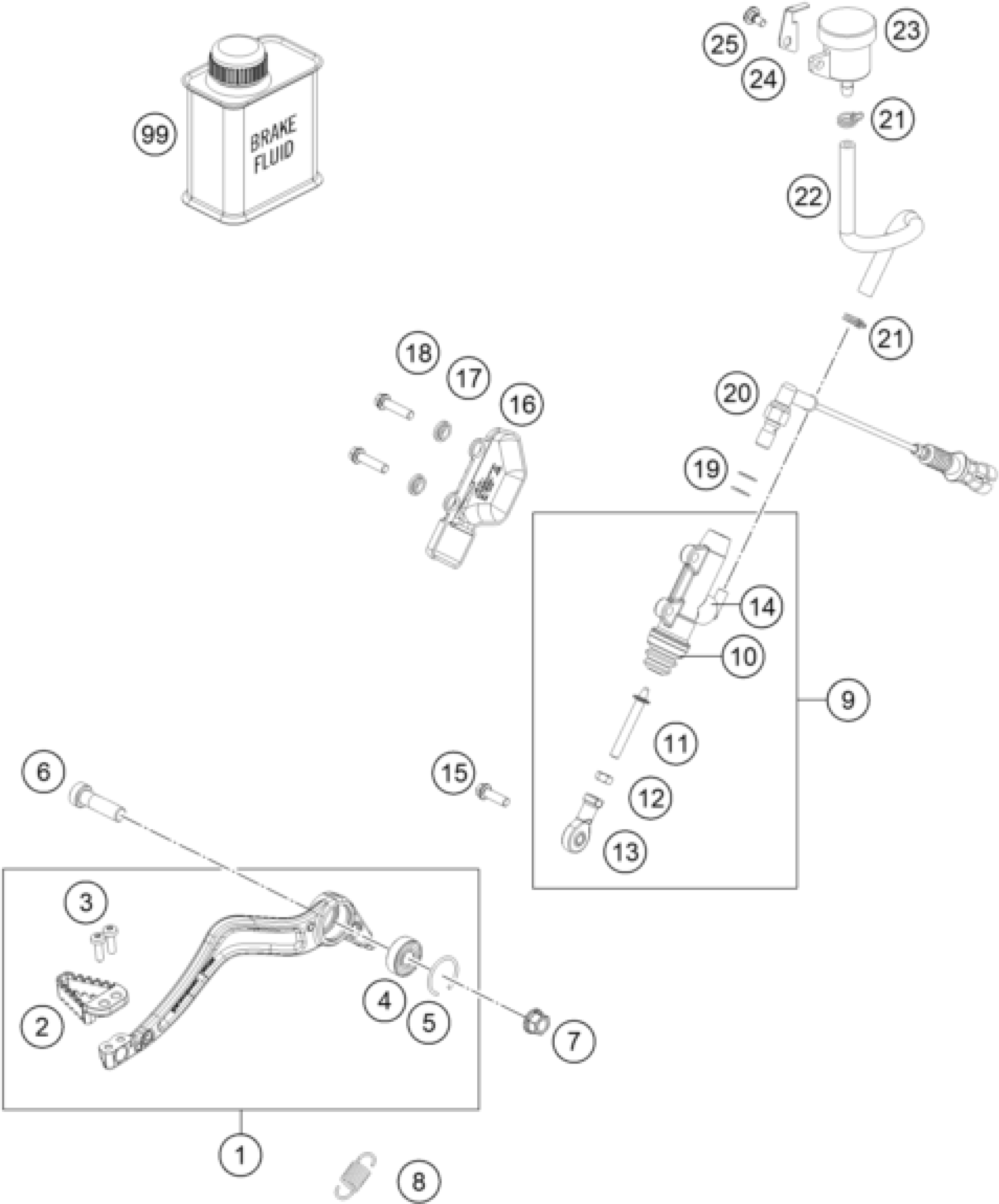

KTM 1290 SUPER ADVENTURE R 2021 REAR BRAKE CONTROL Diagram

#

Description
Price

1

Brake pedal cmpl.

61913050033C1

Unavailable

2

Brake pedal tread

61913051200C1

Unavailable

3

INT. TORX OVAL HEAD M5X16

0018050163

Unavailable

4

Grooved ball bearing 6000 LUV

0625060003

Unavailable

5

round wire snap ring DIN 7993

0993026500

Unavailable

6

AH-COLLAR SCREW M10X35 ISA45

0032100356S

Unavailable

7

COLLAR NUT M10 WS=13

54630044000

Unavailable

8

Return spring for brake lever

54603062200

Unavailable

9

REAR BRAKE CONTROL

6031306000030

Unavailable

10

RUBBER SLEEVE

54513151000

Unavailable

11

PUSH ROD CPL.

60313056044

Unavailable

12

Hex. nut DIN 934 M6

0934060003

Unavailable

13

SWIVEL HEAD M6 FOOT BRAKE LEV.

54603069000

Unavailable

15

HH collar screw M6x20 TX30

0025060206

Unavailable

14

ANGLE PIECE

54513155000

Unavailable

16

BRAKE CYL. PROTECTOR ''BREMBO'

54513038000

Unavailable

17

COLLAR BUSHING

50213161000

Unavailable

18

SK-BUNDSCHRAUBE M6X25 ISA30

0025060256S

Unavailable

19

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

20

BRAKE LIGHT SWITCH REAR

60311051000

Unavailable

21

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

22

HOSE FOR RESERVOIR 6X1,5

69013069001

Unavailable

23

Brake fluid reservoir cmpl.

61713069044

Unavailable

24

Lock washer, brake fluid reser

61713069020

Unavailable

25

Screw, reservoir

69013099150

Unavailable

99

Brake fluid DOT5.1 0,25L

00062030000

Unavailable
