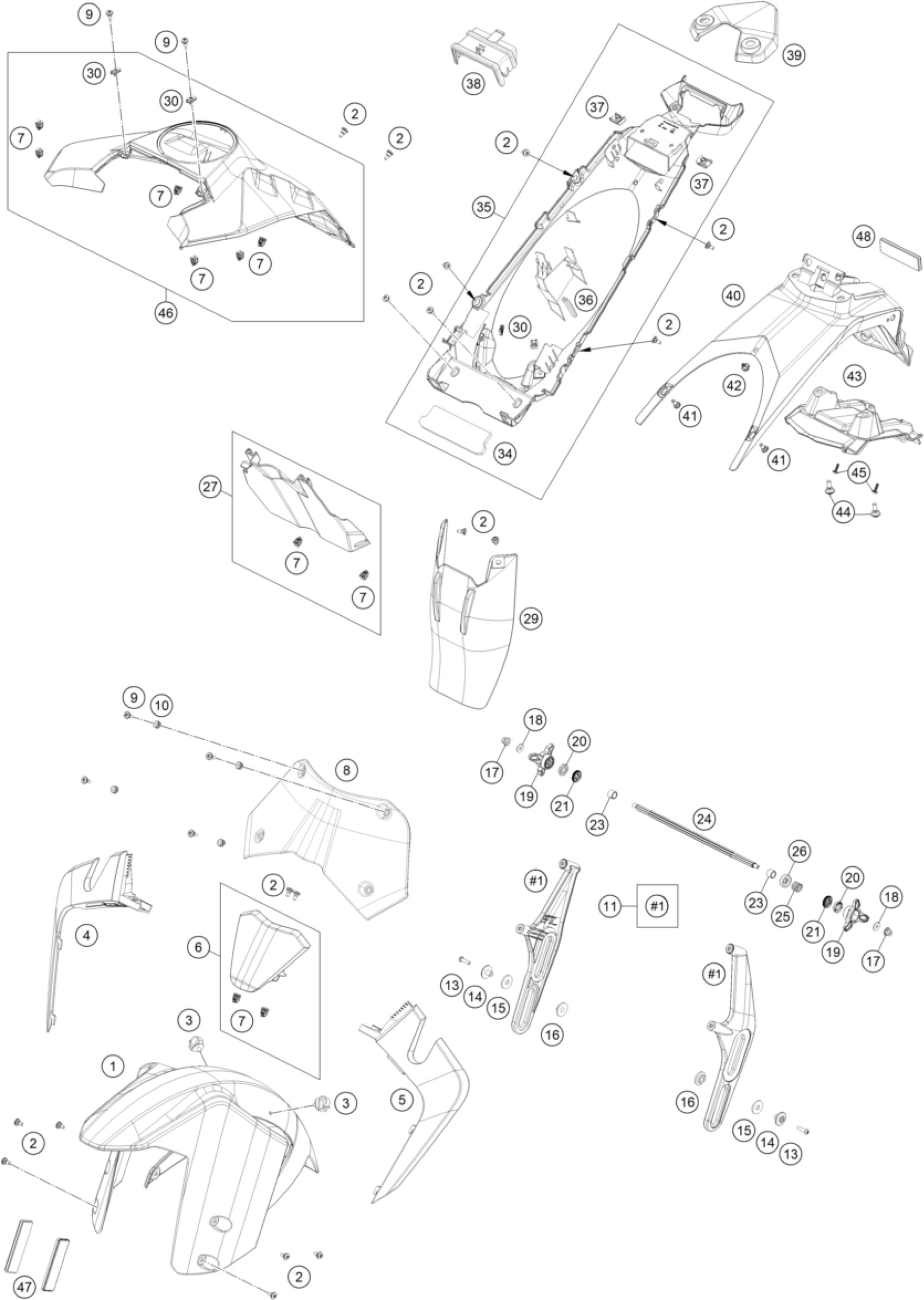

KTM 1290 SUPER ADVENTURE R 2021 MASK, FENDERS Diagram

Front fender

60308010000AB

$222.78

special screw M5x12

69008021160

$4.11

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

Headlight shroud right

61908002000AB

$26.77

Headlight shroud left

61908001000AB

$28.98

Headlight mask center cpl.

61908001055

$28.98

Bracket for side fairing

61908040030

$1.69

Windshield, low

61908208000

Unavailable

Special screw M5x14

60708008071

$2.05

rubber bush windshield fixatio

60708008070

$2.05

Holder Windshield

61908008052

$53.66

Lens head screw ISO 7380-M5X20

0738050202

$1.49

Collared bush

60708008055

$5.41

Washer D=24/T=2.5

60708008062

$2.05

Bearing sleeve

60708008052

$4.11

STOP NUT M6 DIN6926 A2-70

0926060000

$3.08

Washer DIN9021-A 6.4

0021060003

$2.05

Adjusting wheel

60708008053B2

$5.23

Windshield support rubber

60708008057

$11.77

GEAR 16TH ADJUSTMENT

60408008155

$8.41

Plain bearing

60708008064

$2.05

Shaft windshield adjustment

60708008154

$28.60

Spring windshield

60708008067

$10.65

Toothed washer, outer

61908008065

$5.23

Rear trim panel front cmpl.

61908019015

$21.67

SPLASH PROTECTION

60304050000

$14.58

clip nut M5

69008021080

$3.08

Lower rear panel cpl.

61908019033

$57.87

Edge protection 9.5x6.5x48

76003095048

$2.54

clip nut M6

54603048100

$4.11

Rear cover, preassembled

61908013033

$18.69

License plate holder

61908015100

$64.41

special screw M5x17

69008021060

$3.08

Spread rivet cmpl. 6.2mm

76503075000

$3.08

Licence plate holder support l

61908016000

$18.22

SCREW M6X20X5,5

83008100020

$3.08

EJOT PT screw K50x14

0081050141

$1.49

Fuel tank fairing cpl.

61908030033C1

$222.99

SIDE REFLECTOR YELLOW "CEV"

60012080100

$6.44

Reflector, red self-adhesive

61912080000

$20.84

Lower rear panel

61908019020

$10.56

Foam rubber 150x43x6

61908019030

Unavailable
