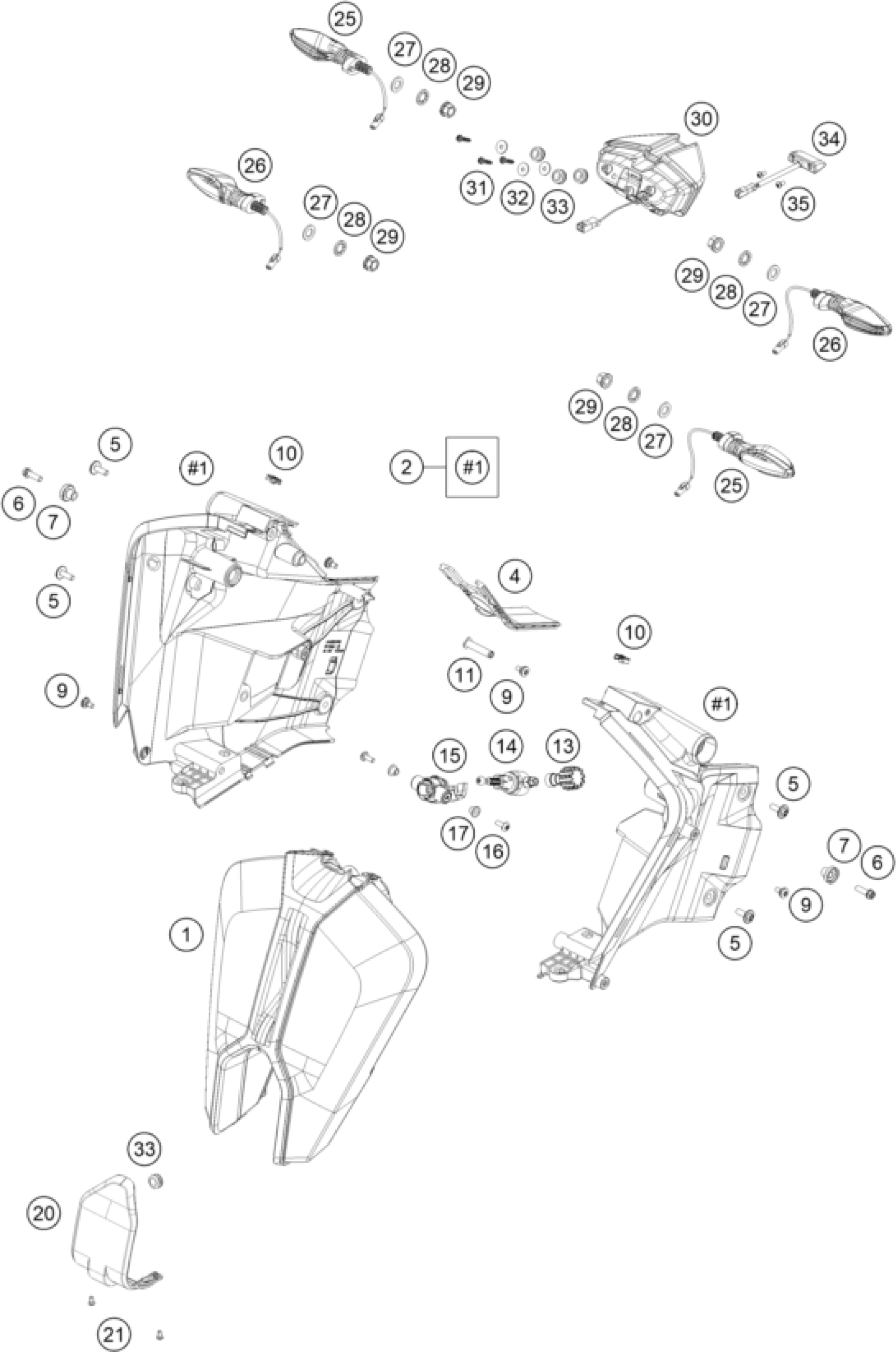

KTM 1290 SUPER ADVENTURE R 2021 LIGHTING SYSTEM Diagram

#

Description
Price

1

Headlight

61914001000

Unavailable

2

Mask support

61914010044

Unavailable

4

Power socket bracket

61914012000

Unavailable

5

special screw M6x18-8.8 ISA30

69014017000S

Unavailable

6

HH collar screw M6x20 TX30

0025060206

Unavailable

7

Plug-in element headlight

60714011060

Unavailable

9

special screw M5x12

69008021160

Unavailable

10

RANGE CHANGE METAL NUT M5 INOX

54603048600

Unavailable

11

Bushing, speedometer attachmen

61914010020

Unavailable

13

Thumbwheel headlight adjust.

60714023000

Unavailable

14

Adjuster cmpl.

60714020100

Unavailable

15

Headlight support

60714024100

Unavailable

16

Oval head screw M5x14 TX25

58605083014

Unavailable

17

Collar bushing 5.1x8x13x8 mm

60714010080

Unavailable

25

turn signal front left/rear ri

60314025000

Unavailable

26

turn signal front right/rear l

60314026000

Unavailable

27

Washer DIN0433-M10

0433100003

Unavailable

28

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

29

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

30

Tail light

63514040000

Unavailable

31

EJOT DELTA PT SCREW 45X12-Z

0081645121

Unavailable

32

SHIM 4,3X15X1,25MM GALVANIZED

61041088050

Unavailable

33

rubber grommet 9x11x16x8.5 mm

60006001022

Unavailable

34

License plate lighting

61914047000

Unavailable

35

Oval-head screw ISR M4x8-A2-07

0738010400800

Unavailable

20

Cover, without ACC

61914001050

Unavailable

21

Oval-head screw ISR M4x8-A2-07

0738010400800

Unavailable
