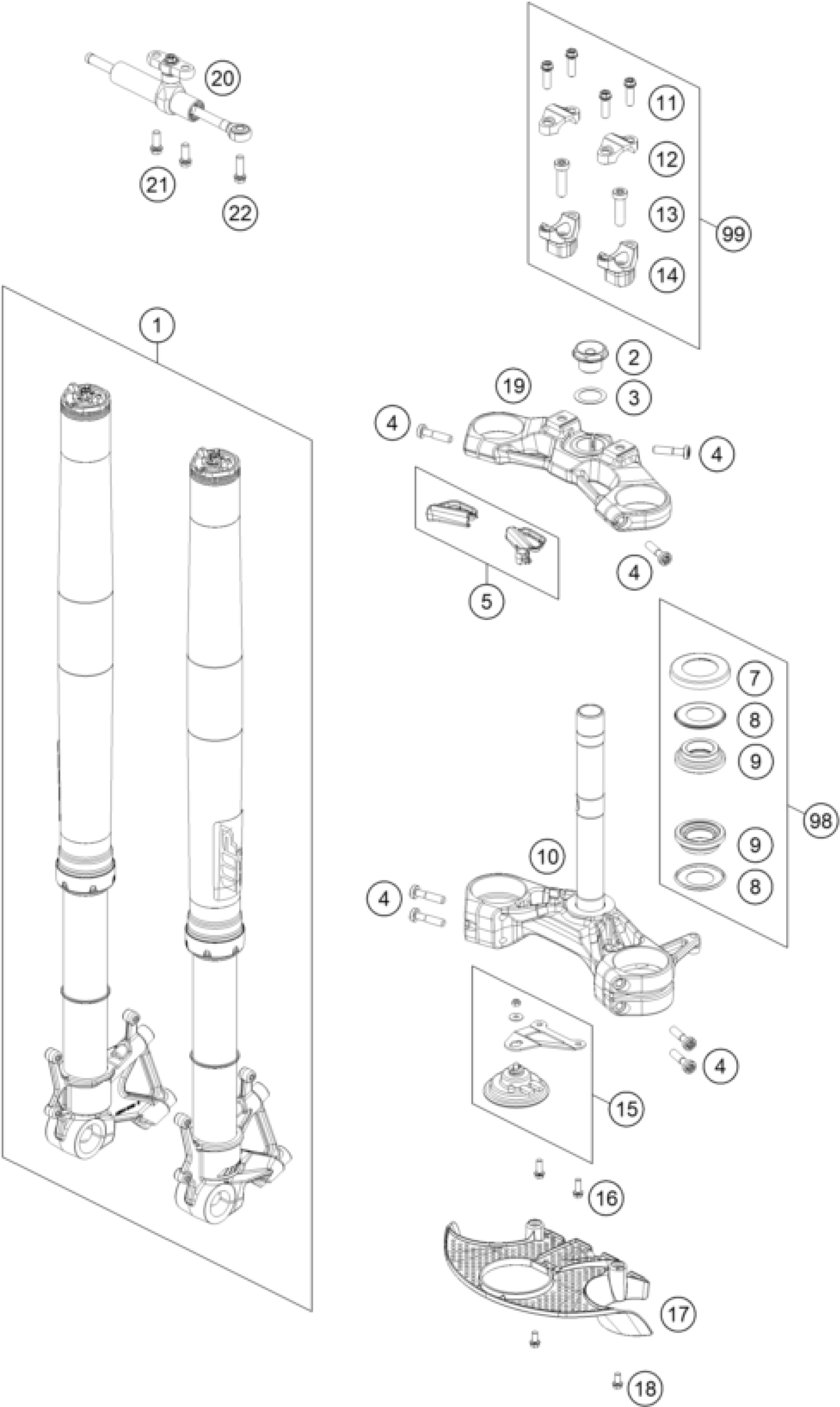

KTM 1290 SUPER ADVENTURE R 2021 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

Fork KTM 1290 Super Adventure

14188U2501

$2,572.92

2

Steering head screw

6900103600033

$25.80

3

thrust wash DIN0988-25x35x0,5

0988253505

$4.11

4

AH-COLLAR SCREW M8X35 ISA45

0035080356

$4.11

5

Triple clamp cable protection

61901034010

$21.12

7

PROT. RING STEER. HEAD BEARING

69001086100

$5.23

8

Stearing head gasket

69001084100

$5.23

9

STEERINGHEAD KPL.17

69001181000

$37.77

10

Bottom triple clamp cmpl. X=32

61901032032C1

$340.99

11

HH collar screw M8x25

0025080256

$2.05

12

HANDLEBAR CLAMP 28MM

7720103800030

$21.03

13

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

14

Handlebar mount D28mm-H42mm

5940103904230

$37.58

15

Horn cmpl.

61911060033

$37.02

16

HH collar screw M6x16 TX30

0025060166

$3.08

17

Triple clamp cover, bottom

61908024100

$24.77

18

HH collar screw M6x12 TX30

0025060126

$3.08

19

Top triple clamp, X=32 mm

61901034032C1

$164.36

20

STEERING DAMPER CPL.

16181N53ES

$173.43

21

HH collar screw M8x20 TX40 SL

0025080206S

$2.05

22

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08

98

Stearing head rep. Kit

69001181010

Unavailable

99

HANDLEBAR SUPPORT KIT D28mm/H4

00050000933

Unavailable
