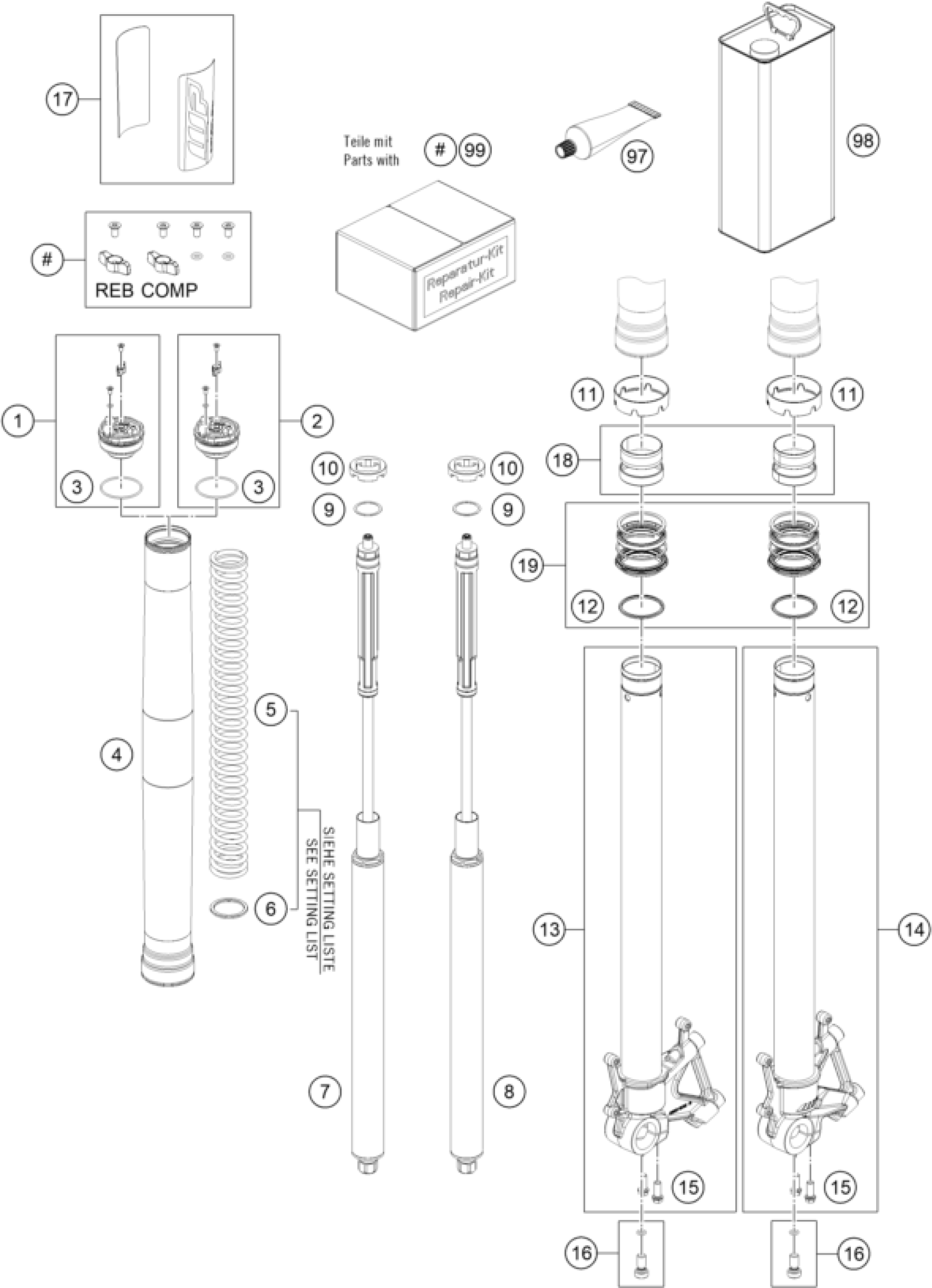

KTM 1290 SUPER ADVENTURE R 2021 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

screw cap M51x1,5 rebound cpl.

48602028S4

Unavailable

2

screw cap M51x1.5 compression

48602028S3

Unavailable

3

O-ring 46x2 NBR70 siliconized

48600048

Unavailable

4

fork outer tube 49.13x600 dt54

48602217

Unavailable

5

main spring (44) 6,5-400 fork

95010088S

Unavailable

6

Washer 35x43x2,5 plastic

48600456

Unavailable

6

Preload bush 35x43x3,5

48600457

Unavailable

6

Washer 35x43x1,5 plastic

48600458

Unavailable

9

Shim 27,5x33x0,3

48601702

Unavailable

10

spring support ring

48601922

Unavailable

11

Fork protection ring 60,1mm

48601986

Unavailable

12

Stroke indicator 48mm red

48602007

Unavailable

15

HH collar screw M8x20

0025080206

Unavailable

16

HS screw M10x252 cpl.

48602117S

Unavailable

17

sticker Xplor OC 100x46

52000281SET

Unavailable

18

Guide bushing set fork 48mm

R14047T

Unavailable

19

"Seal kit 48mm SKF black"

RP10012T

Unavailable

99

Adjuster kit screw cap

RP10021

Unavailable

97

Fuchs grease IPR (250g)

T14034

Unavailable

98

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

13

Axle clamp+ inner tube right c

48601057S2

Unavailable

14

Axle clamp+inner tube left cpl

48601057S1

Unavailable

7

Cartridge right cpl.

48602018S2

Unavailable

8

Cartridge left cpl.

48602018S1

Unavailable
