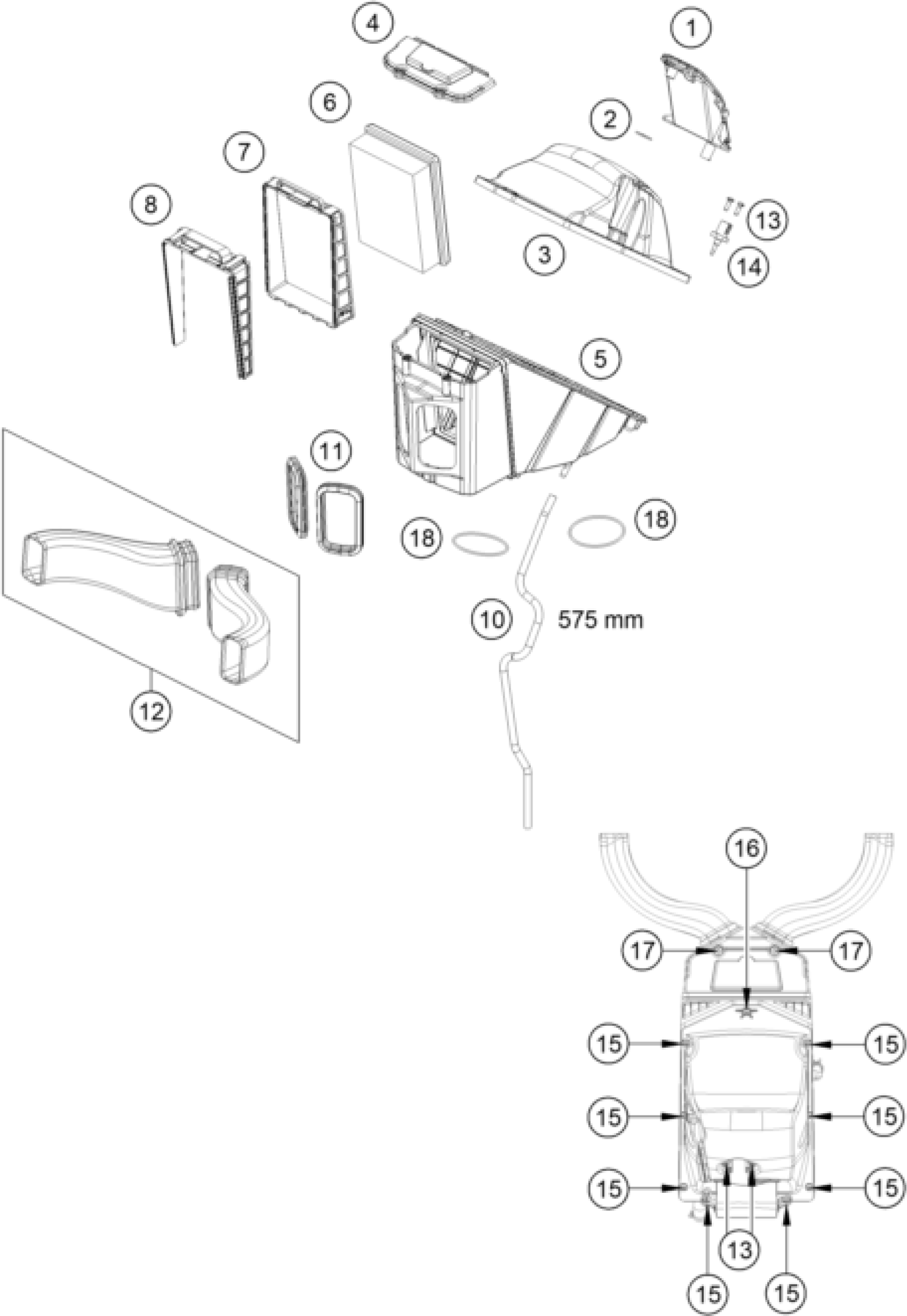

KTM 1290 SUPER ADVENTURE R 2021 AIR FILTER Diagram

#

Description
Price

1

Oil separator

61930088000

$26.17

2

O-RING 21X2

0770210020

$2.05

3

Air filter box cover top

61906002000

$31.88

4

Air filter box cover

61906001003

$8.59

5

Air filter box

61906001000

$80.21

6

Air filter

60706015000

$10.84

7

Filter clamp, frame

61906001004

$11.87

8

Filter clamp, wedge

61906001005

$12.05

10

HOSE EPA D=6/10 L=2000MM

78015019000

$62.64

11

Intake port gasket

61906040050

$5.23

12

Intake port le + ri

61906040044

$21.31

14

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

$23.74

13

EJOT PT SCREW K50X16 1451

0081050161

$1.49

15

EJOT Delta PT screw 60x30

0000810603000

$1.49

16

EJOT Delta PT screw 60x20

0000810602000

$1.49

17

special screw M5x12

69008021160

$4.11

18

O-RING 66X2,5 FKM

0770066025

$6.35
