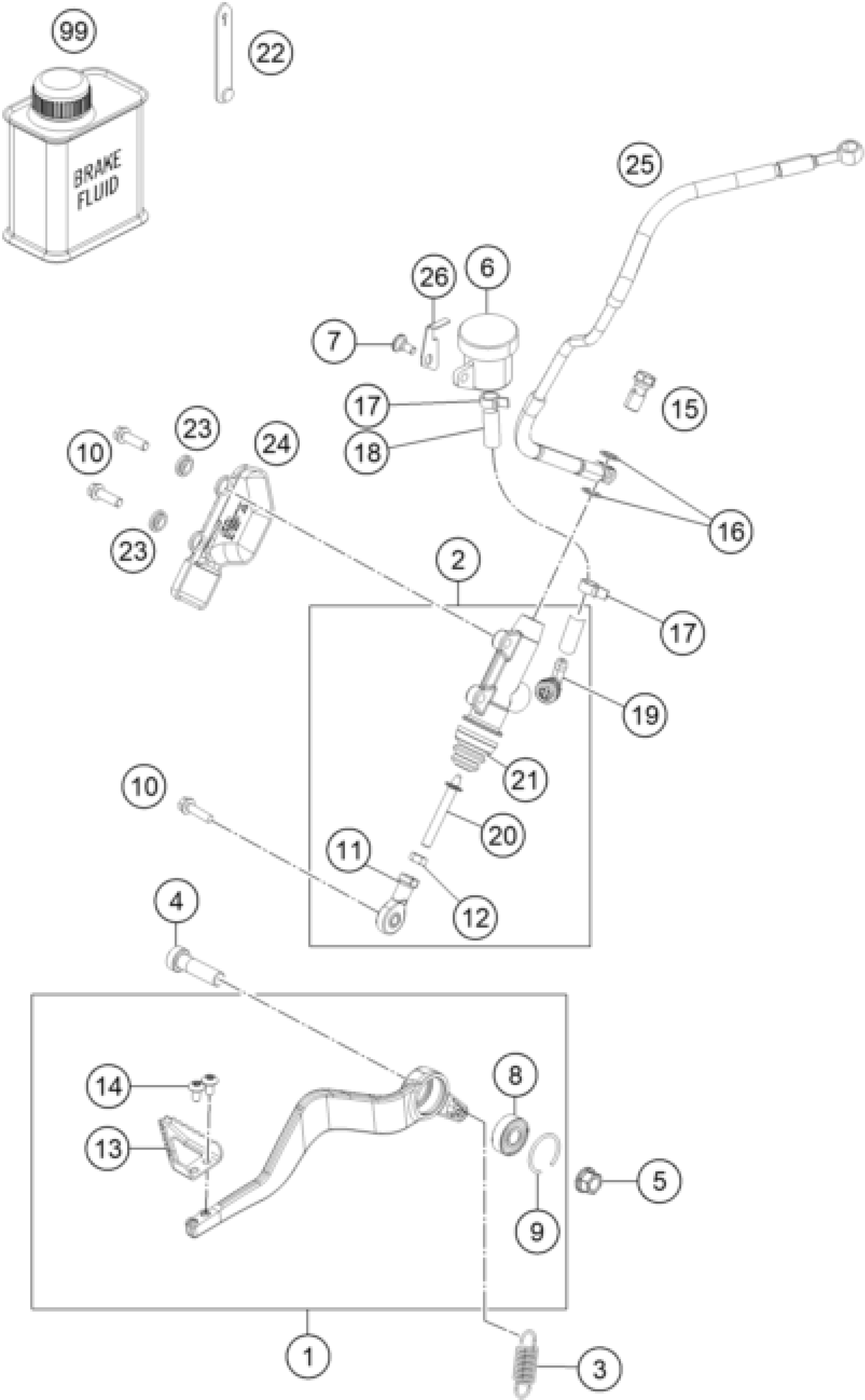

KTM 1290 Super Adventure R 2020 REAR BRAKE CONTROL Diagram

FOOT BRAKE LEVER KPL.

6031305004433S

$119.48

REAR BRAKE CONTROL

6031306000030

$229.91

Return spring for brake lever

54603062200

$6.54

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

COLLAR NUT M10 WS=13

54630044000

$1.49

BRAKE FLUID RESERVOIR '89

54513030044

$20.56

Screw, reservoir

69013099150

$2.05

deep groove ball bearing SKF 6

0625060002

$12.33

round wire snap ring DIN 7993

0993026500

$3.08

HH collar screw M6x20 TX30

0025060206

$3.08

SWIVEL HEAD M6 FOOT BRAKE LEV.

54603069000

$37.20

Hex. nut DIN 934 M6

0934060003

$1.49

STEP PLATE FOOT BRAKE LEVER

60313051000

$16.17

SCREW TORX M5X10

78105081010

$2.05

banjo bolt M10x1x19.5

62113020100

$8.78

sealing ring DIN 7603 10x14x1

0603100141

$2.05

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

HOSE FOR RESERVOIR 6X1,5

69013069001

$16.35

ANGLE PIECE

54513155000

$14.58

PUSH ROD CPL.

60313056044

$69.93

RUBBER SLEEVE

54513151000

$17.48

RUBBER CABLE TIE 45MM 03

60011093045

$3.08

COLLAR BUSHING

50213161000

$3.08

BRAKE CYL. PROTECTOR ''BREMBO'

54513038000

$7.00

BRAKE HOSE REAR BRAKE CONTROL

60342001000

$81.24

Brake fluid DOT5.1 0,25L

00062030000

$12.52

Lock washer, brake fluid reser

61713069020

$11.40
