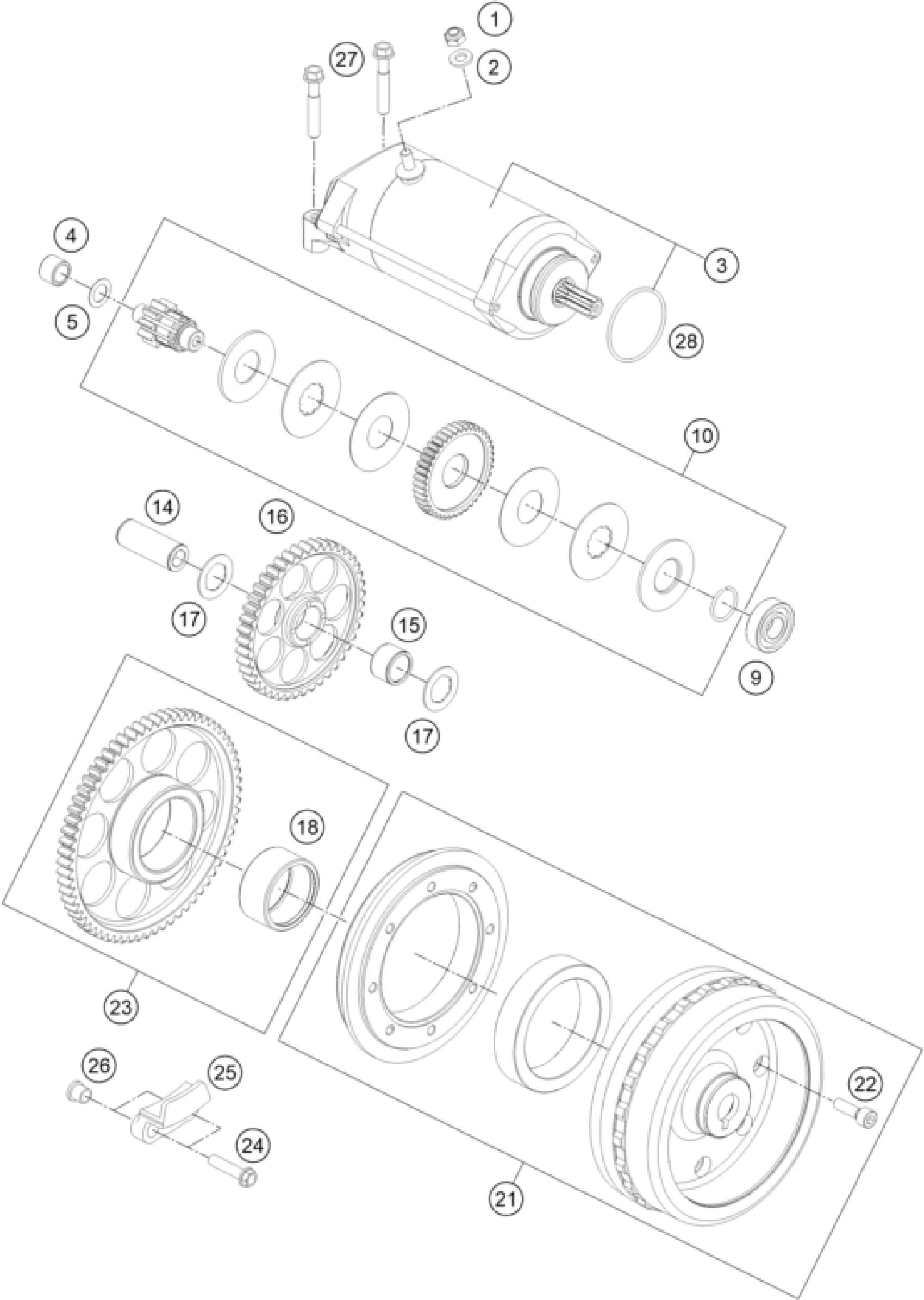

KTM 1290 Super Adventure R 2020 ELECTRIC STARTER Diagram

#

Description
Price

1

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

2

WASHER DIN0125-A 6,4

0125060003

Unavailable

3

STARTER MOTOR

60440001000

Unavailable

4

needle sleeve HK 1010 10x14x10

0618101410

Unavailable

5

washer 10x16x0.5

60038007010

Unavailable

9

deep groove ball bearing 6001.

0625060016

Unavailable

10

Torque limiter 10/55 cmpl.

60340117200

Unavailable

14

BEARING BOLT 15X39 08

61230058050

Unavailable

15

needle roller and cage assy. K

0405151913

Unavailable

16

IDLER SHAFT 43T

60340122000

Unavailable

17

STOP DISK 15,2X25X1

61230057060

Unavailable

18

NEEDLE BUSH HK3520 35/42/20

0618354220

Unavailable

21

ROTOR CPL.

60439005000

Unavailable

22

AH SCREW DIN 912 M6X20

0912060206

Unavailable

23

free wheel gear cpl. 66th

60340020100

Unavailable

24

SK-BUNDSCHRAUBE M6X25 ISA30

0025060256S

Unavailable

25

FREEWHEEL HOLDER 03

60040027000

Unavailable

26

SUPPORTING SLEEVE 03

60040027050

Unavailable

27

HH COLLAR SCREW M6X30 INOX

0025060300

Unavailable

28

O-RING 33,75X2,00

0770033020

Unavailable
