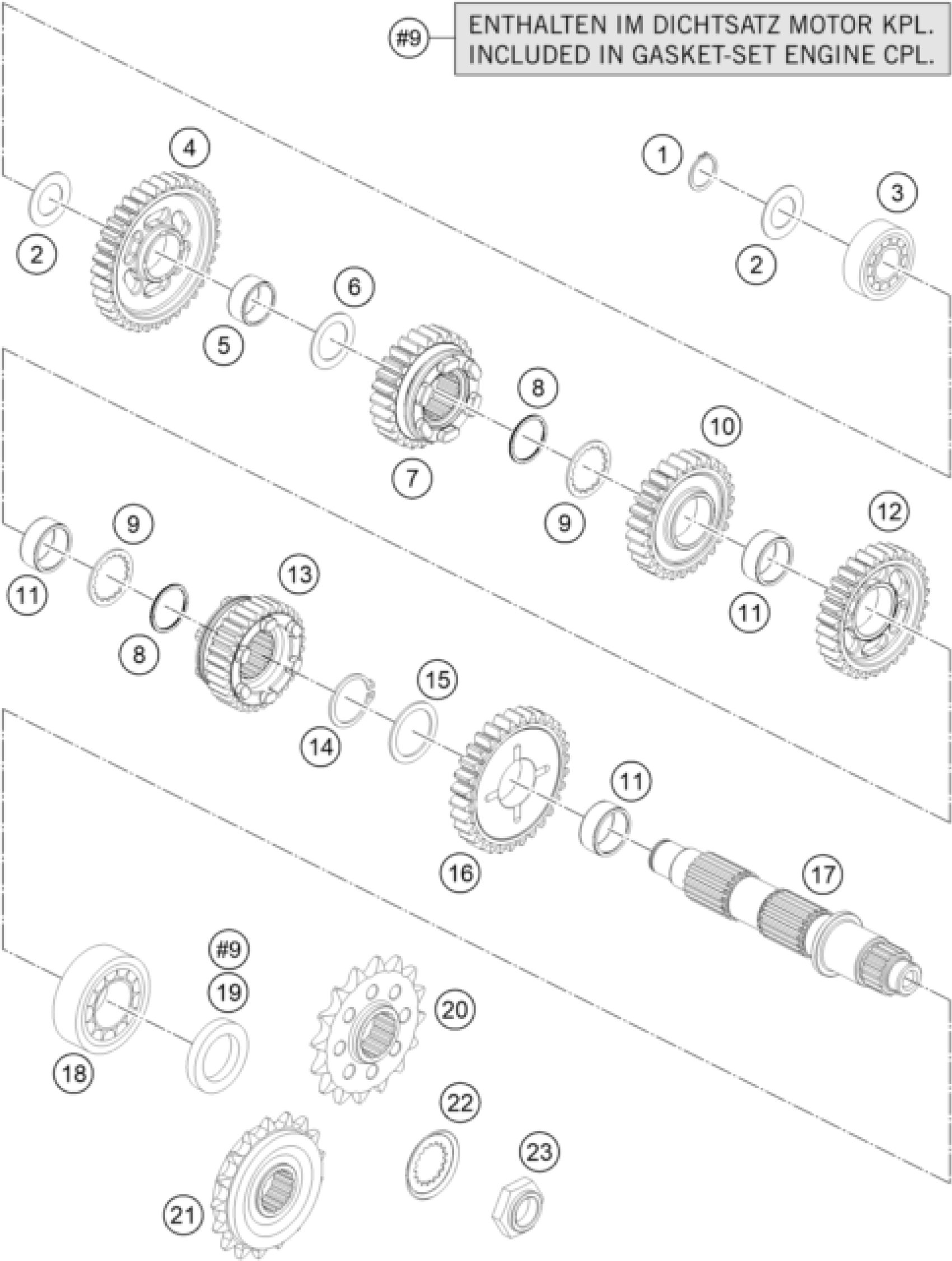

KTM 1290 Super Adventure R 2019 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

CIRCLIP DIN471 20X1,2

0471200120

Unavailable

2

STOP DISK 20,2 X 34 X 1

60033043000

Unavailable

3

BALL BEARING 6204 J1 C3

0625062043

Unavailable

4

IDLER GEAR 1. GEAR

60333011000

Unavailable

5

NEEDLE BEAR. K 24X28X13 TN

0405242813

Unavailable

6

STOP DISK 24,3/35,75/1

60033044000

Unavailable

7

SLIDING GEAR 5.GEAR

60333015000

Unavailable

8

TWISTED CIRCLIP D29

0471029000

Unavailable

9

STOP DISK 27/36/1,5

61233045000

Unavailable

10

IDLER GEAR 4. GEAR

60333014000

Unavailable

11

NEEDLE BEAR. K 26-31-13

0405263113

Unavailable

12

IDLER GEAR 3. GEAR

60333013000

Unavailable

13

SLIDING GEAR 6. GEAR

60433016000

Unavailable

14

CIRCLIP DIN0471-30X1,5 NIRO

0471300151

Unavailable

15

STOP DISK 29,9/39/1,5

61233046000

Unavailable

16

IDLER GEAR 2. GEAR

60333012000

Unavailable

17

COUNTERSHAFT

60333010000

Unavailable

18

CYL.ROLLER BEAR.NJ206 ET2XCS46

50330082000

Unavailable

19

SH.SEAL RING 30X47X7 BSL VITON

0760304772

Unavailable

20

CHAIN SPROCKET 17-T 03

60033029017

Unavailable

21

Chain sprocket 17-t, damped 0

60033129017

Unavailable

22

Securing plate toothed

60033034000

Unavailable

23

Hexagon nut M20x1.5 WS32

60033035000

Unavailable
