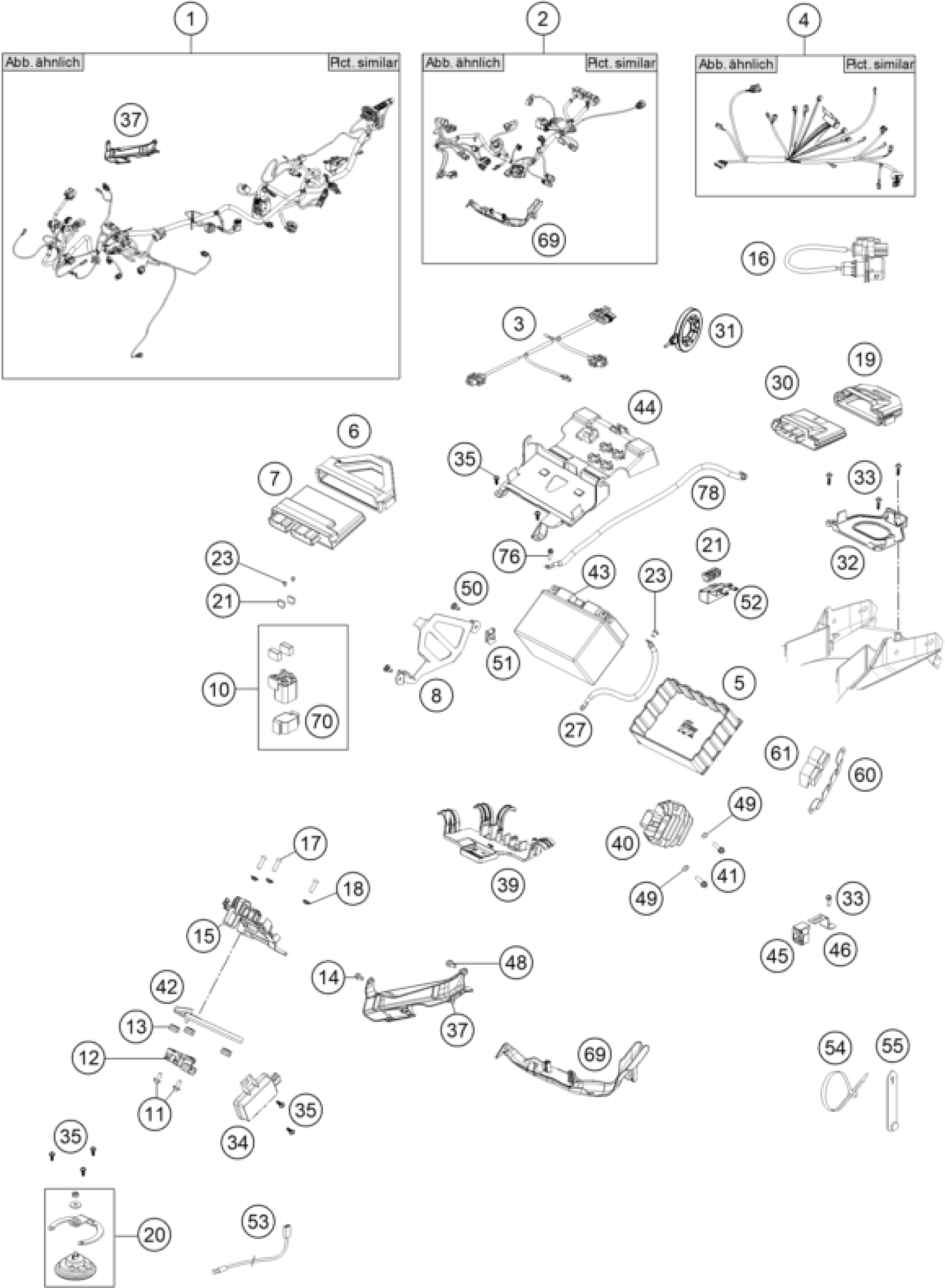

KTM 1290 SUPER ADVENTURE R 2017 WIRING HARNESS Diagram

#

Description
Price

1

Main wiring harness R cpl.

60711175033

Unavailable

2

Engine harness

60711085100

Unavailable

3

WIRING HARNESS HEAD LIGHT

60311079000

Unavailable

4

REAR WIRING HARNESS

60311076000

Unavailable

5

Battery Housing

60311053050

Unavailable

6

ECU RUBBER BRACKET

60341031050

Unavailable

7

Control unit EFI

61341031300

Unavailable

8

BRACKET ELECTRIC

60311057050

Unavailable

10

Starter reley 12V 99

58211058000

Unavailable

11

HH collar screw M6x13 TX30

0024060136

Unavailable

12

SLOPING POSITIONS SENSOR

60342090000

Unavailable

13

DAMP. COMPONENT ABS MODUL

62142041000

Unavailable

14

special screw M5x12

69008021160

Unavailable

15

Connector support front

60711048000

Unavailable

16

Wiring harness

60411078050

Unavailable

17

FLAT HEAD SCREW ISO7380 M6X20

0738060201

Unavailable

18

COLLAR BUSHING

76508043050

Unavailable

19

Rubber band

60711033050

Unavailable

20

Direct current horn complete

60711060033

Unavailable

21

FUSE 40 A

58011109140

Unavailable

21

Plug-in fuse, big 30A

58011109130

Unavailable

21

FUSE 25 A

58011109125

Unavailable

21

FUSE 15 A

58011109115

Unavailable

21

Plug-in fuse, big 10A

58011109110

Unavailable

23

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

27

BATTERIE CABLE

60311059050

Unavailable

30

Control unit MCU 3.0

60711033000

Unavailable

31

Antenna keyless

69011168000

Unavailable

32

Support

60708019010

Unavailable

33

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

34

RECEIVER AIR PRESSURE SENSOR

60312032000

Unavailable

35

EJOT PT screw K50x12

0081050121

Unavailable

37

CABLE CHANNEL R/S

60311047000

Unavailable

39

Plug board rear

60311049200

Unavailable

40

VOLTAGE REGULATOR

60311034000

Unavailable

41

HH collar screw M6x20 TX30

0025060206

Unavailable

42

BRACKET SLOPING POSITIONS SENS

60342090040

Unavailable

43

BATTERY 12V/11AH 03

60011053000

Unavailable

44

BATTERIE COVER

60308017000

Unavailable

45

RUBBER SUPP. PRESSURE SENS. 05

61041085050

Unavailable

46

BRACKET PRESSURE SENSOR

60311040100

Unavailable

48

COLLAR SCREW M6X12 TX

0023060123

Unavailable

49

PLASTIC WASHER 03

60007020040

Unavailable

50

HH collar screw M5x12 TX30

0025050126

Unavailable

51

RANGE CHANGE METAL NUT M5

54603048200

Unavailable

52

rubber cover fuse holder

60711087050

Unavailable

53

Temperatur sensor

61111018100

Unavailable

54

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

54

Cable tie 200/4.6mm black

44011076200

Unavailable

54

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

55

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

55

RUBBER CABLE TIE 60MM 03

60011093060

Unavailable

55

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

60

Retaining bracket

60711057050

Unavailable

61

RELAY CM1A-R-12V-H80 07

61111057000

Unavailable

69

CABLE CHANNEL L/S

60311046000

Unavailable

78

GROUND CABLE

60311097000

Unavailable

76

HH collar screw M5x16 TX30

0025050166

Unavailable

70

BRACKET RUBBER F.STARTRELAY 07

58211058050

Unavailable
