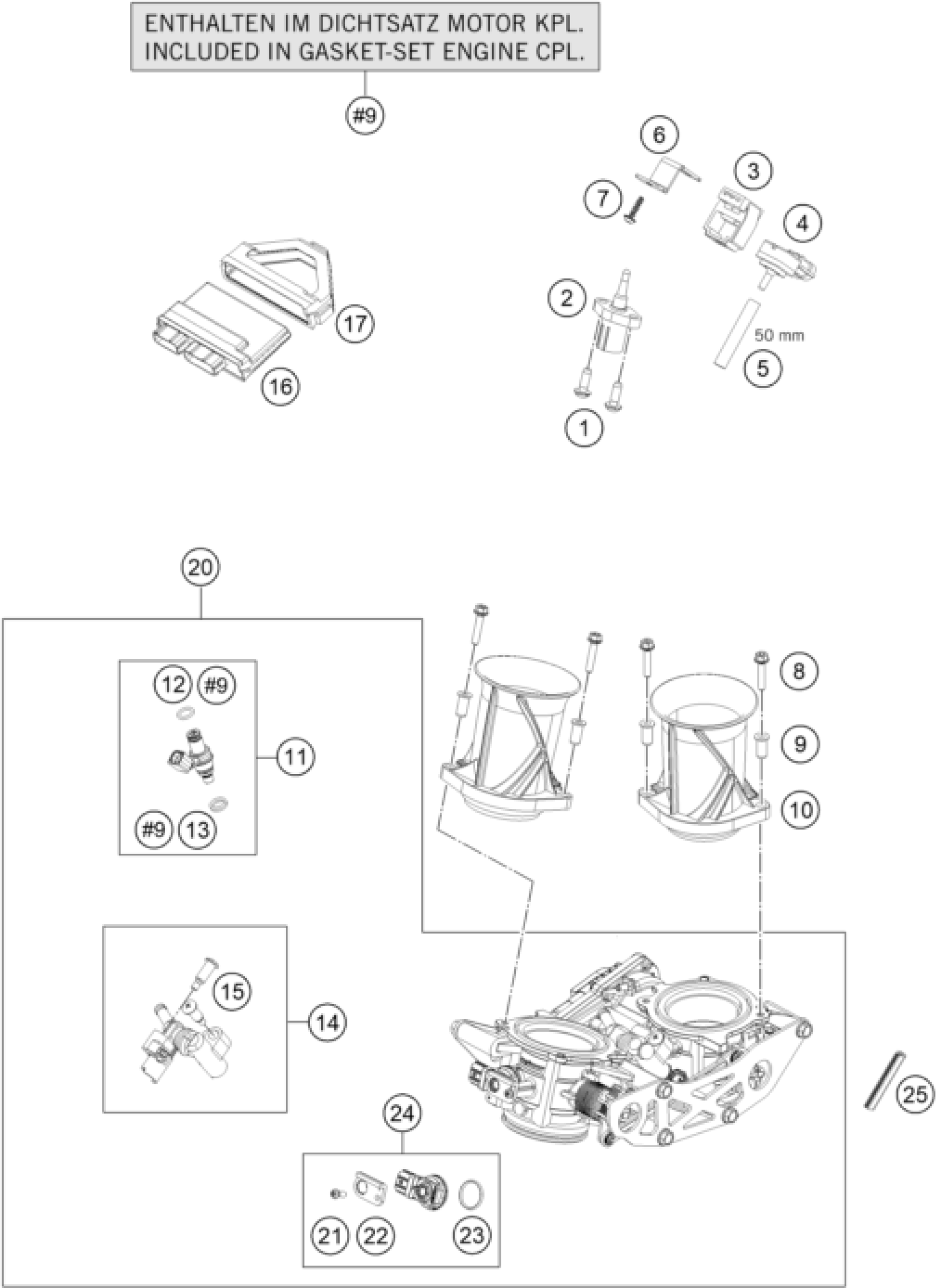

KTM 1290 SUPER ADVENTURE R 2017 THROTTLE BODY Diagram

#

Description
Price

1

EJOT PT SCREW K50X16 1451

0081050161

$1.49

2

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

$23.74

3

RUBBER SUPP. PRESSURE SENS. 06

61041085150

$5.23

4

PRESSURE SENSOR 06

61041085100

$144.36

5

HOSE 3,2X8,5 PER METER

60031098001

Unavailable

6

BRACKET PRESSURE SENSOR

60311040100

$11.30

7

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

8

HH collar screw M5x25 TX30

0025050256S

$1.49

9

Bushing intake funnel

60306042010

$4.11

10

INTAKE TRUMPET LENGTH 100

60341040100

$16.54

11

FUEL INJECTOR CPL.

60341023044

$187.46

12

O-RING

60341023020

$7.94

13

SEAL RING

75041023010

$11.49

14

FUEL PIPE CPL.

60341013044

$84.42

15

SCREW SHOULDER

75041013060

$6.72

16

Control unit EFI

61341031300

$625.23

17

ECU RUBBER BRACKET

60341031050

$17.76

20

THROTTLE BODY

60341001000

$1,184.64

21

SCREW WASHER

75041085030

$3.08

22

PLATE, STAY

75041085020

$5.23

23

O-RING

75041085010

$6.07

24

MAP SENSOR CPL. 07

75041085044

$179.98

25

EDGE PROTECTOR L=45MM 05

61011055045

$3.08
