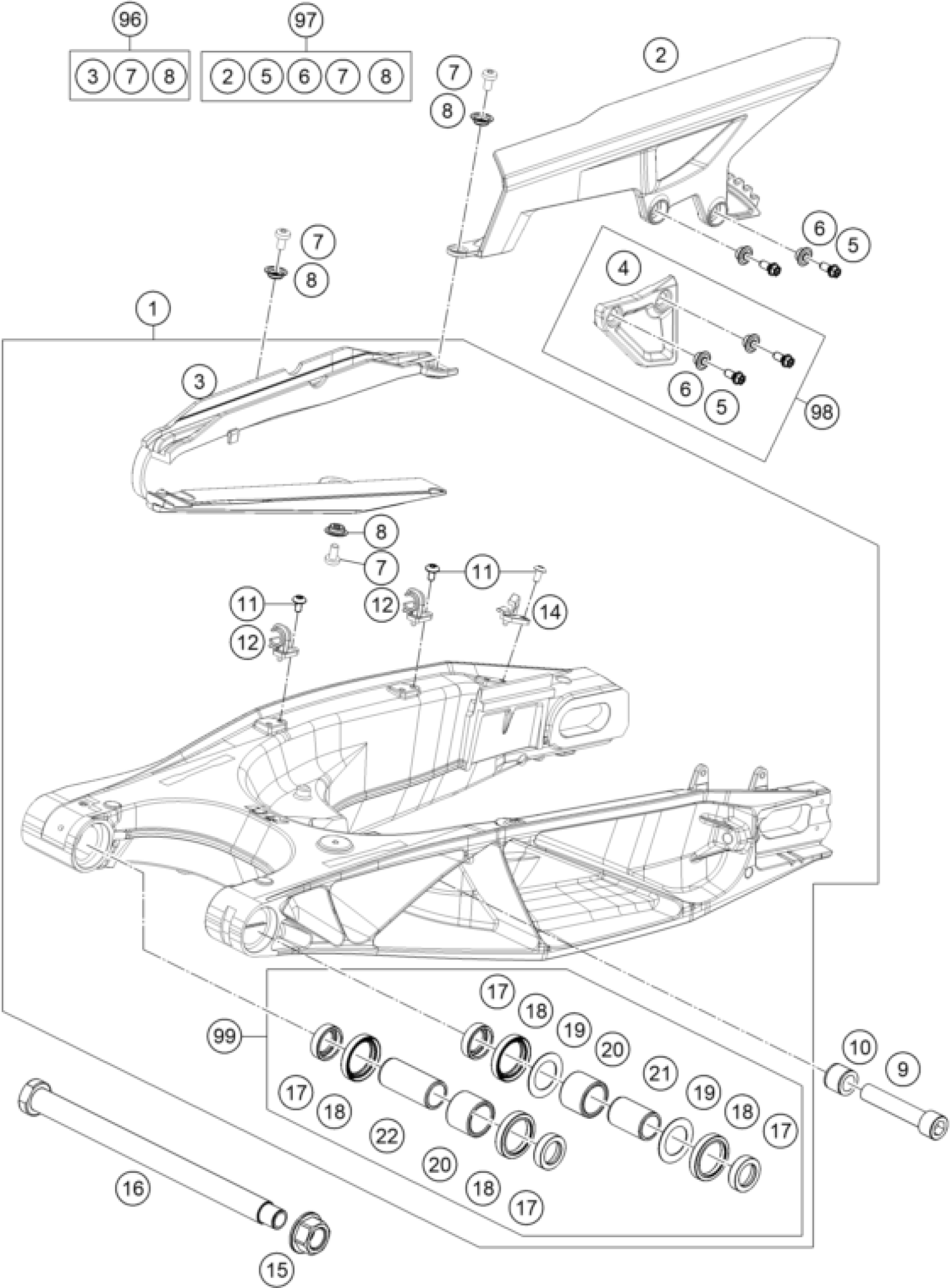

KTM 1290 SUPER ADVENTURE R 2017 SWING ARM Diagram

#

Description
Price

1

SWING ARM CPL.

6040403004433

$614.75

2

CHAIN GUARD

60304061000

$32.44

3

CHAIN SLIDING GUARD

60304066000

$36.92

4

CHAIN GUIDE

60304070000

$16.17

5

HH collar screw M6x16 TX30

0025060166

$3.08

6

BUSH FOR SPOILER 6X11X16X7,5

50308053000

$5.70

7

INT. TORX OVAL HEAD M 5X10 8.8

0018050103

$1.49

8

BUSH FOR CHAINSLIDER GUARD 02

46104066050

$8.31

9

SCREW M14X1,5 L=73MM 03

60004017000

$5.23

10

BUSHING MONOSHOCK SOCKET 05

60004030151

$15.89

11

SCREW TORX M5X10

78105081010

$2.05

12

RET. CLAMP F. BRAKE HOSE

60104042000

$4.11

14

CABLE SUPPORT SWING ARM 06

60142026000

$4.11

15

Collar nut M19X1.5 SW=27MM

60004038200

$17.94

16

SWING ARM BOLT

69004037244

$73.76

17

Bucket f. shaft seal ring 03

60004034000

$8.03

18

Radial shaft seal 30X40X7

0760304073

$4.11

19

Stop disk 03

60004033000

$2.05

20

NEEDLE BUSH HK2526B 03

60004031000

$10.65

21

INNER RING JR20X25X38,5 03

60004032000

$18.13

22

Inner ring JR 20X25X56.5

69004032000

$36.08

96

CHAIN GUARD KIT 13-14

60304066010

Unavailable

97

CHAIN PROTECTION KIT 13-14

60304060010

Unavailable

98

CHAIN GUIDE KIT 1190 ADV

60304070010

Unavailable

99

swingarm rep. kit

69004230010

Unavailable
