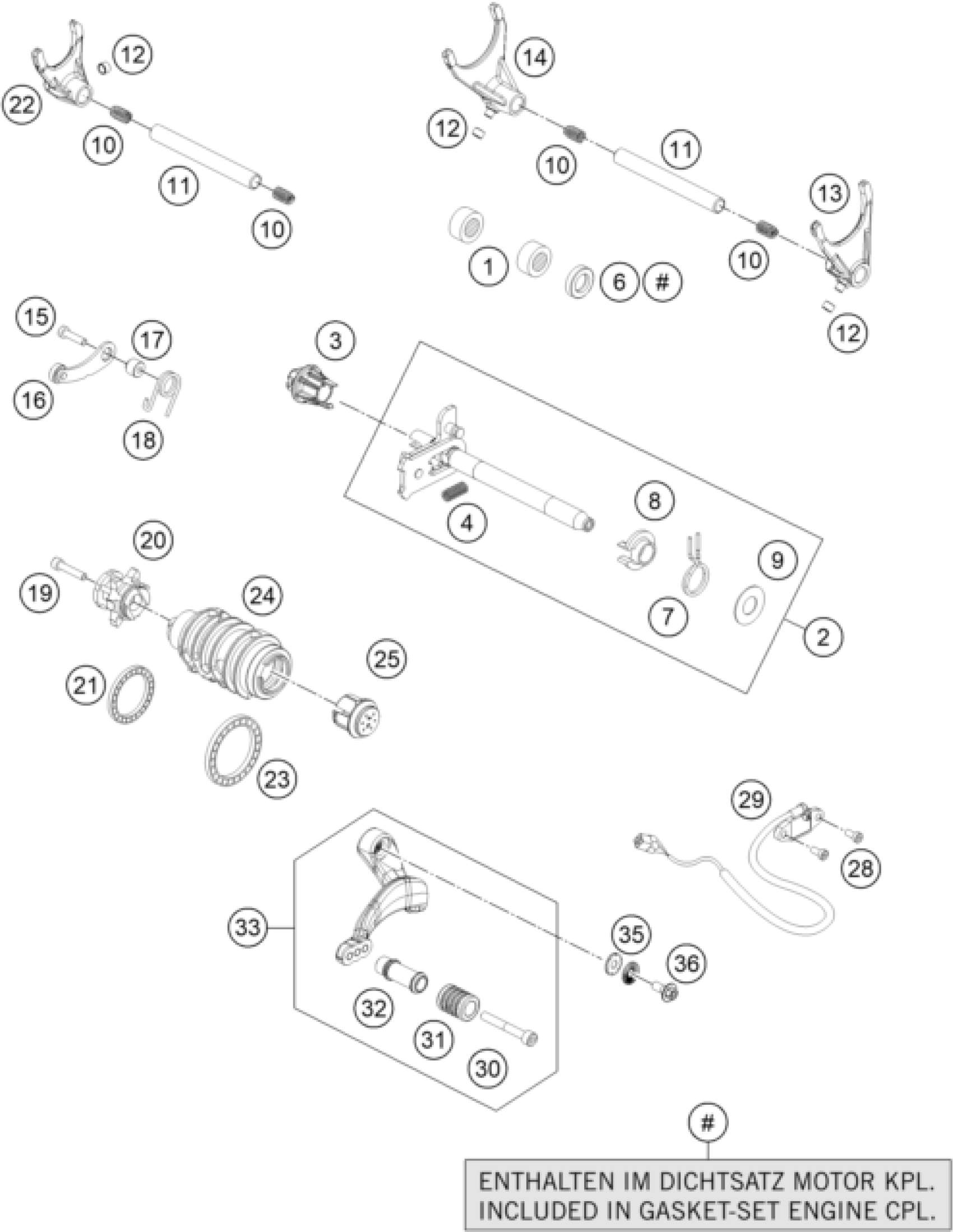

KTM 1290 SUPER ADVENTURE R 2017 SHIFTING MECHANISM Diagram

#

Description
Price

1

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

2

SHIFT SHAFT CPL.

61434005044

Unavailable

3

MAGNET HOLDER

61434050000

Unavailable

4

TENSIONING SPRING 0,8MM

56534013100

Unavailable

6

radial shaft seal 14x24x6 B

0760142460

Unavailable

7

RETURN SPRING 2.3 MM

61434014000

Unavailable

8

SPRING GUIDE

54634020000

Unavailable

9

STOP DISK 14X30X1

54634050000

Unavailable

10

PRESSURE SPRING 0,9MM

58038023200

Unavailable

11

SHIFT RAIL 11,8X105MM

59034020000

Unavailable

12

SHIFTING ROLLER 6X8X5,2

50334018100

Unavailable

13

SHIFT FORK 2-3 GEAR

61234002100

Unavailable

14

SHIFTING FORK 08

61234001000

Unavailable

15

HH collar screw M6x20 TX30

0024060206S

Unavailable

16

LOCKING LEVER CPL.

61434024000

Unavailable

17

SLEEVE FOR LOCKING LEVER 07

75034052000

Unavailable

18

SPRING - LOCKING LEVER

61234023000

Unavailable

19

Hexagon socket screw, DIN0912-

0912060309S

Unavailable

20

SHIFT LOCATING DRUM CPL.

61434015000

Unavailable

21

BALL BEARING 61805 C3

0625618050

Unavailable

22

SHIFT FORK 5-6 GEAR

61234003200

Unavailable

23

GROOVED BALL BEARING 6808 JRC3

0625068080

Unavailable

24

SHIFTING DRUM 6G

60434012001

Unavailable

25

Magnet bracket cmpl.

79234012020

Unavailable

28

CYL. SCREW DIN6912 M5X14 8.8

0984050143S

Unavailable

29

GEAR POSITION SENSOR

60411023000

Unavailable

32

GEAR LEVER

69034032100

Unavailable

35

PAIR NORDLOCK WASHER M6

50233041500

Unavailable

36

HH collar screw M6x20 TX30

0024060206S

Unavailable

33

Gearshift lever

60734031044

Unavailable

31

RUBBER FOR SHIFT LEVER 05

61034035000

Unavailable

30

AH SCREW DIN0912-M 6X45

0912060453

Unavailable
