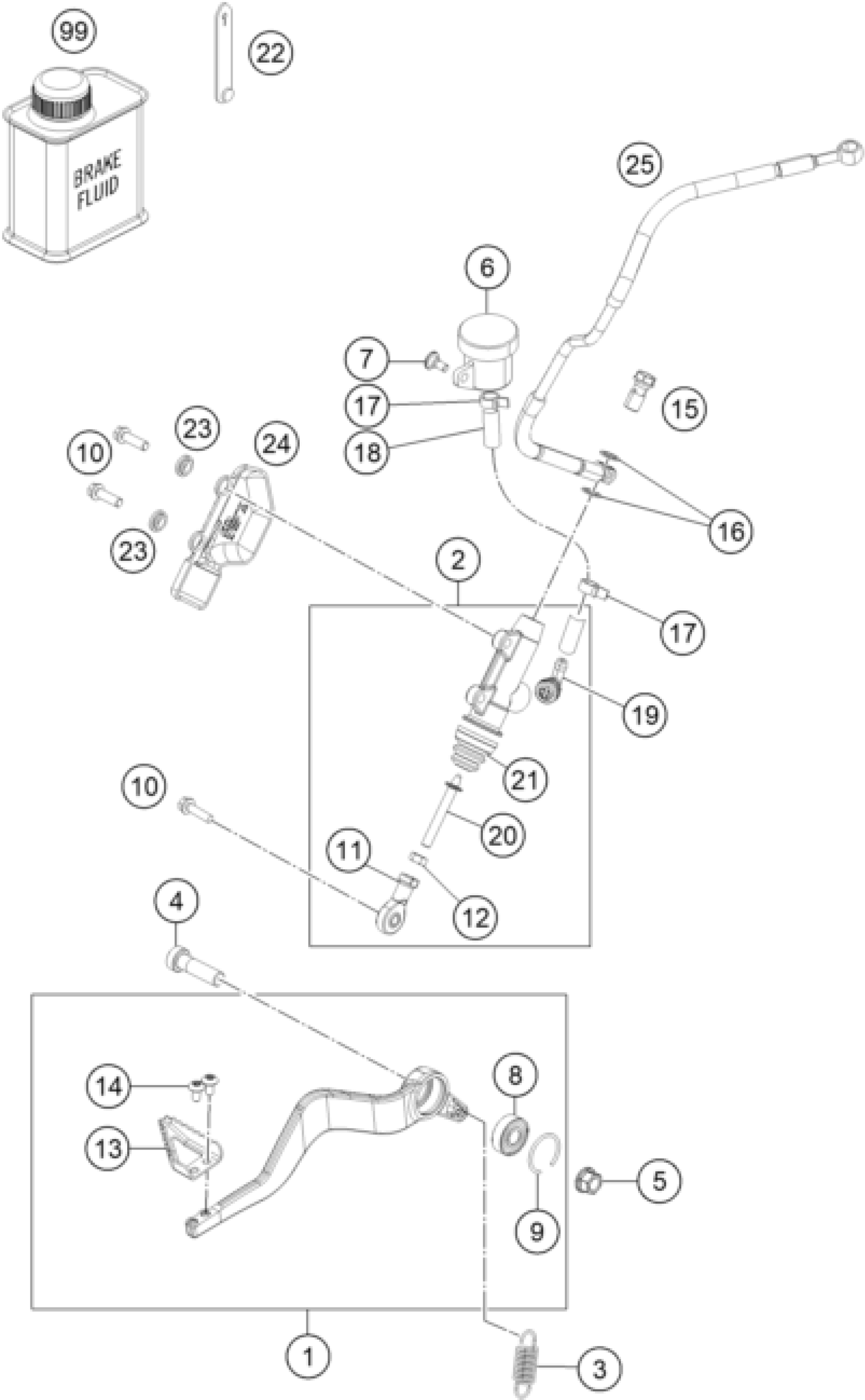

KTM 1290 SUPER ADVENTURE R 2017 REAR BRAKE CONTROL Diagram

#

Description
Price

1

FOOT BRAKE LEVER KPL.

6031305004433S

$119.48

2

REAR BRAKE CONTROL

6031306000030

$229.91

3

RETURN SPRING FOR BRAKE LEVER

54603062100

$6.54

4

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

5

COLLAR NUT M10 WS=13

54630044000

$1.49

6

BRAKE FLUID RESERVOIR '89

54513030044

$20.56

7

Screw for expansion tank

69013099050

$4.11

8

deep groove ball bearing SKF 6

0625060002

$12.33

9

round wire snap ring DIN 7993

0993026500

$3.08

10

HH collar screw M6x20 TX30

0025060206

$3.08

11

SWIVEL HEAD M6 FOOT BRAKE LEV.

54603069000

$37.20

12

Hex. nut DIN 934 M6

0934060003

$1.49

13

STEP PLATE FOOT BRAKE LEVER

60313051000

$16.17

14

SCREW TORX M5X10

78105081010

$2.05

15

banjo bolt M10x1x19.5

62113020100

$8.78

16

sealing ring DIN 7603 10x14x1

0603100141

$2.05

17

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

18

HOSE FOR RESERVOIR 6X1,5

69013069001

$16.35

19

ANGLE PIECE

54513155000

$14.58

20

PUSH ROD CPL.

60313056044

$69.93

21

RUBBER SLEEVE

54513151000

$17.48

22

RUBBER CABLE TIE 45MM 03

60011093045

$3.08

99

Brake fluid DOT5.1 0,25L

00062030000

$12.52

23

COLLAR BUSHING

50213161000

$3.08

24

BRAKE CYL. PROTECTOR ''BREMBO'

54513038000

$7.00

25

BRAKE HOSE REAR BRAKE CONTROL

60342001000

$81.24
