Description

Price

1

CARBON CANISTER

75015001200

$66.66

2

VIBRATION DAMPER DIGITALBOX 03

60039030000

$3.08

3

EVAP valve

76015015000

$254.78

4

Support

60715002000

$41.51

5

Hose

60715020033

$47.58

6

HOSE CONNECTION STRAIGHT

69015019010

$5.23

7

HOSE PURGE VALVE

61415021000

$25.05

8

HOSE EPA D=6/10 L=2000MM

78015019000

$62.64

9

T-connector TS-6 03

60015022000

$5.98

10

HH collar screw M6x12 TX30

0025060126

$3.08

11

clip nut M6

54603048100

$4.11

12

EJOT PT SCREW K50X16 1451

0081050161

$1.49

13

PREFORMED HOSE 6X10 FPM

61315022000

$10.84

14

Y-CONNECTOR YS 6-10-6

61315028100

$8.41

15

PLUG D=10

61315026000

$21.87

16

YDNAC-clamp 10173 (16MM)

58431082100

$1.49

17

HOSE EPA D=10/16 L=2000MM

78015119000

$244.12

18

RUBBER CABLE TIE 75MM 03

60011093075

$5.23

19

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

20

CLAMP YDNAC 10096F (9,6MM)

59007017000

$2.05

21

washer DIN 9021 A - 5.3

0021050003

$1.49

22

Wiring harness

60411078050

$37.95

30

Hose tank - ACF

60715023000

$54.22

40

Hose purge valve - ACF

60715024000

$48.99

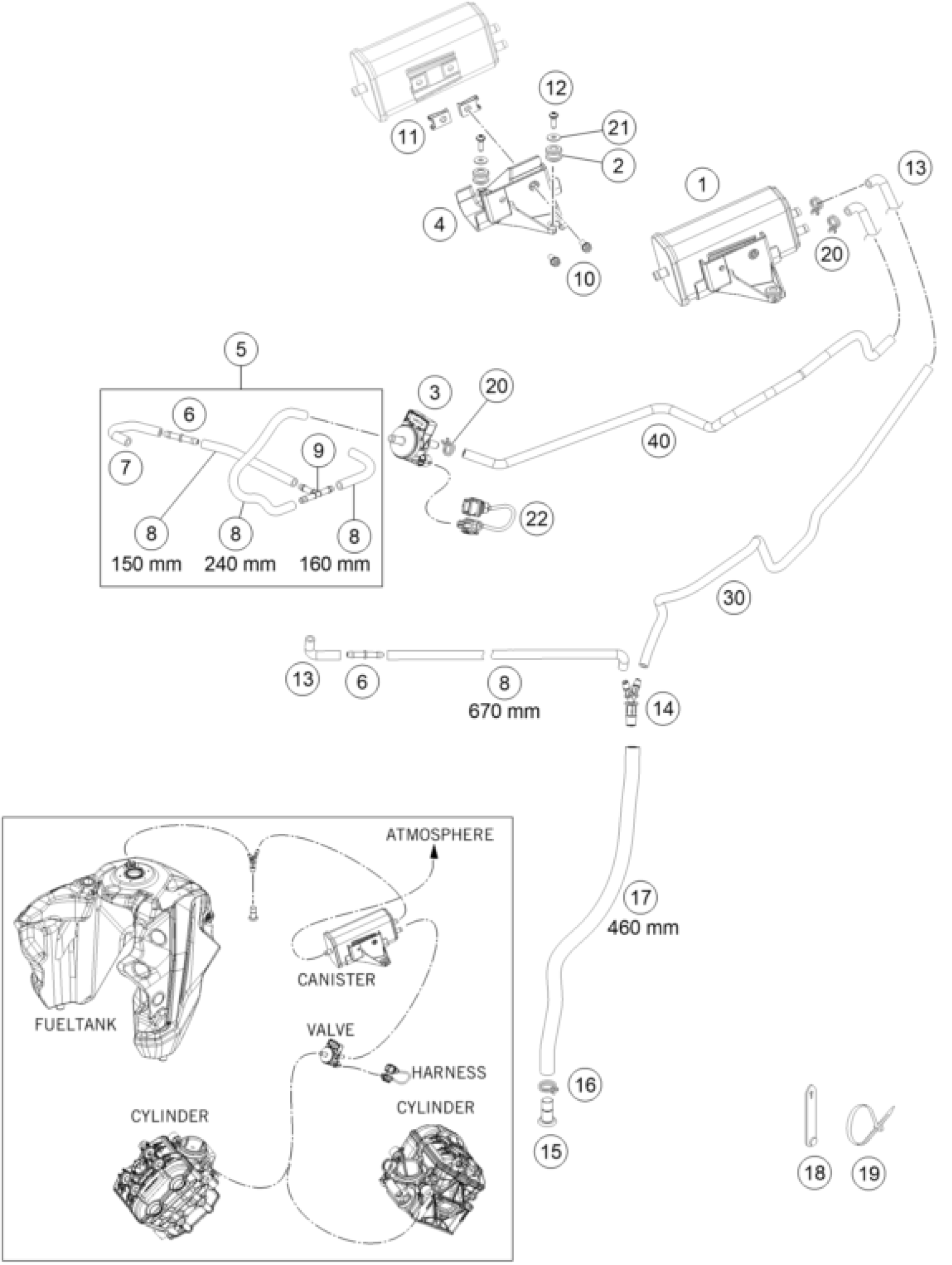

KTM 1290 SUPER ADVENTURE R 2017 EVAPORATIVE CANISTER Diagram

CARBON CANISTER

VIBRATION DAMPER DIGITALBOX 03

EVAP valve

Support

Hose

HOSE CONNECTION STRAIGHT

HOSE PURGE VALVE

HOSE EPA D=6/10 L=2000MM

T-connector TS-6 03

HH collar screw M6x12 TX30

clip nut M6

EJOT PT SCREW K50X16 1451

PREFORMED HOSE 6X10 FPM

Y-CONNECTOR YS 6-10-6

PLUG D=10

YDNAC-clamp 10173 (16MM)

HOSE EPA D=10/16 L=2000MM

RUBBER CABLE TIE 75MM 03

CABLE TIE 140/2,5MM BLACK

CLAMP YDNAC 10096F (9,6MM)

washer DIN 9021 A - 5.3

Wiring harness

Hose tank - ACF

Hose purge valve - ACF
