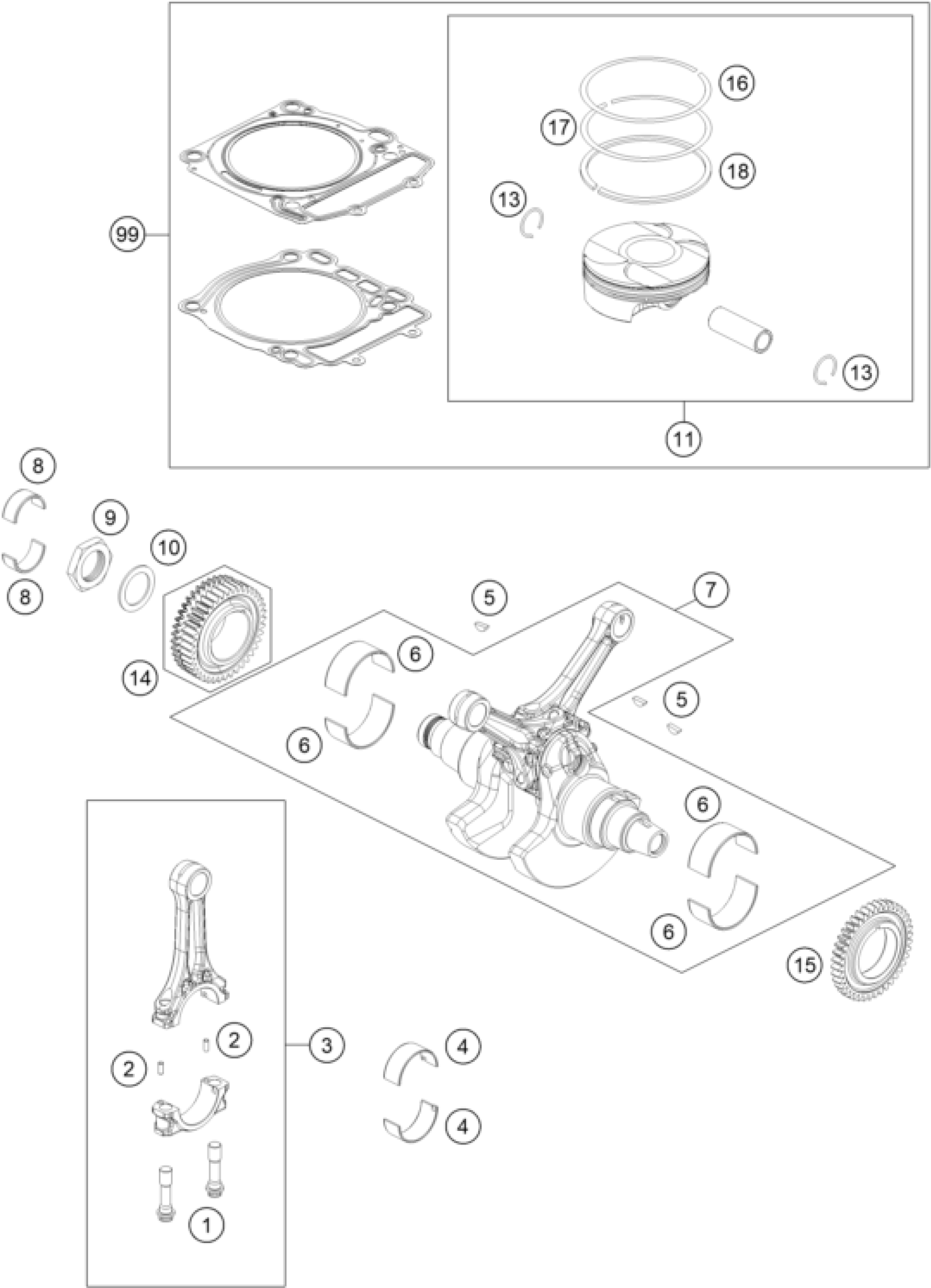

KTM 1290 SUPER ADVENTURE R 2017 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CONNECTING ROD SCREW MJ10X1

61230015100

$18.50

2

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

3

CON ROD

61430015000

$237.39

4

SPLIT BEAR. BUSH RED

612300151101

Unavailable

4

SPLIT BEAR. BUSH BLUE

612300151102

Unavailable

4

SPLIT BEAR. BUSH YELLOW

612300151103

Unavailable

5

woodruff key DIN 6888 4x5x13

0888040050

$4.11

6

SPLIT BEAR. BUSH RED 08

612300820001

Unavailable

6

SPLIT BEAR. BUSH BLUE 08

612300820002

Unavailable

6

SPLIT BEAR. BUSH YELLOW 08

612300820003

Unavailable

7

Crankshaft complete

61630018000

$1,410.53

8

BUSHING BOWL 28X32X13 03

60030026010

$14.02

9

HH-NUT M33X1,5 L/S WS46 03

60032009050

$15.89

10

WASHER 33,2X46X2 03

60032009040

$3.08

11

PISTON CPL. SIZE I

61430007000 I

Unavailable

11

PISTON CPL. SIZE II

61430007000 II

Unavailable

13

CIRCLIP LC4 07

75030074000

$12.33

14

PRIMARY GEAR CPL.

61330055000

$98.26

15

DRIVE WHEEL BALANCER SHAFT 08

61230056000

$67.87

16

RECTANGULAR RING

61330030000

$36.08

17

TAPERED COMP. PISTON RING

61330031000

$33.00

18

OIL SCRAPER RING D108

61330032100

$57.87

99

PISTON KIT SIZE I

61430007010 I

Unavailable

99

PISTON KIT SIZE II

61430007010 II

Unavailable
