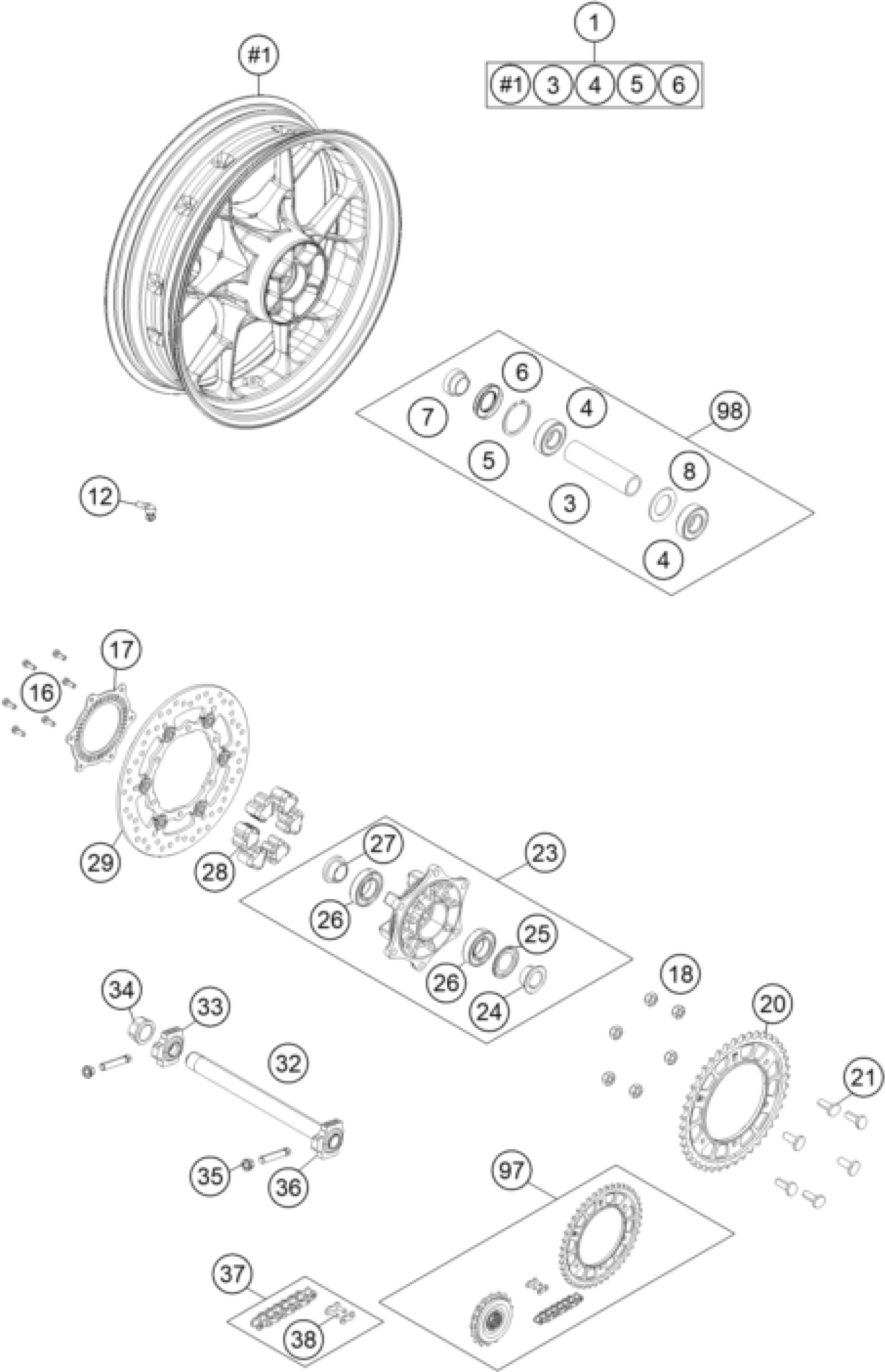

KTM 1290 SUPER ADV. S ORANGE 17 <2017> REAR WHEEL Diagram

#

Description
Price

1

Rear wheel 5.0''X17'' KPL.

6071010104430

$608.49

3

Bearing spacing tube L=124.8mm

60010011000

$20.09

4

Grooved ball bear. 6205-2RSHC3

0625062052

$30.85

5

CIRCLIP DIN0472-52X2

0472052200

$3.08

6

Radial shaft seal 30X52X7

0760305271

$5.23

7

distance sleeve rear wheel

60310013100

$18.13

8

Spacer ring 03

60010015000

$10.56

16

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

$2.05

20

REAR SPROCKET 42-T 03

60010051042

$82.46

17

Phonic wheel ABS, rear

60142021100

$21.59

18

Hexag. nut DIN 980V M10X1.25 S

0980101253

$2.05

21

SPROCKET SCREW M10X1,25 03

60010052000

$5.23

23

SPROCKET SUPPORT CPL. BLACK

6011005004433

$193.16

24

SPACER BUSH. SPROCKET SUPP. 06

60110012000

$20.09

25

NILOS RING 6006AV

60110016000

$9.72

26

BALL BEARING 6006 DDU2CG23S6NM

0625060060

$18.69

27

SPACER BUSH. SPR. SUPP. IN. 06

60110014000

$17.38

28

Rubber damping block 91

54610459000

$8.03

29

BRAKE DISK REAR

6031006000030

$254.31

32

AXLE REAR CPL.

60310081044

$88.35

33

Chain tension adjuster, right,

60010084000

$22.81

34

Collar nut M25X1.5 WS=32 05

61010086000

$17.20

35

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

36

screw M10x1.25x50 WS10

50304040100

$5.23

37

CHAIN 525 SDZZ WITH MAST. LINK

60410165118

$156.14

38

MASTER LINK F.CHAIN 525 SDZZ

60410066000

Unavailable

97

DRIVETRAIN KIT ADV/-S 17T/42T

00050002013

Unavailable

98

REAR WHEEL REP. KIT ADV. 1050

60610015000

Unavailable

12

VALVE ANGLED

61009076100

$16.35
