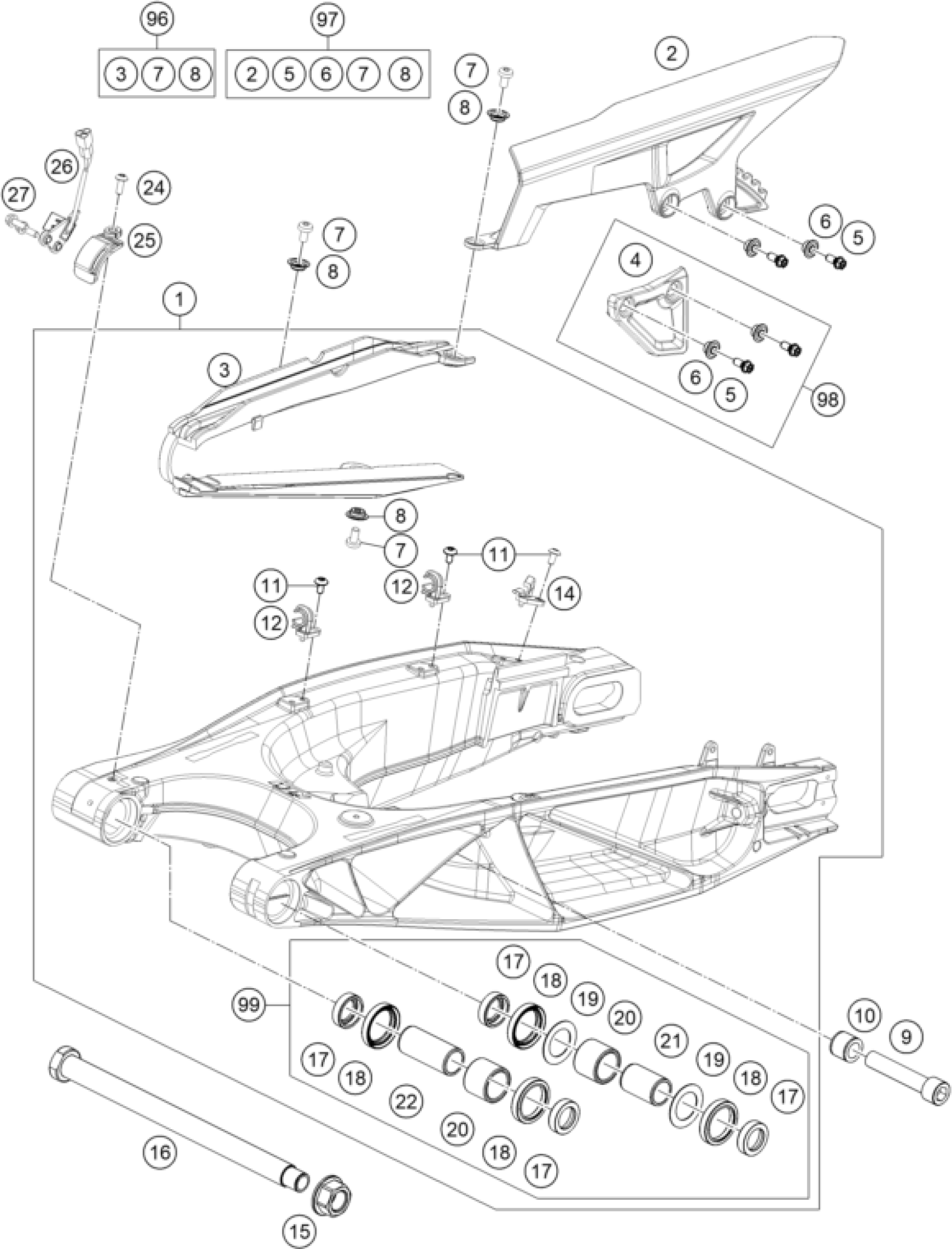

KTM 1290 SUPER ADV. S BLACK 17 <2017> SWING ARM Diagram

#

Description
Price

1

SWING ARM CPL. ADV. 17

6070403004433

Unavailable

2

CHAIN GUARD

60304061000

Unavailable

3

CHAIN SLIDING GUARD

60304066000

Unavailable

4

CHAIN GUIDE

60304070000

Unavailable

5

HH collar screw M6x16 TX30

0025060166

Unavailable

6

BUSH FOR SPOILER 6X11X16X7,5

50308053000

Unavailable

7

INT. TORX OVAL HEAD M 5X10 8.8

0018050103

Unavailable

8

BUSH FOR CHAINSLIDER GUARD 02

46104066050

Unavailable

9

SCREW M14X1,5 L=73MM 03

60004017000

Unavailable

10

BUSHING MONOSHOCK SOCKET 05

60004030151

Unavailable

11

SCREW TORX M5X10

78105081010

Unavailable

12

Clamp

60104142000

Unavailable

14

Rear cable routing for ABS sen

60142126000

Unavailable

15

Collar nut M19X1.5 SW=27MM

60004038200

Unavailable

16

SWING ARM BOLT

69004037244

Unavailable

17

Bucket f. shaft seal ring 03

60004034000

Unavailable

18

Radial shaft seal 30X40X7

0760304073

Unavailable

19

Stop disk 03

60004033000

Unavailable

20

NEEDLE BUSH HK2526B 03

60004031000

Unavailable

21

INNER RING JR20X25X38,5 03

60004032000

Unavailable

22

Inner ring JR 20X25X56.5

69004032000

Unavailable

24

Oval head screw M5x14 TX25

58605083014

Unavailable

25

MAGNET HOLDER

60416061000

Unavailable

26

WHEEL TRAVEL SENSOR

60416062000

Unavailable

27

HH collar screw M5x16 TX30

0025050166

Unavailable

96

CHAIN GUARD KIT 13-14

60304066010

Unavailable

97

CHAIN PROTECTION KIT 13-14

60304060010

Unavailable

98

CHAIN GUIDE KIT 1190 ADV

60304070010

Unavailable

99

swingarm rep. kit

69004230010

Unavailable
