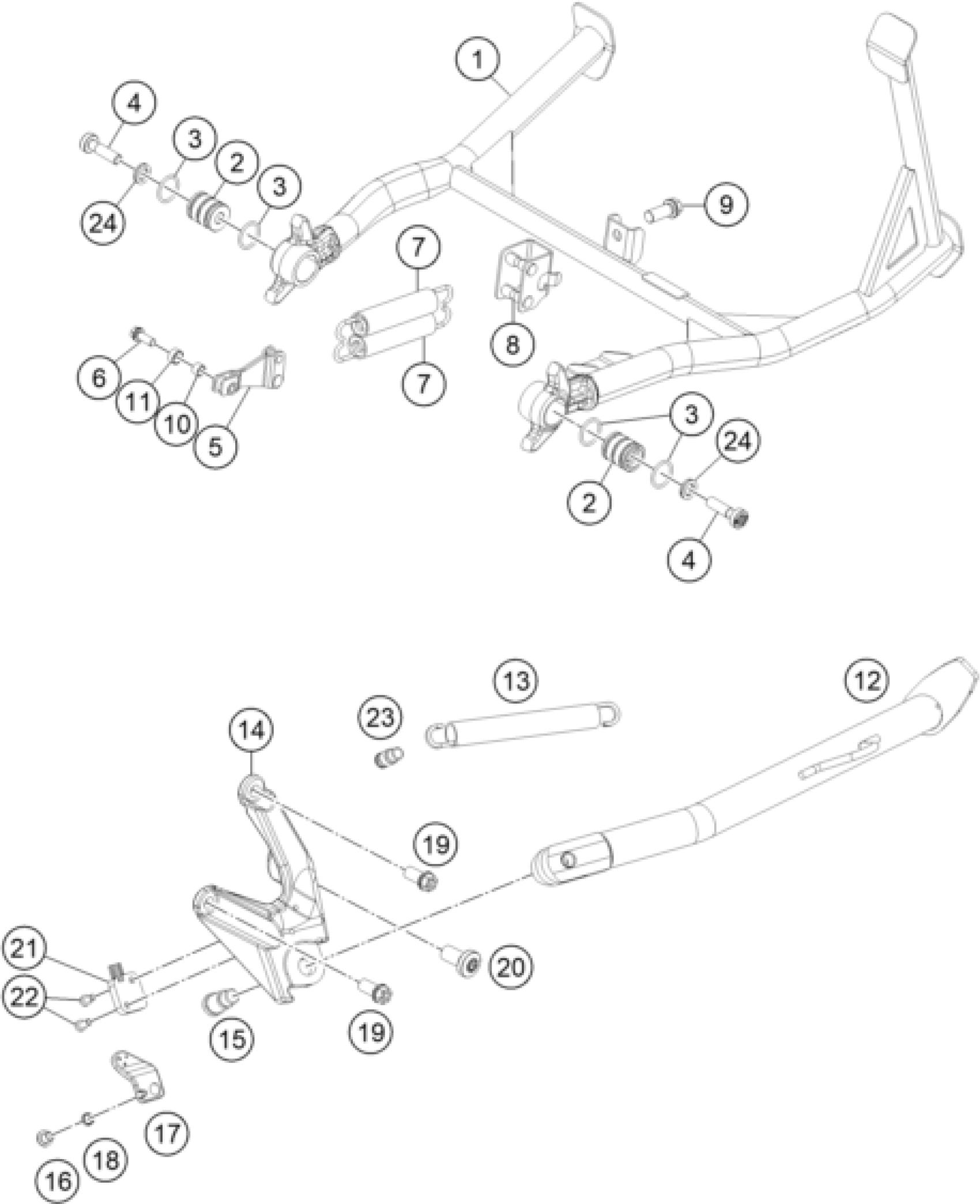

KTM 1290 SUPER ADV. S BLACK 17 <2017> SIDE / CENTER STAND Diagram

#

Description
Price

1

MAIN STAND

6030312210033

$318.08

2

BUSHING SUPPORT CENTRAL

60303022007

$15.89

3

o-ring 18.00x2.00 NBR70

0770180020

$2.05

4

SCREW M8X35 ISA45 SS

0035080356S

$5.23

5

SPRING SUPPORT FRONT CPL.

60303022025

$52.54

6

HH collar screw M6x16 TX30

0025060166

$3.08

7

SIDESTAND SPRING L=118MM

60303030100

$33.65

8

SPRING SUPPORT REAR CPL.

60303022026

$52.35

9

HH collar screw M8x20

0025080206

$2.05

10

BUSHING SPRINGSUPPORT FRONT

60303022031

$5.23

11

BUSHING SPRING SUPPORT FRONT

60303022032

$5.23

12

SIDE STAND CPL.

6030312310033

$176.05

13

SIDE STAND SPRING

60303024100

$40.57

14

SIDE STAND BRACKET

6030302610033S

$125.66

15

Screw for side stand M10x31.2

62503027200

$6.72

16

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

17

MAGNET HOLDER

60303029050

$8.31

18

BUSHING MAGNET HOLDER

60303029051

$1.49

19

HH COLLAR SCREW M8X16 TX40

0025080166

$4.11

20

AH collar screw M10x30 ISA45

0035100309S

$3.08

21

SIDE STAND SENSOR

60411045000

$111.91

22

CYL.HEAD SCREW DIN84A M4x12

0084040123

$1.49

23

RETAINING BOLT

60303023111

$13.36

24

NORDLOCK WASHERS M8

60303022035

$3.08
