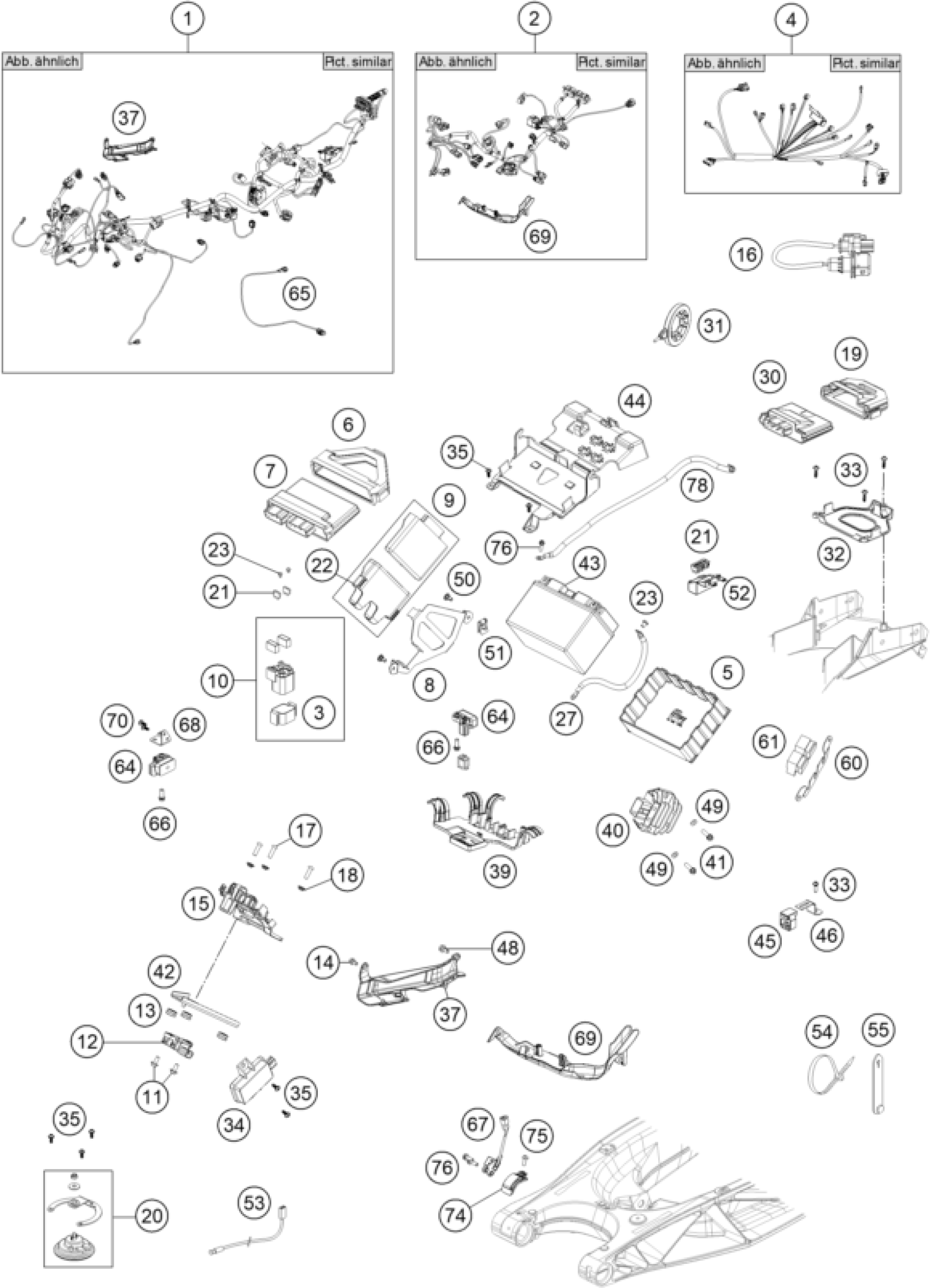

KTM 1290 S Adventure S, silver 2019 WIRING HARNESS Diagram

#

Description
Price

1

Main wiring harness complete

60711075033

$1,011.47

2

Engine harness

60711085100

$444.40

3

BRACKET RUBBER F.STARTRELAY 07

58211058050

$5.23

4

REAR WIRING HARNESS

60311076000

$44.12

5

Battery Housing

60311053050

$13.74

6

ECU RUBBER BRACKET

60341031050

$17.76

7

Control unit EFI

61341031300

$625.23

8

BRACKET ELECTRIC

60311057050

$41.97

9

ELECTRONIC CONTROL UNIT SAFE

60416031000

$522.47

10

Starter reley 12V 99

58211058000

$72.64

11

HH collar screw M6x13 TX30

0024060136

$3.08

12

inertial sensor

60342090100

$466.28

13

DAMP. COMPONENT ABS MODUL

62142041000

$4.11

14

special screw M5x12

69008021160

$4.11

15

Connector support front

60711048000

$5.23

16

Wiring harness

60411078050

$37.95

17

FLAT HEAD SCREW ISO7380 M6X20

0738060201

$1.49

18

COLLAR BUSHING

76508043050

$5.23

19

Rubber band

60711033050

$11.12

20

Direct current horn complete

60711060033

$39.82

21

FUSE 40 A

58011109140

Unavailable

21

Plug-in fuse, big 30A

58011109130

Unavailable

21

FUSE 25 A

58011109125

Unavailable

21

FUSE 15 A

58011109115

Unavailable

21

Plug-in fuse, big 10A

58011109110

Unavailable

22

RUBBER EDS-CONTROL UNIT

60316029000

$33.18

23

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

27

BATTERIE CABLE

60311059050

$20.75

30

Control unit MCU 3.0

60711033000

$646.64

31

Antenna keyless

69011168000

$41.13

32

Support

60708019010

$7.94

33

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

34

RECEIVER AIR PRESSURE SENSOR

60312032000

$169.69

35

EJOT PT screw K50x12

0081050121

$2.05

37

CABLE CHANNEL R/S

60311047000

$8.13

39

Plug board rear

60311049200

$6.35

40

VOLTAGE REGULATOR

60311034000

$177.55

41

HH collar screw M6x20 TX30

0025060206

$3.08

42

BRACKET SLOPING POSITIONS SENS

60342090040

$36.18

43

BATTERY 12V/11AH 03

60011053000

$366.89

44

BATTERIE COVER

60308017000

$19.81

45

RUBBER SUPP. PRESSURE SENS. 05

61041085050

$4.11

46

BRACKET PRESSURE SENSOR

60311040100

$11.30

48

COLLAR SCREW M6X12 TX

0023060123

$2.05

49

PLASTIC WASHER 03

60007020040

$1.49

50

HH collar screw M5x12 TX30

0025050126

$3.08

51

RANGE CHANGE METAL NUT M5

54603048200

$5.23

52

rubber cover fuse holder

60711087050

$9.06

53

Temperatur sensor

61111018100

$31.59

54

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

54

Cable tie 200/4.6mm black

44011076200

Unavailable

54

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

55

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

55

RUBBER CABLE TIE 60MM 03

60011093060

Unavailable

55

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

60

Retaining bracket

60711057050

$20.19

61

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

64

ACCLERATION SENSOR

60416063000

$69.84

65

WIRING HARNESS MONOSHOCK SAFE

60411015000

$31.03

66

HH collar screw M6x16 TX30

0025060166

$3.08

67

WHEEL TRAVEL SENSOR

60416062000

$126.96

68

Retaining bracket

60716065000

$11.30

69

CABLE CHANNEL L/S

60311046000

$7.66

70

SCREW FOR PLASTIC K45X12 T20

0081045121

$1.49

74

MAGNET HOLDER

60416061000

$52.73

75

Oval head screw M5x14 TX25

58605083014

$3.08

76

HH collar screw M5x16 TX30

0025050166

$2.05

78

GROUND CABLE

60311097000

$28.04
