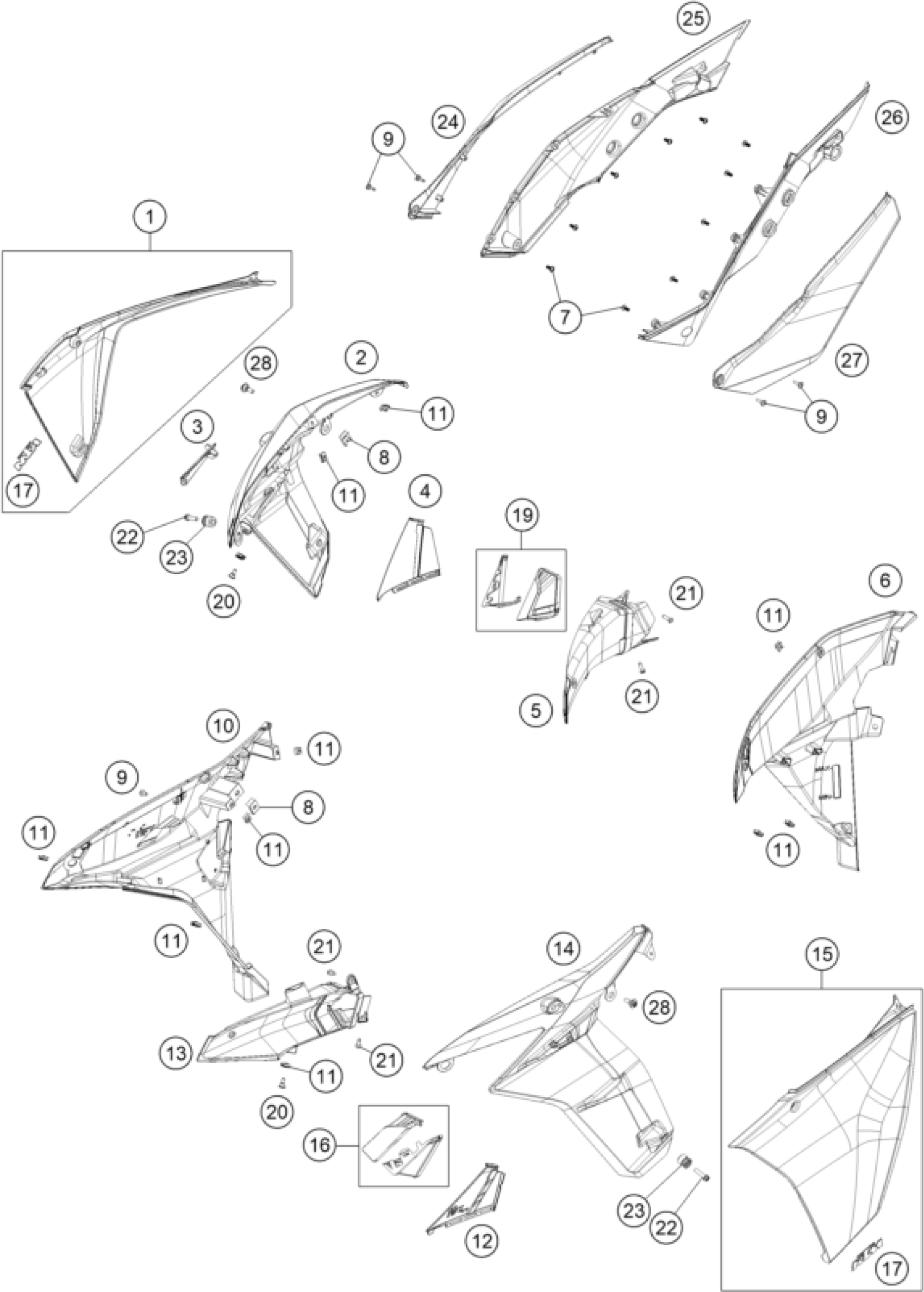

KTM 1290 S Adventure S, silver 2019 SIDE TRIM Diagram

#

Description
Price

1

Tankspoiler right

6070805103330B

$396.06

2

Fairing right

6070810300033

$54.88

3

Maintenance cover

6070810201033

$23.93

4

Cover for right intake port

60708103060

$16.92

5

Air intake right

6070810305033

$25.52

6

Inner cover right

60708126000

$35.33

7

EJOT PT screw K50x12

0081050121

$2.05

8

clip nut M6

54603048100

$4.11

9

special screw M5x12

69008021160

$4.11

10

Inner cover left

60708125000

$35.33

11

clip nut M5

69008021080

$3.08

12

Cover for left intake port

60708102060

$18.69

13

Air intake left

6070810205033

$25.52

14

Fairing left

6070810200033

$54.88

15

Tankspoiler left

6070805003330B

$396.06

16

Cover intake duct le. cpl.

6070604403333

$27.95

17

Decal 3D ''KTM'' 17

61608098000

$22.43

19

Cover intake duct right cpl.

6070604503333

$27.95

20

Special screw M5x17 TX30

60708025030

$2.05

21

EJOT PT SCREW K50X16 1451

0081050161

$1.49

22

HH collar screw M6x25 TX30

0025060256

$3.08

23

Bushing

60708050010

$5.23

24

Side fairing right

60308042000BHA

$237.95

25

REAR SIDE COVER RIGHT BLACK

6070804400033

$15.51

26

REAR SIDE COVER LEFT BLACK

6070804300033

$15.51

27

Side fairing left

60308041000BHA

$237.95

28

SCREW M6X20X5,5

83008100020

$3.08
