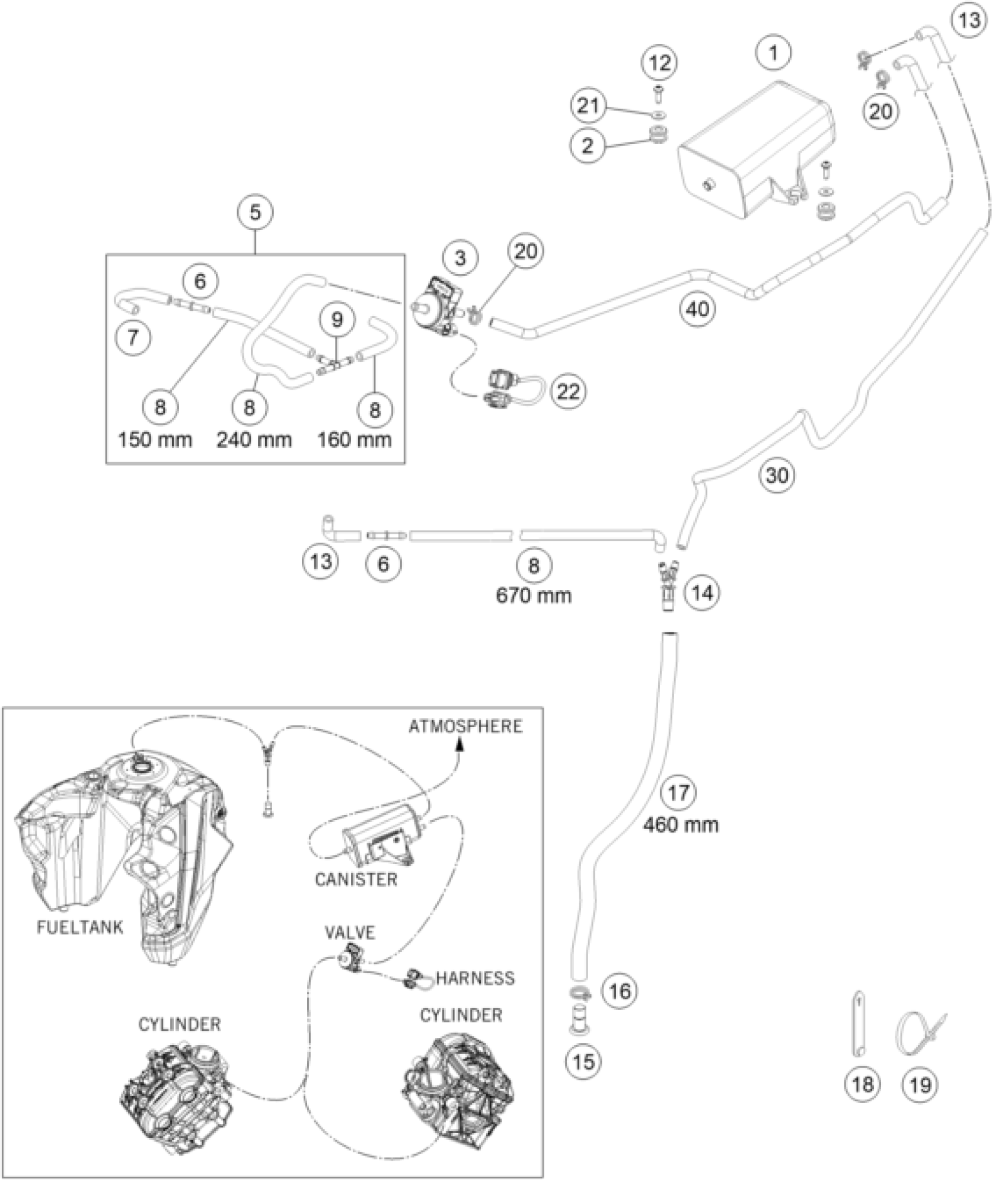

KTM 1290 S Adventure S, orange 2020 EVAPORATIVE CANISTER Diagram

EVAPORATE CANISTER

60415001000

$67.97

VIBRATION DAMPER DIGITALBOX 03

60039030000

$3.08

EVAP valve

76015015000

$254.78

Hose

60715020033

$47.58

HOSE CONNECTION STRAIGHT

69015019010

$5.23

HOSE PURGE VALVE

61415021000

$25.05

HOSE EPA D=6/10 L=2000MM

78015019000

$62.64

T-connector TS-6 03

60015022000

$5.98

EJOT PT SCREW K50X16 1451

0081050161

$1.49

PREFORMED HOSE 6X10 FPM

61315022000

$10.84

Y-CONNECTOR YS 6-10-6

61315028100

$8.41

PLUG D=10

61315026000

$21.87

YDNAC-clamp 10173 (16MM)

58431082100

$1.49

HOSE EPA D=10/16 L=2000MM

78015119000

$244.12

RUBBER CABLE TIE 75MM 03

60011093075

$5.23

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

CLAMP YDNAC 10096F (9,6MM)

59007017000

$2.05

washer DIN 9021 A - 5.3

0021050003

$1.49

Wiring harness

60411078050

$37.95

Hose tank - ACF

60715023000

$54.22

Hose purge valve - ACF

60715024000

$48.99
