Description

Price

1

Fork safe adventure 2017

14181Q2601

$2,846.51

2

HH collar screw M8x20 TX40 SL

0025080206S

$2.05

3

Triple clamp

6070113403233S

$222.15

4

Triple clamp

6070113203233S

$360.81

5

STEERING HEAD SCREW 09

6900103600001

$16.73

6

AH-COLLAR SCREW M8X35 ISA45

0035080356

$4.11

7

thrust wash DIN0988-25x35x0,5

0988253505

$4.11

8

PROT. RING STEER. HEAD BEARING

69001086100

$5.23

10

STEERINGHEAD KPL.17

69001181000

$37.77

11

HH collar screw M8x25

0025080256

$2.05

12

HANDLEBAR CLAMP 28MM

7720103800030

$21.03

13

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

14

HANDLEB.SUPP. D=28MM H=37MM

5940103903730

$36.55

15

Stearing head gasket

69001084100

$5.23

16

STEERING DAMPER CPL.

16181N53ES

$173.43

17

CLAMP STEERING DAMPER

6031200700033S

$56.93

18

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08

21

Direct current horn complete

60711060033

$39.82

22

TRIPLECLAMP-FACEPLATE BELOW

60308024200

$16.54

23

SPECIAL SCREW M6X15X3

83008000015

$3.08

25

EJOT PT SCREW K50X16 1451

0081050161

$1.49

98

Stearing head rep. Kit

69001181010

Unavailable

99

HANDLEBAR SUPPORT KIT ADV.1190

00050000927

Unavailable

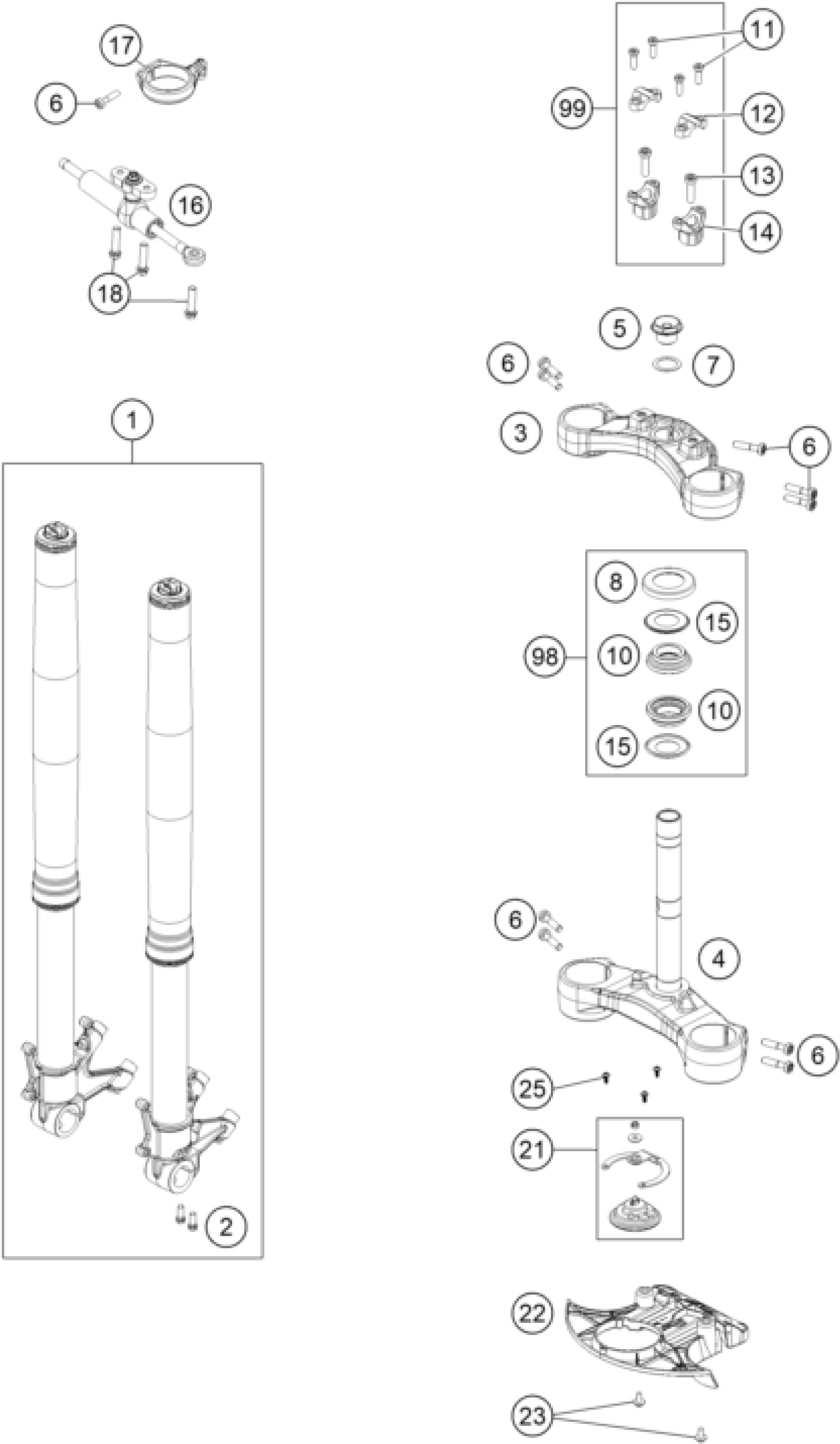

KTM 1290 S Adventure S, orange 2019 FRONT FORK, TRIPLE CLAMP Diagram

Fork safe adventure 2017

HH collar screw M8x20 TX40 SL

Triple clamp

Triple clamp

STEERING HEAD SCREW 09

AH-COLLAR SCREW M8X35 ISA45

thrust wash DIN0988-25x35x0,5

PROT. RING STEER. HEAD BEARING

STEERINGHEAD KPL.17

HH collar screw M8x25

HANDLEBAR CLAMP 28MM

AH-COLLAR SCREW M10X35 ISA45

HANDLEB.SUPP. D=28MM H=37MM

Stearing head gasket

STEERING DAMPER CPL.

CLAMP STEERING DAMPER

HH COLLAR SCREW M8X25 TX40

Direct current horn complete

TRIPLECLAMP-FACEPLATE BELOW

SPECIAL SCREW M6X15X3

EJOT PT SCREW K50X16 1451

Stearing head rep. Kit

HANDLEBAR SUPPORT KIT ADV.1190
