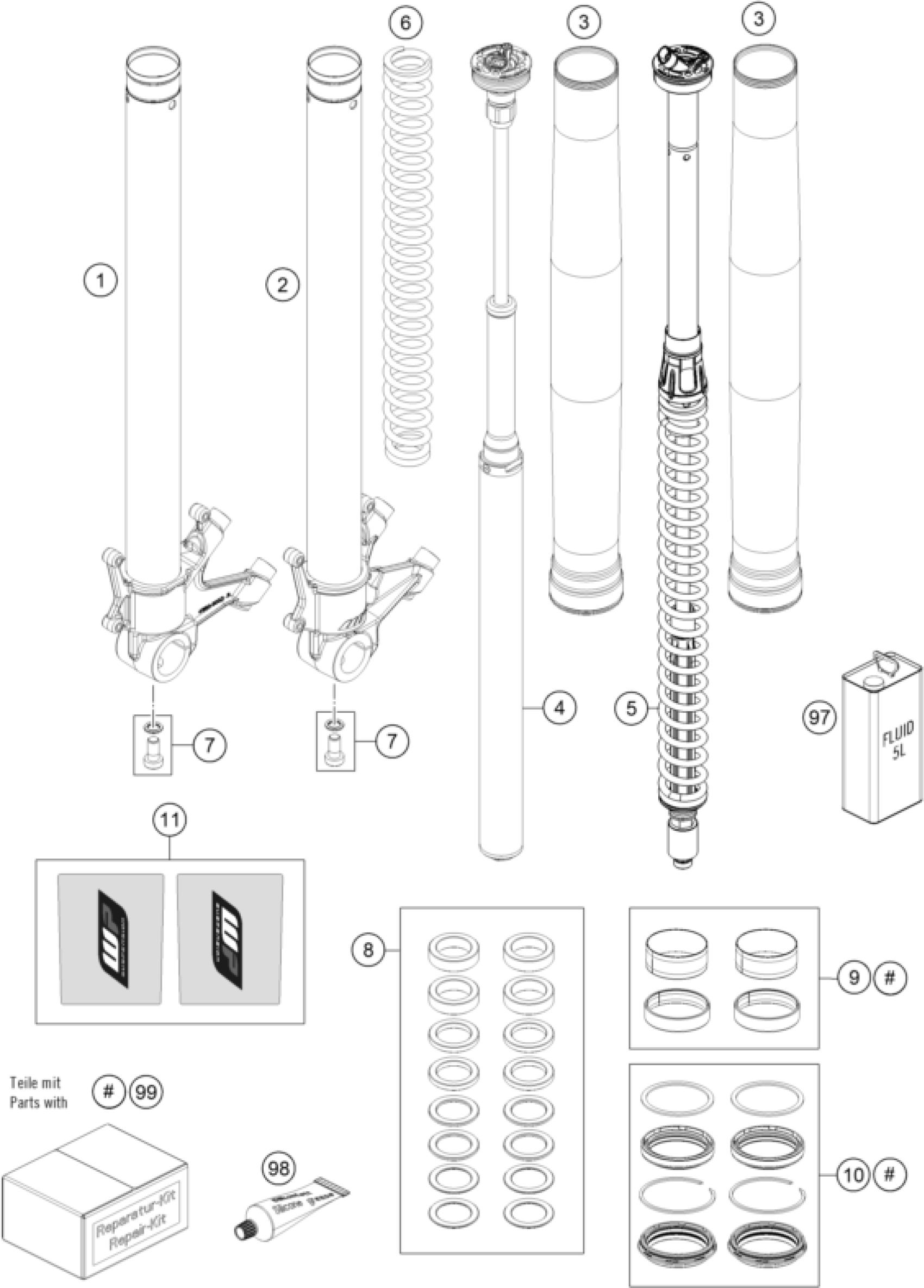

KTM 1290 S Adventure S, orange 2019 FRONT FORK DISASSEMBLED Diagram

#

Description

Price

1

AXLE CLAMP W. INNER TUBE R/S

48601082S1

$569.59

2

AXLE CLAMP W. INNER TUBE L/S

48601081S1

$569.59

3

Fork outer tube 49,13x550 dt54

48601099

$624.48

4

Cartridge cpl.

48SAF1Q26R

$921.90

5

Cartridge cpl.

48SAF1Q26L

$921.90

6

Mainspring (43,8) 120-430 fork

91410110

$150.34

7

AH SCREW M10X20 SET

00501020S1

$11.49

8

REP. KIT SPACER

R14054

$17.85

9

Guide bushing set fork 48mm

R14047

$25.70

10

GASKET KIT CPL.

R14040

$66.75

97

Fork Fluid Viscosity 4.0 5L

48601166S1

$149.59

98

SILICONE GREASE F. DUST STRI

T511

$34.59

99

Fork repair kit 48mm offroad

R14063

$160.00

11

Sticker set WP fork 175x45

52000147

$15.79
