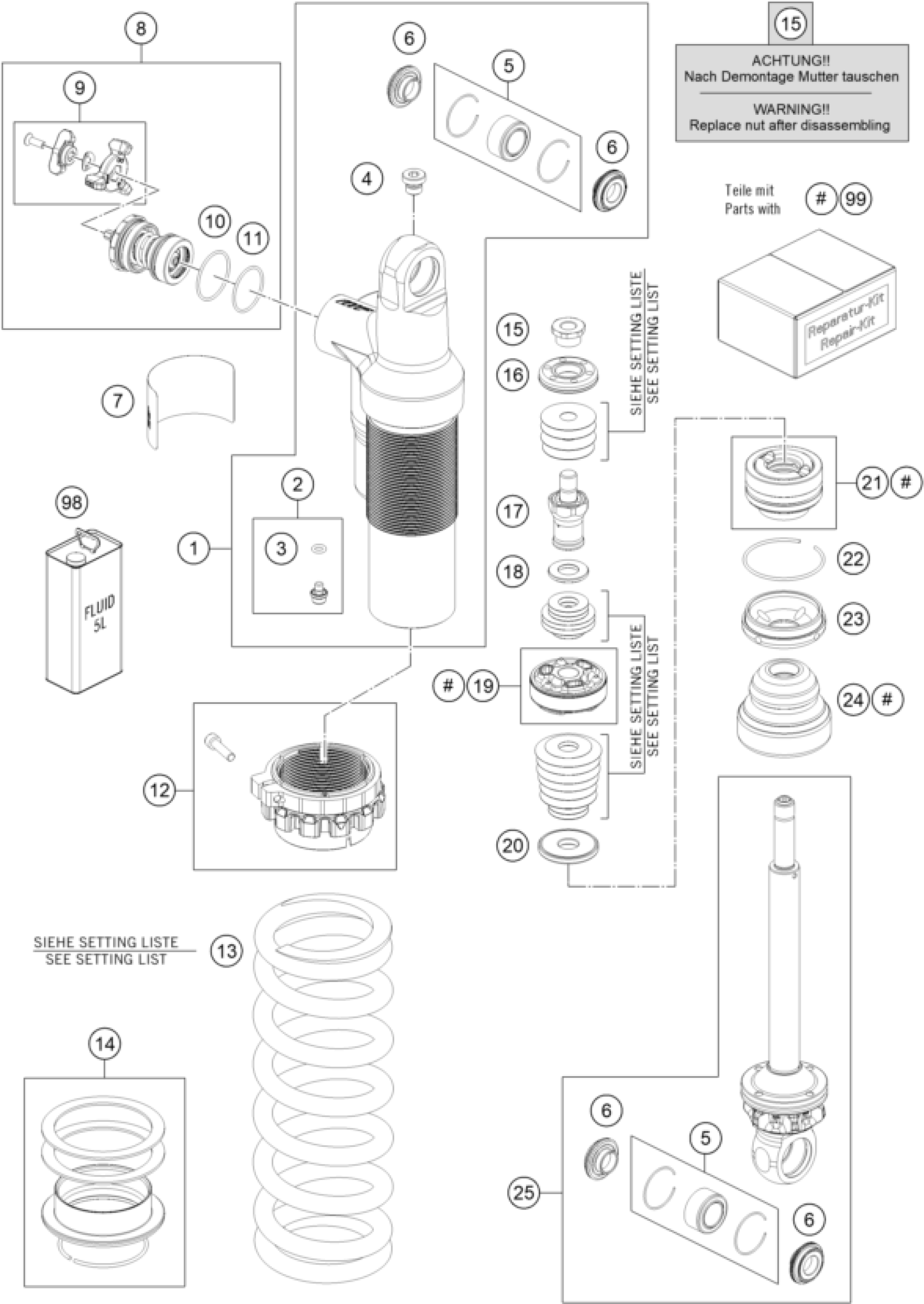

KTM 125 XC-W 2026 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

Shock absorber case cmpl.

S454600000S0000

$293.58

2

PLUG SCREW M5X6 CPL.

36120151ST

$4.11

3

O-ring 5,28x1,78 HNBR70 red

S208600003000FB

$1.49

4

HS cylinder-head screw R1/8 l8

50180095

$2.42

5

Ball bearing kit

RP10051T

Unavailable

6

PIVOTSEAL Ø12X25,1 PDS

46181193

$4.92

7

Sticker XPLOR PDS 90x40

52000233

$32.25

8

Compression cpl

S012900007S0600

$149.87

9

Repair kit adjuster DCC 2023

RP10044T

Unavailable

10

O-ring 27x1,5 Viton70 green IS

50180217

$2.05

11

O-ring 25x1,5 Viton70

50180218

$2.05

12

Adjustment nut pds-shock plast

S938100027S0000

Unavailable

13

SHOCK SPRING L= 225 63 N/MM WH

91010336

Unavailable

13

Mainspring (59/61) 66-225 damp

91010337

Unavailable

13

SPRING 225MM 69 N/MM

91010338S

Unavailable

13

Mainspring (59/61) 72-225 damp

91010339

Unavailable

13

Mainspring (59/61) 75-225 damp

91010363

Unavailable

13

Mainspring (59/61) 78-225 damp

91010364

Unavailable

14

Spring plate repair kit

RP10052T

Unavailable

15

nut M10x1 h10,5 SW19

46181656

$22.35

16

Piston 15,4x35,4x6

46181416

$14.02

17

Compression holder 10x48

S71100000500000

$30.47

18

Washer 12x24x2,5

46811258

$24.77

19

Piston d46 cmpl.

S624600000S0000

$41.51

20

Rebound disc 12x36x4 h0

46181194

$12.89

21

Seal support 46x28 cmpl.

S614620000S0100

$71.24

22

round-wire snap ring 49x1,75

S23902000000000

$24.22

23

Cover 46.12x6.2 h14.2

S409000004000FA

$73.48

24

Rubber pad 18x56x46 black

S921800000000C1

$21.41

25

Piston rod cmpl.

S421800001S0100

$442.99

98

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

99

Repair kit shock absorber

RP10053T

Unavailable
