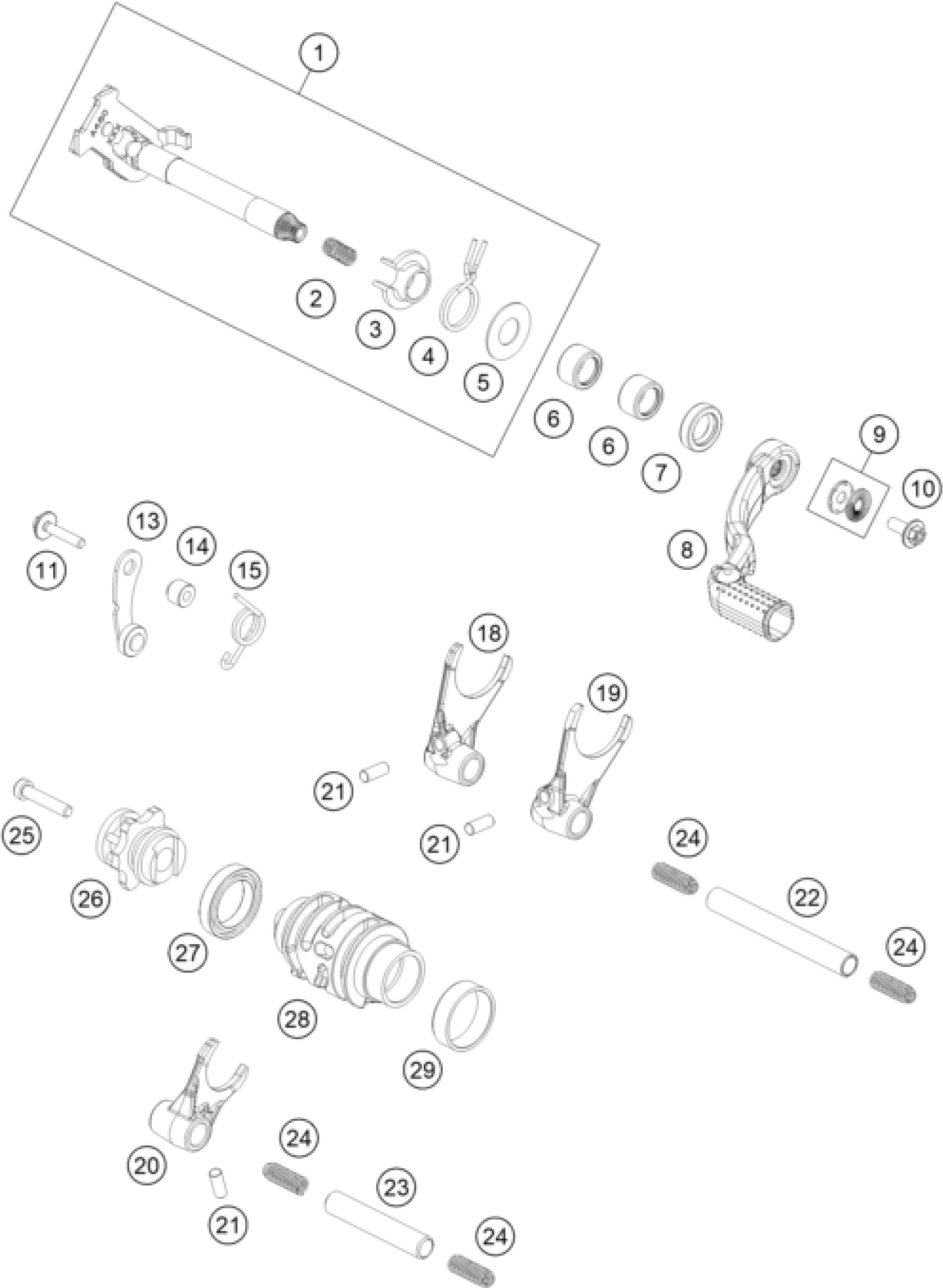

KTM 125 XC-W 2026 SHIFTING MECHANISM Diagram

Shift shaft cpl.

A46034005033

$38.05

TENSIONING SPRING 0,8MM

56534013100

$1.49

SPRING GUIDE

54634020000

$6.44

RETURN SPRING 03

54834014000

$4.11

STOP DISK 14X30X1

54634050000

$2.05

needle sleeve HK 1412 14x20x12

54632095000

$7.00

radial shaft seal 14x24x6 B

0760142460

$9.25

Gear shift lever cmpl.

A42034031000

$77.04

PAIR NORDLOCK WASHER M6

50233041500

$4.11

HH collar screw M6x15 TX30

0024060156S

$2.05

HH collar screw, M5x25, ISA 30

0000240502500S

$1.49

Detent arm cmpl.

A46034024044

$11.59

SLEEVE FOR LOCKING LEVER

54634052300

$3.08

LOCKING LEVER SPRING 03

54834023000

$3.08

SHIFTING FORK 1ST/3RD GEAR

50434003000

$56.93

shifting fork 2/4 gear

50534002000

$38.51

Shift fork 5/-6 gear

A42034001000

$39.45

NEEDLE ROLLER DIN5402 6X14,8

0402061480

$4.11

Shift fork shaft (L=66 mm)

A46034020000

$7.85

Shift fork shaft (L=93 mm)

A46034019000

$8.31

Compression spring L=25mm D=0.

58038023400

$1.49

HH collar screw M6x30 TX30

0025060306S

$3.08

Shift star

A46034115000

Unavailable

Grooved ball bearing 6805 JR C

0410002500700

$43.94

Shift drum

A42034012000

$72.27

FRICTION BEARING CONTROLLER

79234012010

$22.99
