Description

Price

1

HH collar screw M6x25 TX30

0025060256

$3.08

2

Generator Cover

A43030102044C1

$83.86

6

Ignition cable

A44039007100

$64.79

7

SPARK PLUG

51539093000

$17.57

8

Sealing boot

51739091000

$7.38

9

HH collar screw M6x25 TX30

0025060256

$3.08

10

Iginition coil

55639006000

$52.16

12

Stator

79239304000

$168.57

14

HH COLLAR SCREW M 5X16 WS=6

0014050163

$2.05

15

AH SCREW DIN0912-M 5X30

0912050303

$1.49

16

Rotor

A43039305000

$389.51

20

BENDIX

50440026000

$80.40

21

Ignition cover gasket

A42030040000

$7.94

22

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

23

Collar bushing

55540031000

$2.05

3

Starter motor

A42040001000

$238.98

4

Starter motor cover

A42040040000

$19.63

5

HH collar screw M6x30 TX30

0025060306

$3.08

11

Pick UP hanger

A42039004010

$3.73

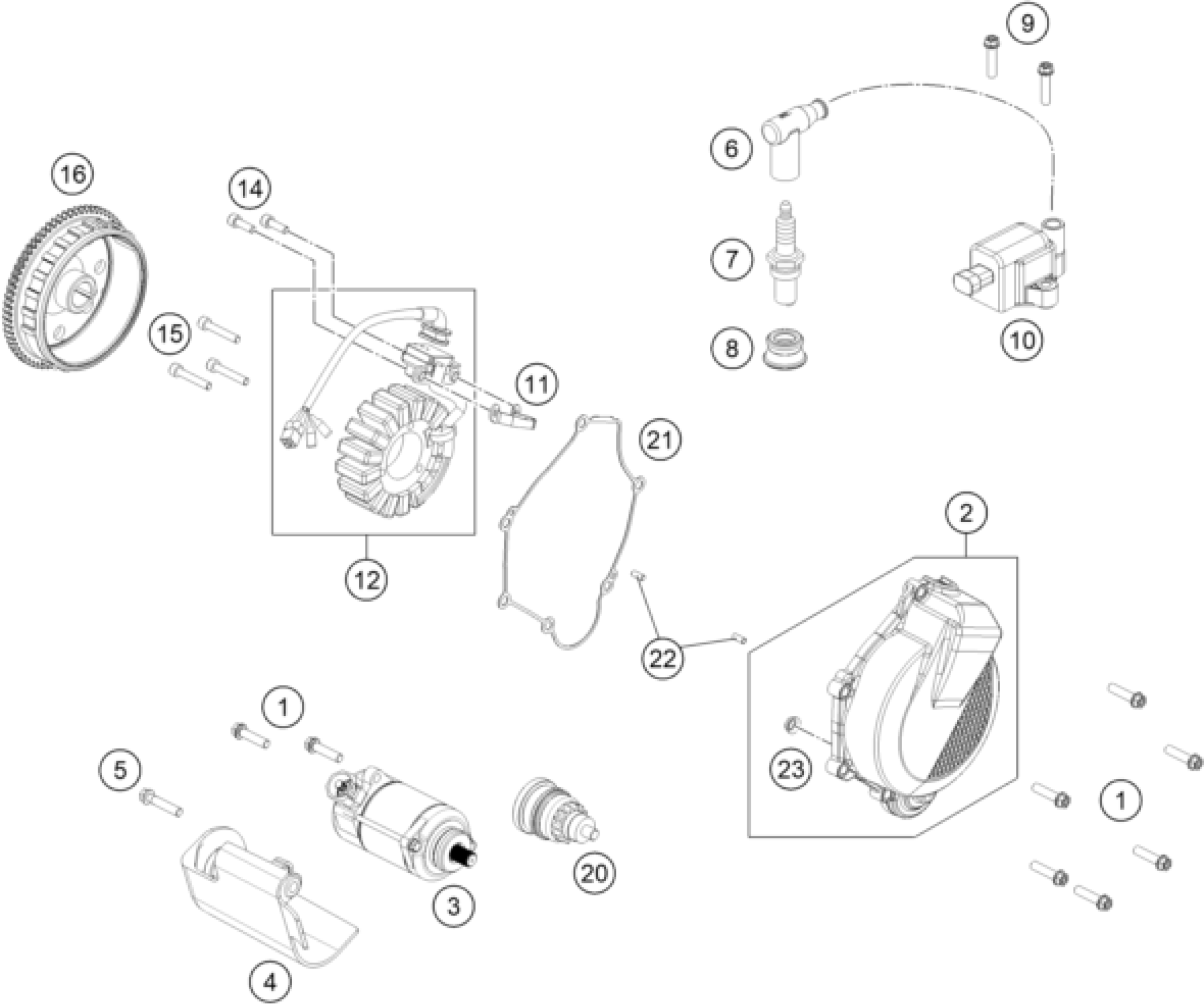

KTM 125 XC-W 2025 IGNITION SYSTEM Diagram

HH collar screw M6x25 TX30

Generator Cover

Ignition cable

SPARK PLUG

Sealing boot

HH collar screw M6x25 TX30

Iginition coil

Stator

HH COLLAR SCREW M 5X16 WS=6

AH SCREW DIN0912-M 5X30

Rotor

BENDIX

Ignition cover gasket

Needle roll.DIN5402 NRB 4X9.8

Collar bushing

Starter motor

Starter motor cover

HH collar screw M6x30 TX30

Pick UP hanger
