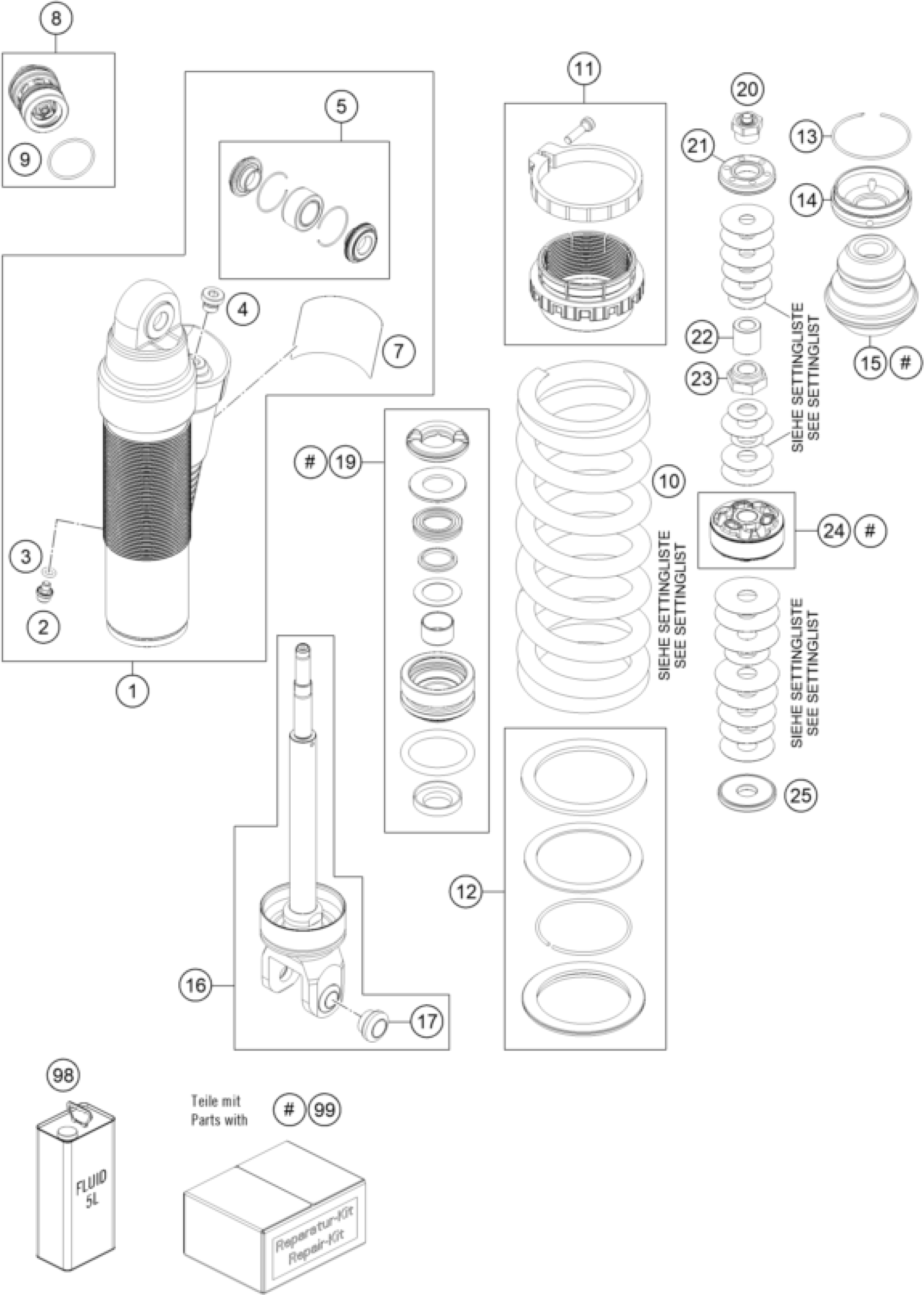

KTM 125 XC-W 2019 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

MONOSHOCK CASE M53X1 INC PIPE

46181242S1

$586.52

2

HS lock screw M5x6

36120151

$1.86

3

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

4

HS cylinder-head screw R1/8 l8

50180095

$2.42

5

Ball joint bearing kit 12mm

RP10011

$36.93

7

Sticker warning XPLOR PDS 40x6

52000170

$7.00

8

Compression cpl.

50181101S5

$120.89

9

O-ring 27x1,5 Viton70 green IS

50180217

$2.05

10

Mainspring (59/61) 57-60-63-22

91010348

Unavailable

10

Mainspring (59/61) 60-63-66-22

91010349

Unavailable

10

Mainspring (59/61) 63-66-69-22

91010350

Unavailable

10

Mainspring (59/61) 66-69-72-22

91010351

Unavailable

10

Mainspring (59/61) 54-57-60-22

91010353

Unavailable

11

Spring retainer M55x2x75x40 pl

46181228S

$35.05

12

SPRING CUP SET PDS 17

RP10005

$32.53

13

Round-wire snap ring 49x1,5

46810010

$3.08

14

Cover 46,12x6,2 h15,7

46180338

$34.49

15

Rubber pad 17x48x55

46181237

$19.35

16

MONOSHOCK LOWER PART CPL.

46181236S1

$345.85

17

Threaded bush M12 d20

50180105

$15.51

19

Sealholder 46x28 cpl.

46180669S

$70.54

20

Piston rod nut M10x1 PDS cpl.

46181183S

$17.66

21

Piston 15x35,4x6 4

46181184

$15.04

22

Bush 10x17x17

46181025

$5.23

23

Piston rod nut M12x1

46810474

$5.23

24

Piston 12x46x20 cpl.

46181328S

$68.25

25

Rebound disc 12x36x4 h0

46181194

$12.89

98

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

99

Repairing kit shock absorber P

RP10020

$121.54
