Description

Price

1

SILENCER 125 EXC

50405083000

$374.55

2

HH collar screw M6x35 TX30

0025060356

$3.08

3

Pair of washers M6 NORDLOCK

50233041000

$4.11

5

SCREW TORX M5X10

78105081010

$2.05

6

END CAP CPL.

50305083260

$88.16

7

DUMMY RIVET 4,8X 8 NIRO

0011480800

$3.08

8

O-RING 74,00X1,50 FKM 75SH

0770740015

$4.11

9

ROCK WOOL 265G

54805078265

$48.99

10

EXHAUST PIPE

50405007100

$743.78

11

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

12

HH collar screw M6x15 TX30

0024060156

$3.08

13

Silent block for exhaust pipe

50305012000

$19.91

14

clip nut M6

54603048100

$4.11

15

exhaust rubber

50405057000

$9.62

16

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

17

O-ring 38x3 VITON

0770380030

$5.23

18

Hose spring

50405058000

$4.11

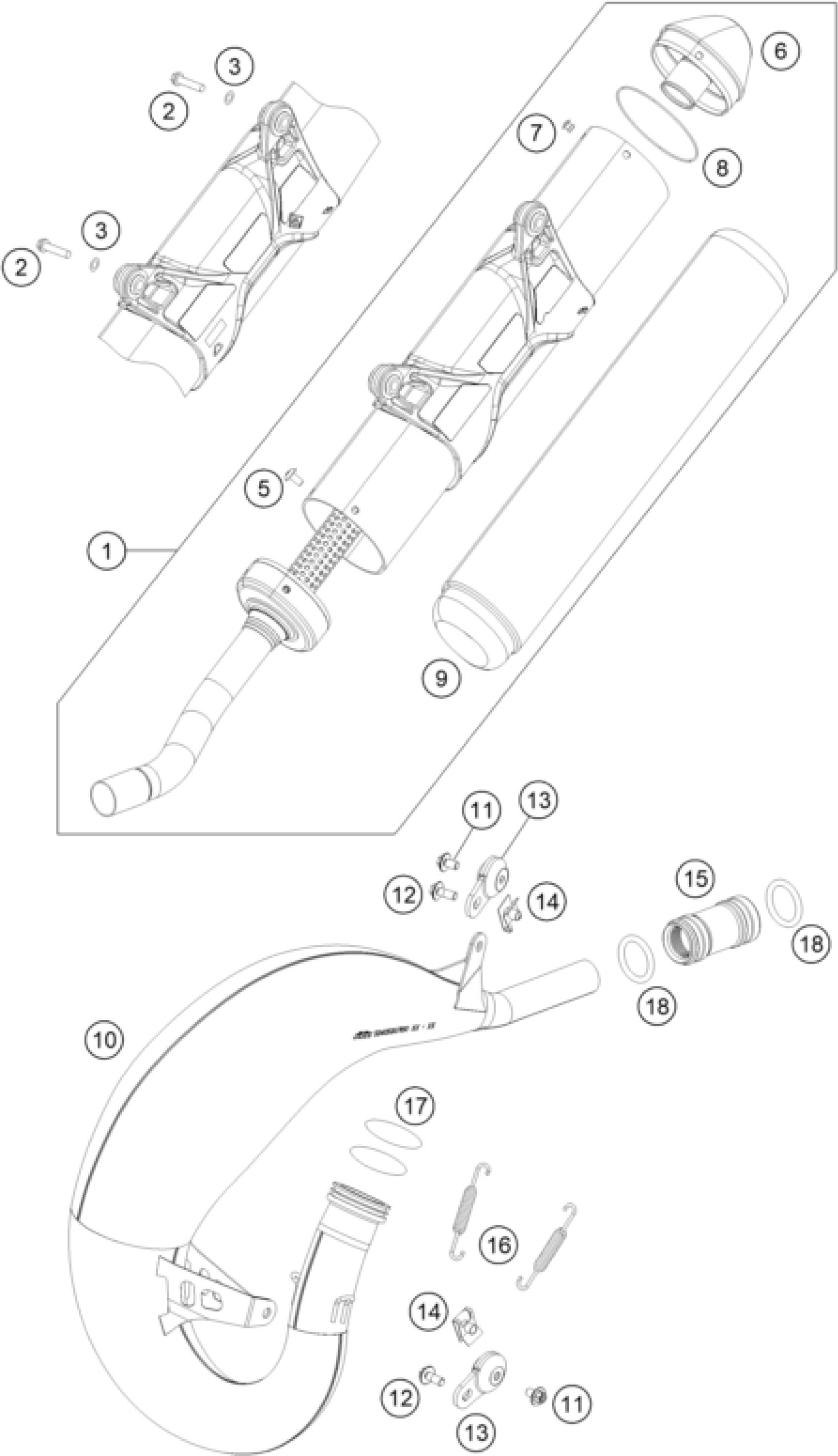

KTM 125 XC-W 2019 EXHAUST SYSTEM Diagram

SILENCER 125 EXC

HH collar screw M6x35 TX30

Pair of washers M6 NORDLOCK

SCREW TORX M5X10

END CAP CPL.

DUMMY RIVET 4,8X 8 NIRO

O-RING 74,00X1,50 FKM 75SH

ROCK WOOL 265G

EXHAUST PIPE

HH COLLAR SCREW M6X10 TX30

HH collar screw M6x15 TX30

Silent block for exhaust pipe

clip nut M6

exhaust rubber

TEN.SPRING L=62MM EY.MOVEABLE

O-ring 38x3 VITON

Hose spring
