Description

Price

1

SUPPORT BRACKET

77711083000

$22.52

2

WIRING HARNESS 125 EXC CPL. 14

50311175000

$129.02

3

Electronic box 125 18

50439231000

$267.50

4

Special screw K60X30 WS=6

0017060305

$2.05

5

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

5

Cable tie 200/4.6mm black

44011076200

Unavailable

5

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

6

CONDENSATOR 2200MF ADP-48 2000

50311035000

$76.01

7

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

8

COLLAR BUSHING 6,2X9,2X15X12,5

60308006000

$3.08

9

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

10

COLLAR SCREW M6X12 TX

0023060123

$2.05

11

BRAKE LIGHT SWITCH FRONT 2002

50311050100

$64.60

12

washer DIN 9021 A - 5.3

0021050003

$1.49

13

VOLTAGE REGULATOR 04

80011034000

$99.57

14

BATTERY BOX

79011055100

$37.86

15

WIRING HARNESS FOR CDI 2-ST.07

54839032200

$78.53

16

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

23

WIRING HOLDER 12MM

57013072000

Unavailable

23

WIRING HOLDER 16MM

57013072100

$1.49

21

PVC-CLAMP 7/16'' HEYCO 3377

57013070000

$1.49

22

SHCS DIN 912 M5x8

0912050083

$1.49

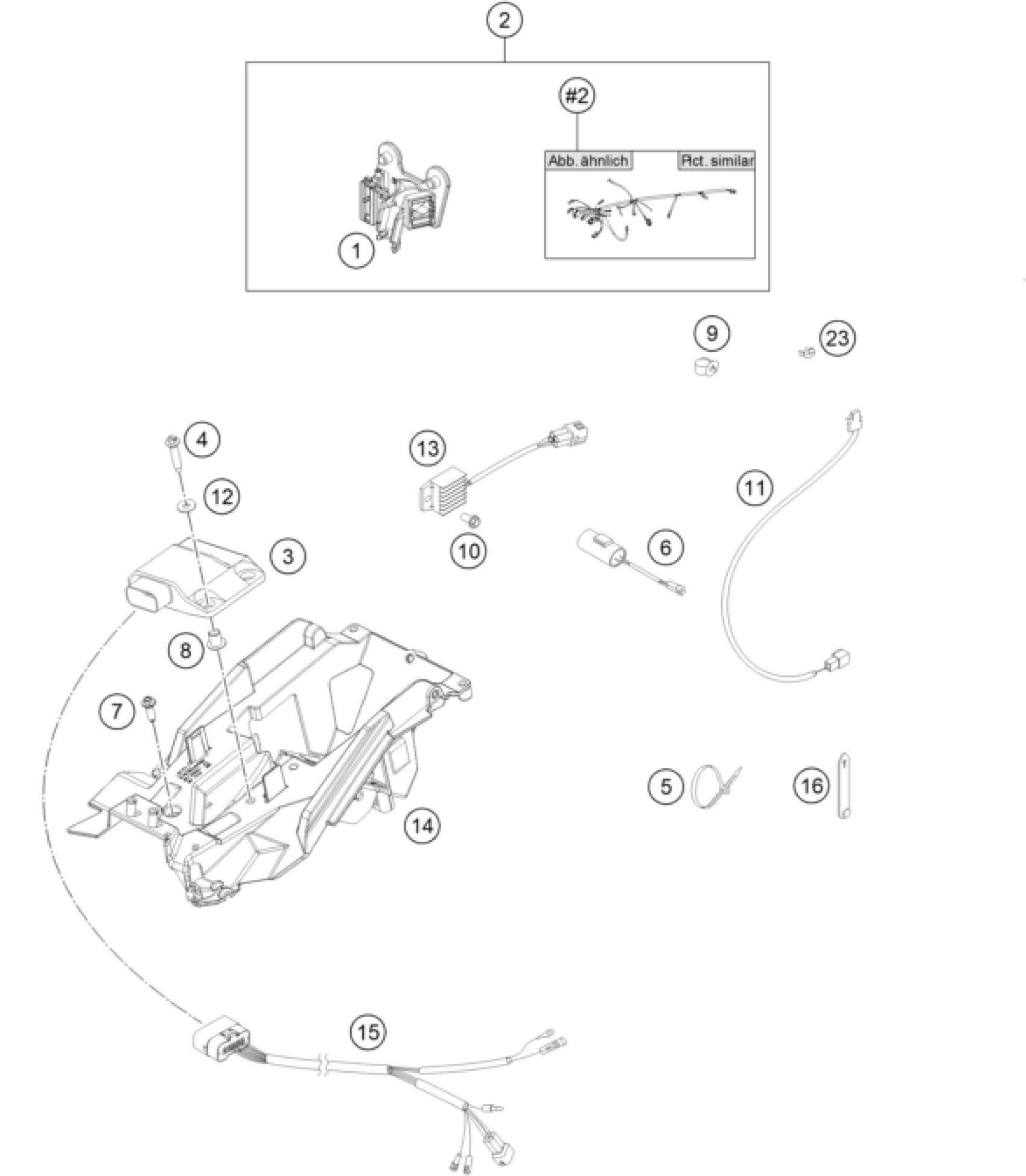

KTM 125 XC-W 2018 WIRING HARNESS Diagram

SUPPORT BRACKET

WIRING HARNESS 125 EXC CPL. 14

Electronic box 125 18

Special screw K60X30 WS=6

CABLE TIE 140/2,5MM BLACK

Cable tie 200/4.6mm black

CABLE TIE 300/4,8MM BLACK

CONDENSATOR 2200MF ADP-48 2000

SCREW F. PLASTIC K60X20AL SW6

COLLAR BUSHING 6,2X9,2X15X12,5

CABLE SUPPORT KHS NR.150-47610

COLLAR SCREW M6X12 TX

BRAKE LIGHT SWITCH FRONT 2002

washer DIN 9021 A - 5.3

VOLTAGE REGULATOR 04

BATTERY BOX

WIRING HARNESS FOR CDI 2-ST.07

RUBBER CABLE TIE 75MM 03

WIRING HOLDER 12MM

WIRING HOLDER 16MM

PVC-CLAMP 7/16'' HEYCO 3377

SHCS DIN 912 M5x8
