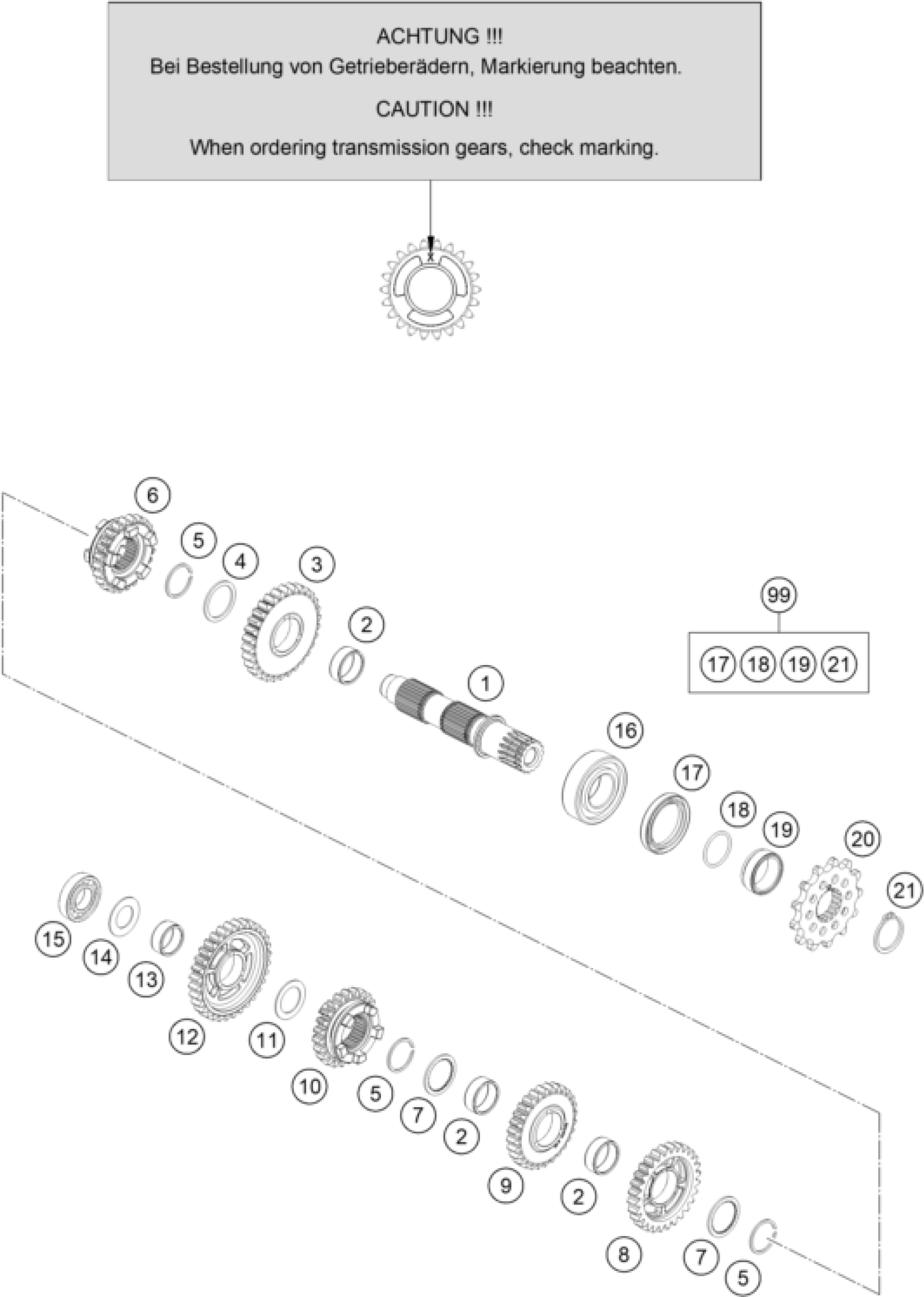

KTM 125 XC-W 2018 TRANSMISSION II - COUNTERSHAFT Diagram

Counter shaft cpl.

50433010100

$159.22

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

$11.68

Idler 2nd gear not=31

50433112100

$78.72

STOP DISC 25X31X1,5

54833044000

$5.23

CIRCLIP WS24

0417024000

$2.05

sliding gear 6thgear not=20

50433116100

$95.55

STOP DISC 25X0,8X30X30X7H

54833043000

$5.23

Idler gear 3rd gear 28t

50433113000

$76.68

idler 4th gear not=26

50433114100

$58.34

sliding gear 5th gear not=25

50433115200

$68.32

STOP DISC 20,2X30X1

54833080000

$3.08

Idler 1st gear not=33

50433111100

$79.93

NEEDLE BEARING K20X24X10

0405202410

$11.49

STOP DISC 17,2X30X1

56033030000

$4.11

GROOVED BALL B. 16003 C4 J1

0625160031

$20.56

BALL BEARING 6205 C3 NTN

0625062054

$20.66

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

$5.23

O-RING 23,00X2,00 NBR70

0770230020

$2.05

SPACER BUSHING 12,4 MM

50433030000

$20.84

Sprocket 13-t

79233029013

$30.94

CIRCLIP DIN0471 - 25X2

0471250200

$1.49

COUNTER SHAFT REP. KIT 125 SX

00050000949

Unavailable
