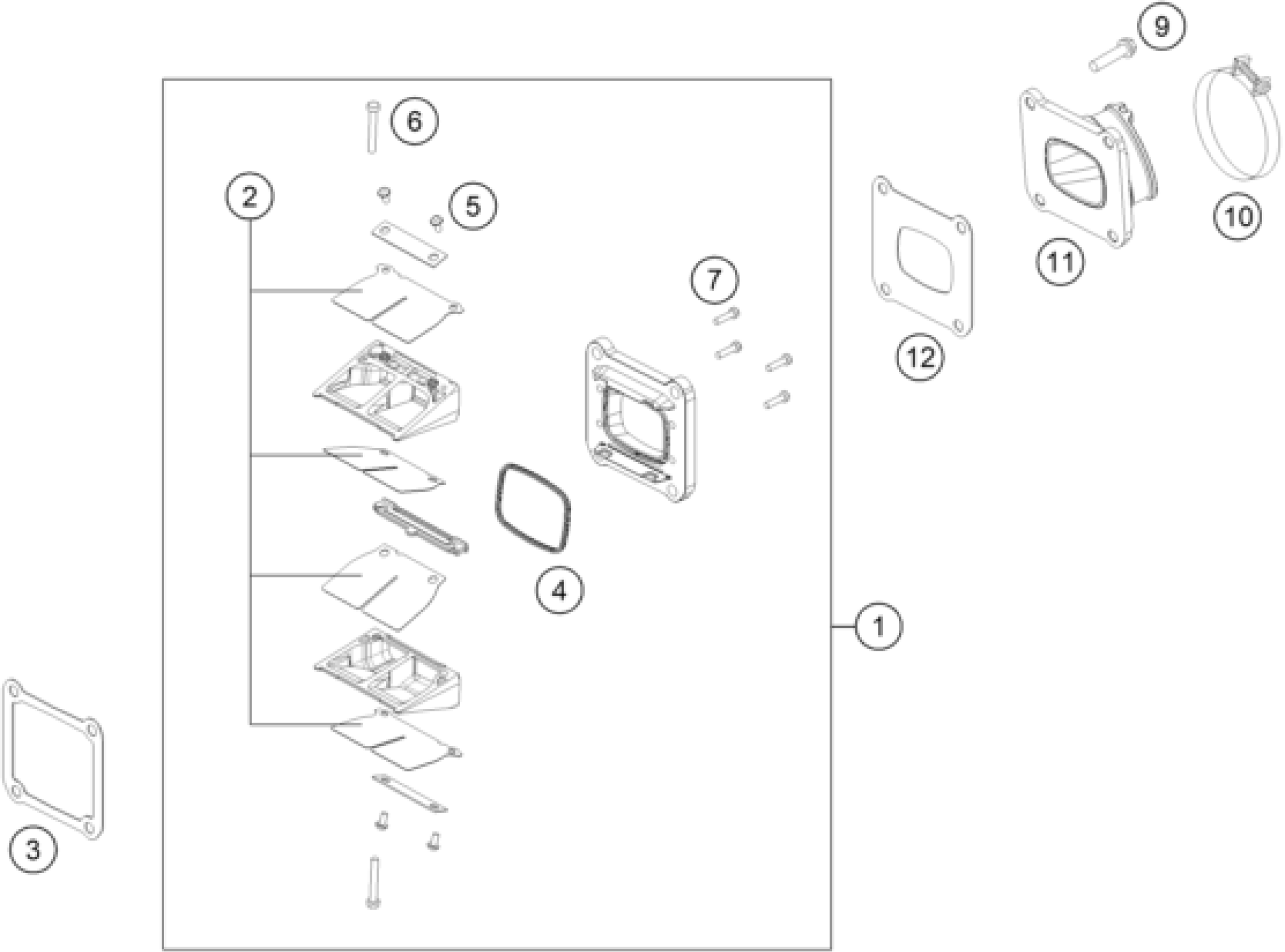

KTM 125 XC-W 2018 REED VALVE CASE Diagram

#

Description

Price

1

REED VALVE CASE CPL.

50430151044

$180.45

2

REED VALVE SET

54830052344

$114.66

3

GASKET REED VALVE CASE

50430098050

$7.66

4

GASKET SUPPORTING PLATE

54830153050

$9.44

5

EJOT DELTA PT SCREW 30X5,5

00810300553

$1.49

6

EJOT DELTA PT SCREW 35X25

0081035253

$1.49

7

EJOT DELTA PT SCREW 30X12

0081030124

$1.49

9

HH collar screw M6x25 TX30

0025060256

$3.08

10

CLAMP 54/09 MIXED

54830061000

$5.41

11

Intake flange

50430150100

$40.66

12

GASKET INTAKE FLANGE

50430098060

$5.23
