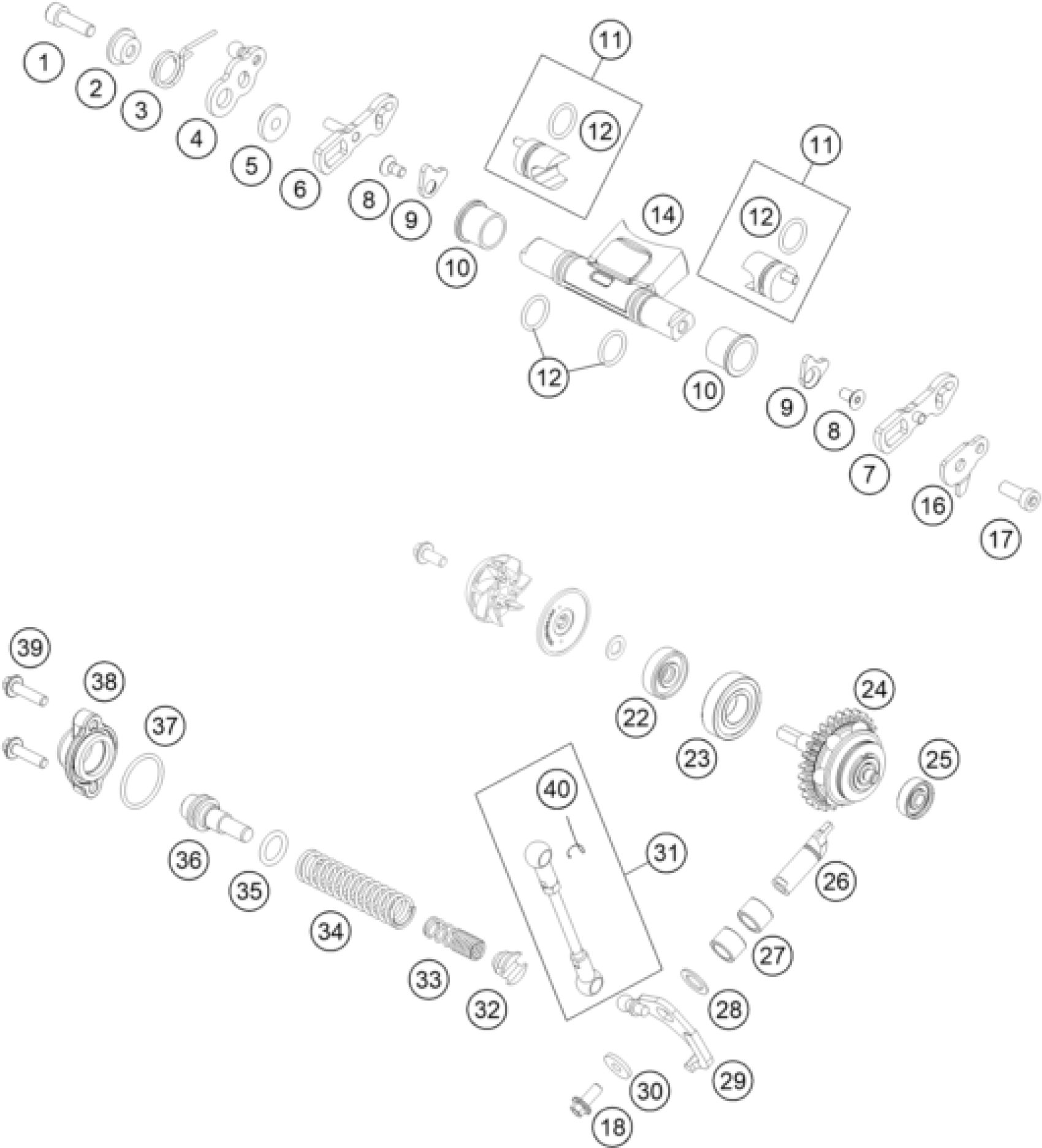

KTM 125 XC-W 2018 EXHAUST CONTROL Diagram

#

Description
Price

1

AH SCREW DIN0912-M 6X20

0912060203

$2.05

2

SPRING SLEEVE

54637067000

$4.11

3

OVERLOAD SPRING

54637066000

$4.11

4

CONTROL LEVER WITH BALL TYPE

54637065000

$21.03

5

BUSHING SLEEVE

54637068100

$7.85

6

SLOTTED LEVER R/S

50437065044

$24.49

7

SLOTTED LEVER L/S

50437064044

$20.09

8

hex lobe countersunc screw M5x

0019050106S

$2.05

9

LOCK PLATE

50437079000

$3.08

10

BEARING SLEEVE F. CONTROL FLAP

50437023000

$5.23

11

CONTROLLER DRUM CPL.

50437061044

$35.05

12

O-RING 14X2 FPM 75SH

0770140201

$3.08

14

CONTROL FLAP

50437020000

$71.24

16

STOP PLATE

50437085000

$7.56

17

AH SCREW DIN0912-M 6X16

0912060163

$1.49

18

HH COLLAR SCREW M 5X12 WS=6

0014050123

$2.05

22

SHAFT SEAL RING 8X24X7 A DUO

0760082472

$7.66

23

BALL BEARING 16002 C3

0625160020

$19.07

24

CENTRIFUGAL UNIT

50437050044

$153.24

25

Grooved ball bearing 626LLBC3/

54637098100

$12.61

26

ADJUSTING LEVER 125/150 2016

50437057100

$37.48

27

needle sleeve HK 1010 10x14x10

0618101410

$5.98

28

SHIM WASHER DIN988 10X16X1

0988101610

$2.05

29

angle lever

47237056000

$31.69

30

WASHER DIN7349-5X15X2

0349000050

$1.49

31

CONNECTING ROD CPL.

50437095044

$20.75

32

SPRING INSERT

54637071200

$9.06

33

AUXILIARY SPRING MID. YELLOW

54637072300

$3.08

34

ADJUST. SPRING 2003

54837069000

$3.08

35

O-RING 12,37X2,62 NBR70

0770021120

$3.08

36

SPRING GUIDE 250/300

54837075000

$14.95

37

O-RING 24,00X2,00 NBR70

0770240020

$2.05

38

COVER LID 250-380'98

54637070100

$18.69

39

HH COLLAR SCREW M 5X20 WS=6

0014050203

$3.08

33

AUXILIARY SPRING 1,2MM 2001

54637072500

Unavailable

33

AUXILIARY SPRING HARD GREEN

54837072100

Unavailable

40

SECURING DIN-71805-S-8

50237195055

$2.05
