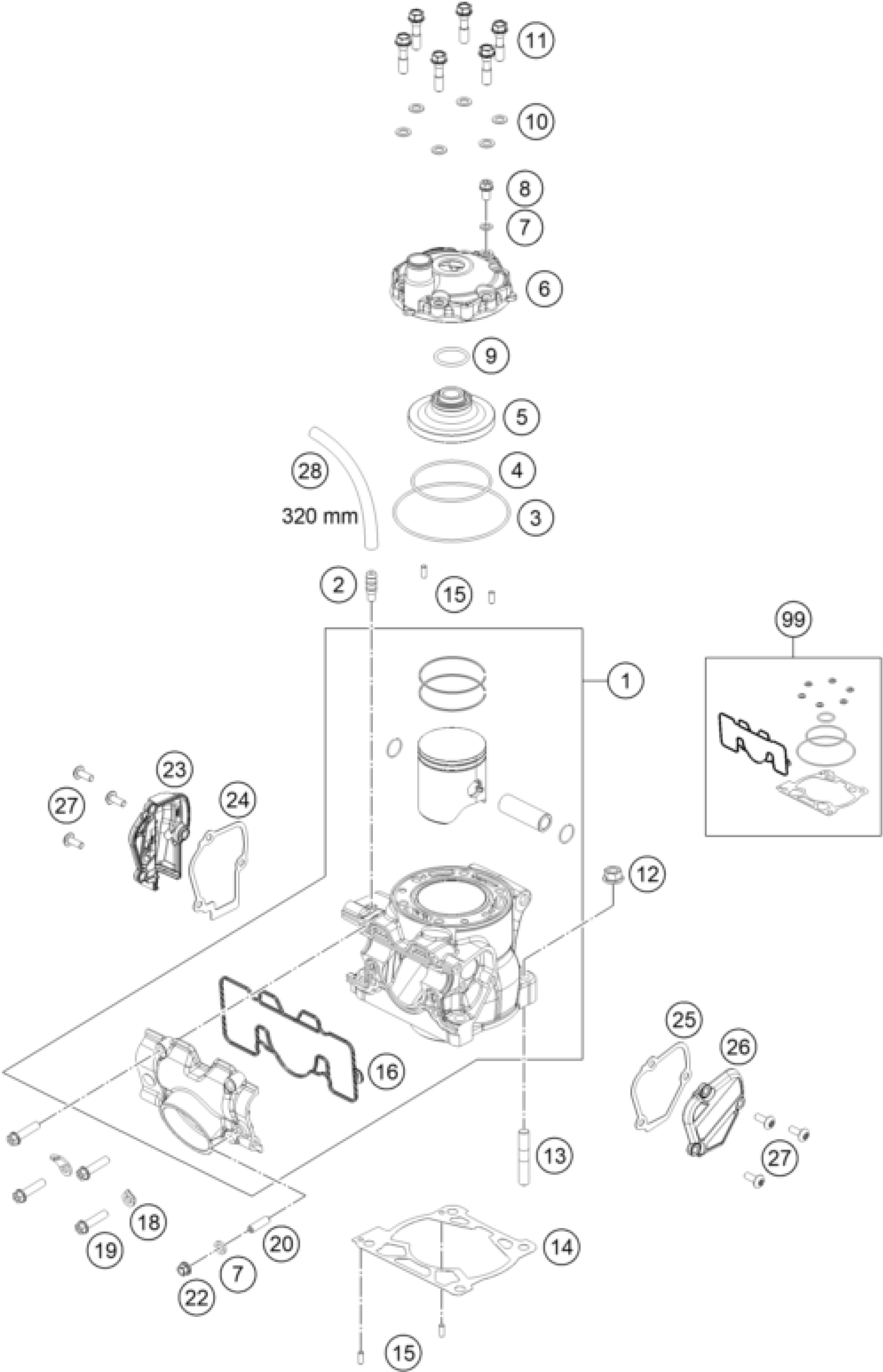

KTM 125 XC-W 2018 CYLINDER, CYLINDER HEAD Diagram

#

Description
Price

1

Cylinder + piston cpl. 125

50430038100

$1,066.08

2

VACUUM CONNECTION M 6X1

58336020090

$6.63

3

O-RING 89X2 NBR 70 SH

0770890200

$3.08

4

O-RING 60X2 FPM 75SH

0770600200

$5.23

5

COMBUSTION CHAMBER INLAY

50430060000

$32.25

6

CYLINDER HEAD

50430106000

$42.07

7

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

8

HH collar screw M6x10 TX30

0025060106

$3.08

9

O-ring 23.00X2.5 NBR 70 SH

07702300251

$2.05

10

CU-SEAL RING DIN7603- 7,3X12X1

0603070121

$1.49

11

CYLINDER HEAD SCREW

50430079000

$3.08

12

HH COLLAR NUT M 8 WS=12

50330045000

$2.05

13

STUD DIN 835 M8X32

0835080326

$2.05

14

CYLINDER BASE GASKET 0.15MM

50430035015

Unavailable

14

CYLINDER BASE GASKET 0.20MM

50430035020

Unavailable

14

CYLINDER BASE GASKET 0.25MM

50430035025

Unavailable

14

CYLINDER BASE GASKET 0.40MM

50430035040

Unavailable

14

CYLINDER BASE GASKET 0.50MM

50430035050

Unavailable

14

CYLINDER BASE GASKET 0.75MM

50430035075

Unavailable

15

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

16

GASKET CONNECTION FLANGE

50437046000

$12.05

18

RETAINING PLATE

51005074000

$3.08

19

HH collar screw M6x25 TX30

0025060256

$3.08

20

THREAD PIN DIN0913-M 6X20

0913060203

$1.49

21

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

22

COLLAR NUT M6X1 SW8

77336088106

$12.61

23

EXHAUST CONTROL COVER R/S

5043700700033

$22.81

24

Exhaust ctrl cover gasket rhs

50437008100

$7.85

25

Exhaust ctrl cover gasket lhs

50437006100

$7.85

26

EXHAUST CONTROL COVER L/S

5043700500033

$24.58

27

Oval head screw M5x14 TX25

58605083014

$3.08

28

PVC-HOSE 6X9

50335030001

Unavailable

99

CYLINDER GASKET SET 125/150 16

50430097000

Unavailable
