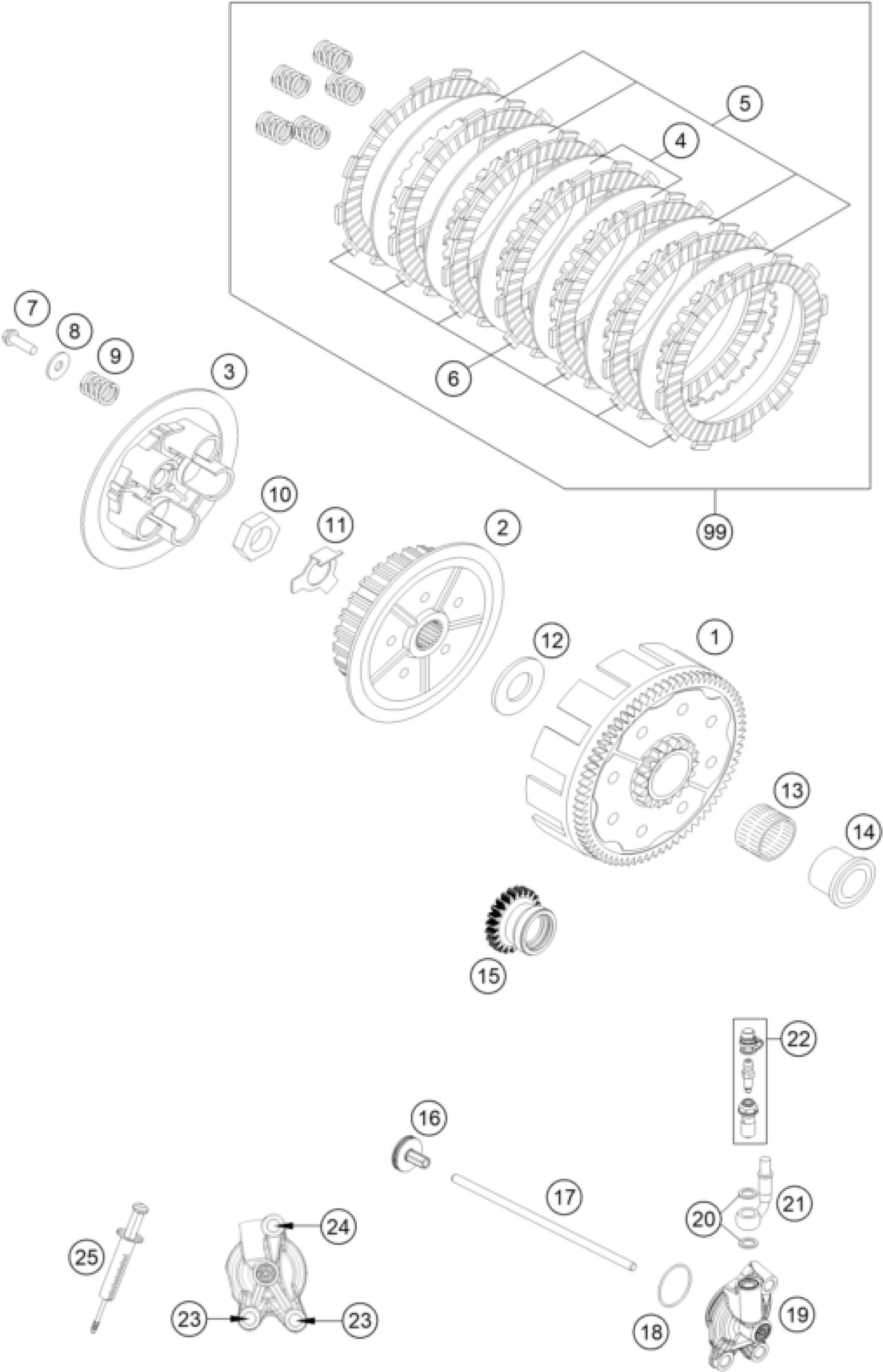

KTM 125 XC-W 2018 CLUTCH Diagram

#

Description
Price

1

OUTER CLUTCH HUB '98

50332001044

$451.97

2

INNER CLUTCH HUB 125/200'98

50332002000

$115.09

3

PRESSURE PLATE 125/200'98

50332003000

$86.95

4

INTERMEDI. DISC STEEL 1,5MM'98

50332010100

$14.76

5

INTERMEDIATE DISC 1,5MM

50332010400

$21.03

6

LINING DISC 3,0MM 05

77032011000

$36.27

7

HH collar screw M6x20 TX30

0025060206

$3.08

8

STEPPED WASHER 03

52332006100

$5.23

9

CLUTCH SPRING

77032005100

$3.08

10

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

$7.75

11

SHEET METAL LOCK 1,5MM '98

50332018000

$6.26

12

STOP DISK 20X39,6X3 '98

50332020000

$16.35

13

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

$23.83

14

INNER RING 20X26X25,9 '98

50332013000

$30.19

15

PRIMARY WHEEL 23T

50432023023

$108.73

16

PRESSURE PIECE CPL. 08

78032057044

$26.08

17

PUSH ROD

50432054000

$16.63

18

O-ring 30x1.5 NBR 70

0770300015

$2.05

19

OUTPUT CYLINDER CPL.

79232061044

$187.65

20

SEAL RING CU DIN7603- 8X12X1

0603082121

$3.08

21

CLUTCH PIPE

79232063000

$112.38

22

BLEEDER SCREW CPL.

79032064000

$30.38

23

HH collar screw M6x16 TX30

0025060166

$3.08

24

HH collar screw M6x25 TX30

0025060256

$3.08

25

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

99

CLUTCH KIT 125/200 06-14

50332011210

$252.82
