Description

Price

12

MASTER CYLINDER CPL.

79202030044

$268.06

1

HANDLEBAR

7800200100030

$151.84

3

HAND GUARDS CPL.L/S+R/S ORANGE

77702179000EB

Unavailable

7

THROTTLE BODY CPL.

50402010025

$35.24

10

THROTTLE CABLE

50402091000

$59.83

31

Clutch lever cmpl. BREMBO 06

54802031000

$45.15

32

REP. KIT PISTON 9MM

79202032044

$60.39

33

COVER HYD. CLUTCH CPL. 2014

5480200310030

$35.52

37

PROTECTION CAP 06

54802037000

$20.94

38

Lever screw cmpl. 06

54802038100

$39.82

39

CLAMP CPL. 06

54802005100

$25.80

40

Push rod cmpl.

54802046000

$23.46

41

BOLT KPL.

54802052000

$29.35

63

CLUTCH PIPE

79232063000

$112.38

99

Brake fluid DOT5.1 0,25L

00062030000

$12.52

2

Bar pad cmpl.

77202002144

$22.94

5

LIGHT SWITCH

78111070000

$76.76

8

CLIP 5/7 MM 06

60111094000

$3.08

6

HH COLLAR SCREW M 5X16 WS=6

0014050163

$2.05

4

GRIP SET

79002021100

$31.44

11

Cable tie 200/4.6mm black

44011076200

$1.49

13

SPACER BUSHING 22X28X22PVC

50202010000

$2.61

16

VALVE

54802051000

$19.16

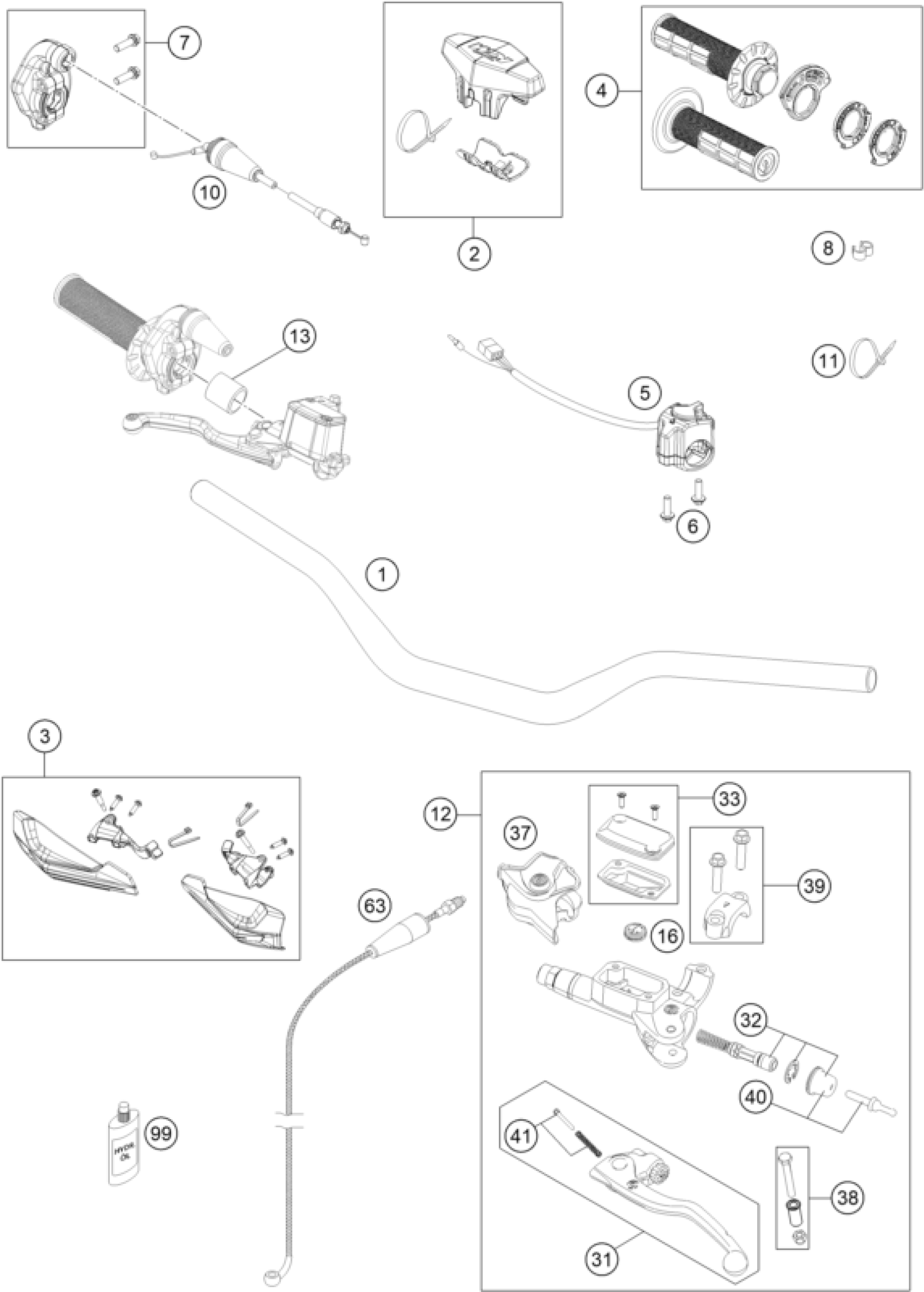

KTM 125 XC-W 2017 HANDLEBAR, CONTROLS Diagram
