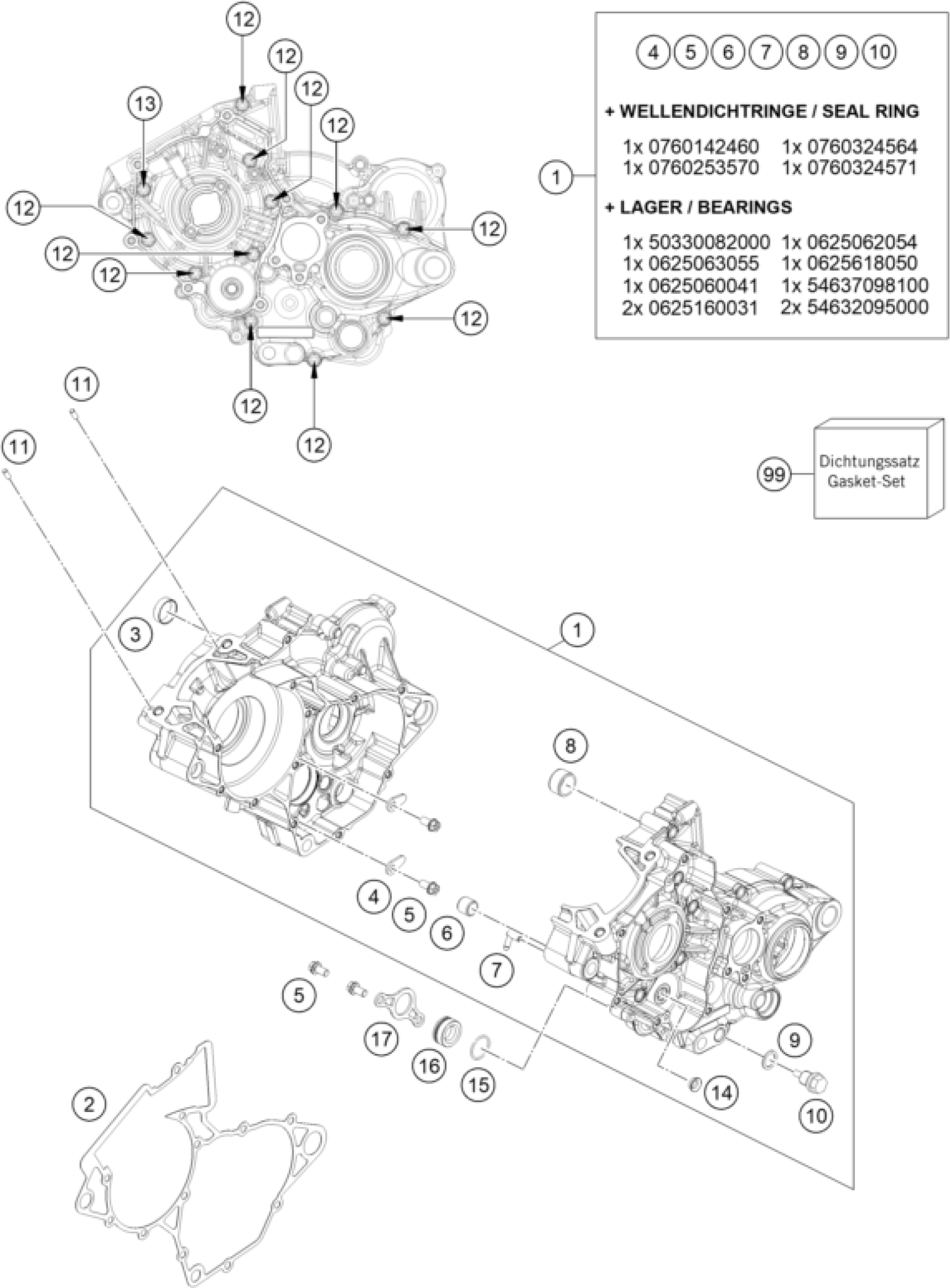

KTM 125 XC-W 2017 ENGINE CASE Diagram

#

Description
Price

15

O-RING 19,10X1,60 NBR 70

0770191016

$1.49

16

E-STARTER CLOSING COVER

50440002000

Unavailable

17

E-STARTER SHEET METAL

50440003000

Unavailable

3

BUSHING IDLER GEAR

50433024050

$26.17

4

RETAINING PLATE

54634049000

$4.11

5

HH collar screw M6x12 TX30

0025060126

$3.08

6

DOWEL BUSHING 13,8X11X12

54630027000

$6.91

7

ANGLE PIECE 50CCM LC 2001

45130022000

$5.88

8

DOWEL 21X12 03

54830027000

$5.23

9

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

10

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

11

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

12

HH collar screw M6x50 TX30

0025060506

$3.08

13

HH collar screw M6x60 TX30

0025060606

$3.08

99

GASKET SET ENGINE 125/150

50430099000

Unavailable

14

COLLAR BUSHING

55140030100

$3.08

1

ENGINE CASE CPL.

50430100044

$745.47

2

GASKET ENGINE CASE

50430039000

$26.17
