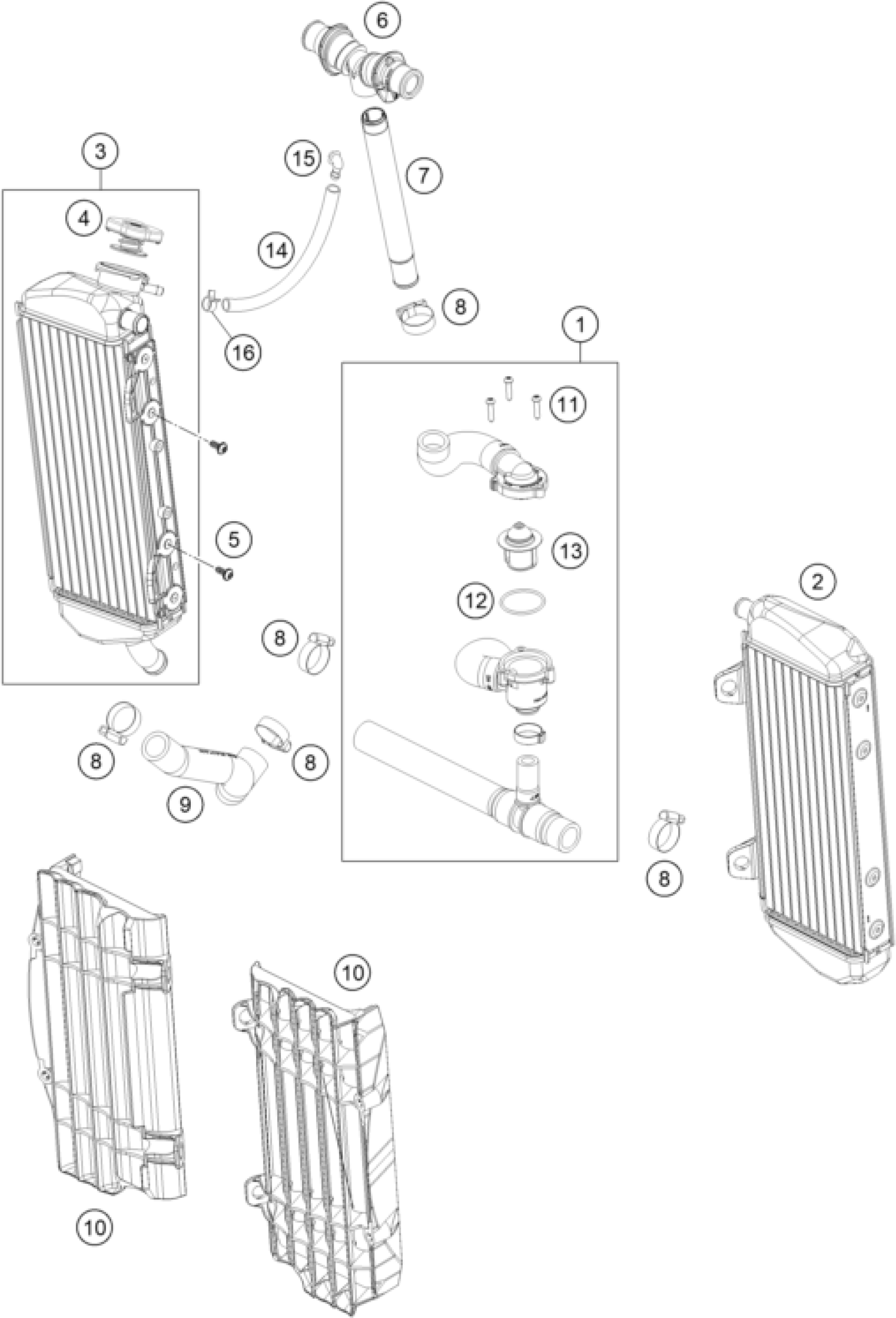

KTM 125 XC-W 2017 COOLING SYSTEM Diagram

RADIATOR HOSE WITH THERMO

50435026033

$144.08

RADIATOR LEFT 17

50435007100

$200.74

RADIATOR RIGHT 17

50435008100

$244.59

RADIATOR CAP 1,8 BAR

79035016000

$28.51

COLLAR SCREW M6X12 TX

0024060123

$1.49

Y-PIECE CPL.

79035071044

$53.57

COOLING WATER PIPE

50435073000

$19.44

HOSE CLAMP GEMI 18-29

10001020000

$2.05

PREFORM.HOSE ENGINE/RAD. R/S

50435027000

$21.12

RADIATOR PROTECTOR

7903513400030

$18.13

SCREW FOR PLASTIC D=4X18

0016040183

$2.05

O-RING 32,00X2,00

0770320020

$2.05

THERMOSTAT 70 DEGREE 04

59435017000

$42.25

PVC-HOSE 6X9

50335030001

$6.72

ANGLE PIECE 90 DEGREE M10X1

51030022000

$5.23

CLAMP YDNAC 10096F (9,6MM)

59007017000

$2.05
