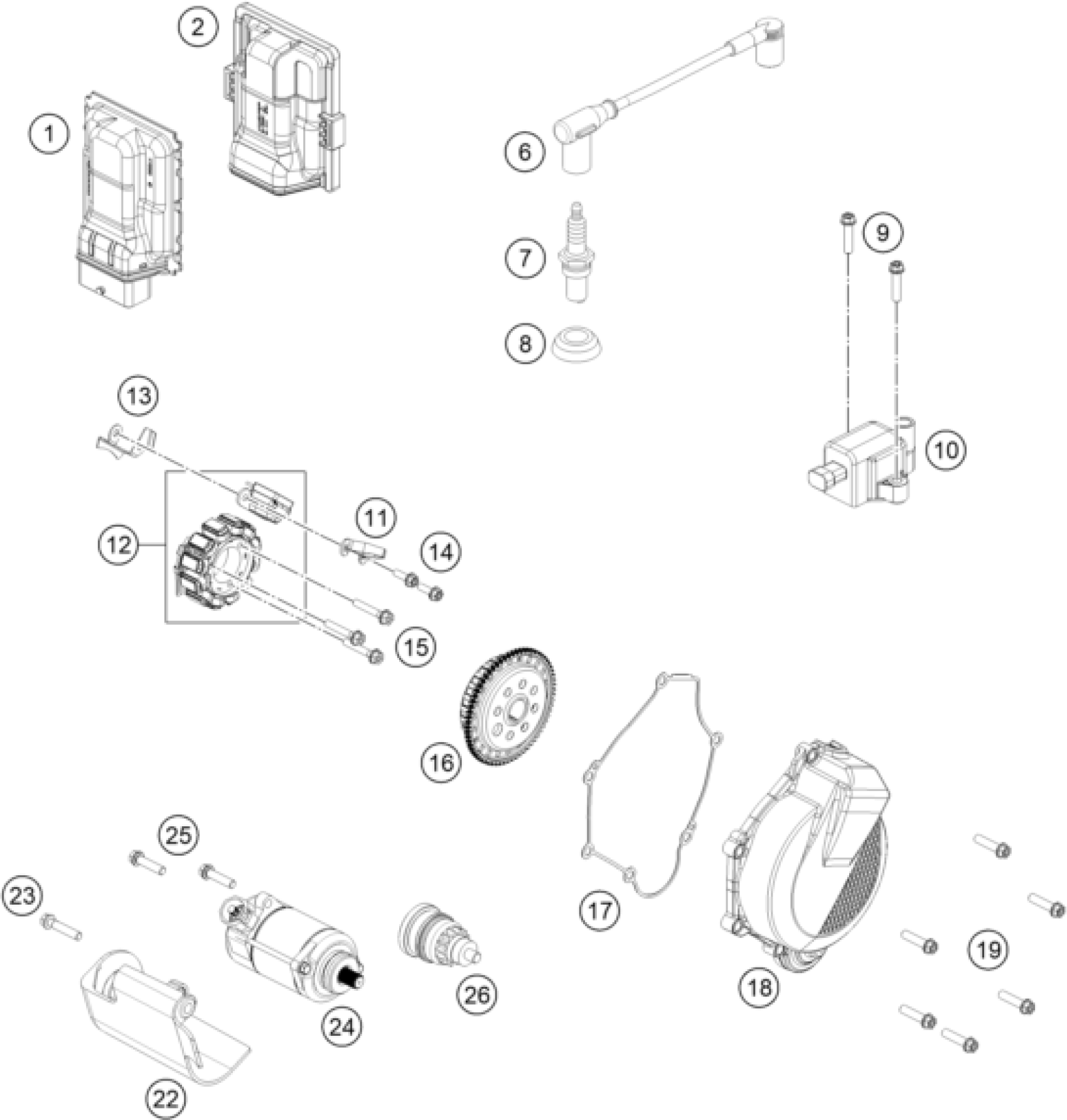

KTM 125 XC 2024 IGNITION SYSTEM Diagram

#

Description
Price

1

Engine control unit

A45041031000

$312.47

2

Engine control unit rubber

A45041031050

$8.13

6

Ignition cable

A44039007100

$64.79

7

SPARK PLUG

47039093000

$17.57

8

Sealing boot

51739091000

$7.38

9

COLLAR SCREW M6X18 ISA30

0026060186

$1.49

10

Iginition coil

55639006000

$52.16

12

Stator

79239404000

$195.03

13

Cable retainer

A46030002050

$9.06

14

HH collar screw M5x16 TX30

0025050166

$2.05

15

Bolt DIN 6912 - M5x25 SS

0012050253S

$1.49

16

Rotor

A42039405000

$383.15

17

Ignition cover gasket

A42030040000

$7.94

18

Ignition cover cmpl.

A42030002044C1

$121.07

19

HH collar screw M6x20 TX30

0025060206

$3.08

22

Starter motor cover

A42040040000

$19.63

23

HH collar screw M6x30 TX30

0025060306

$3.08

24

Starter motor

A42040001000

$238.98

25

HH collar screw M6x25 TX30

0025060256

$3.08

26

BENDIX

50440026000

$80.40

11

Pick UP hanger

A42039004010

$3.73
