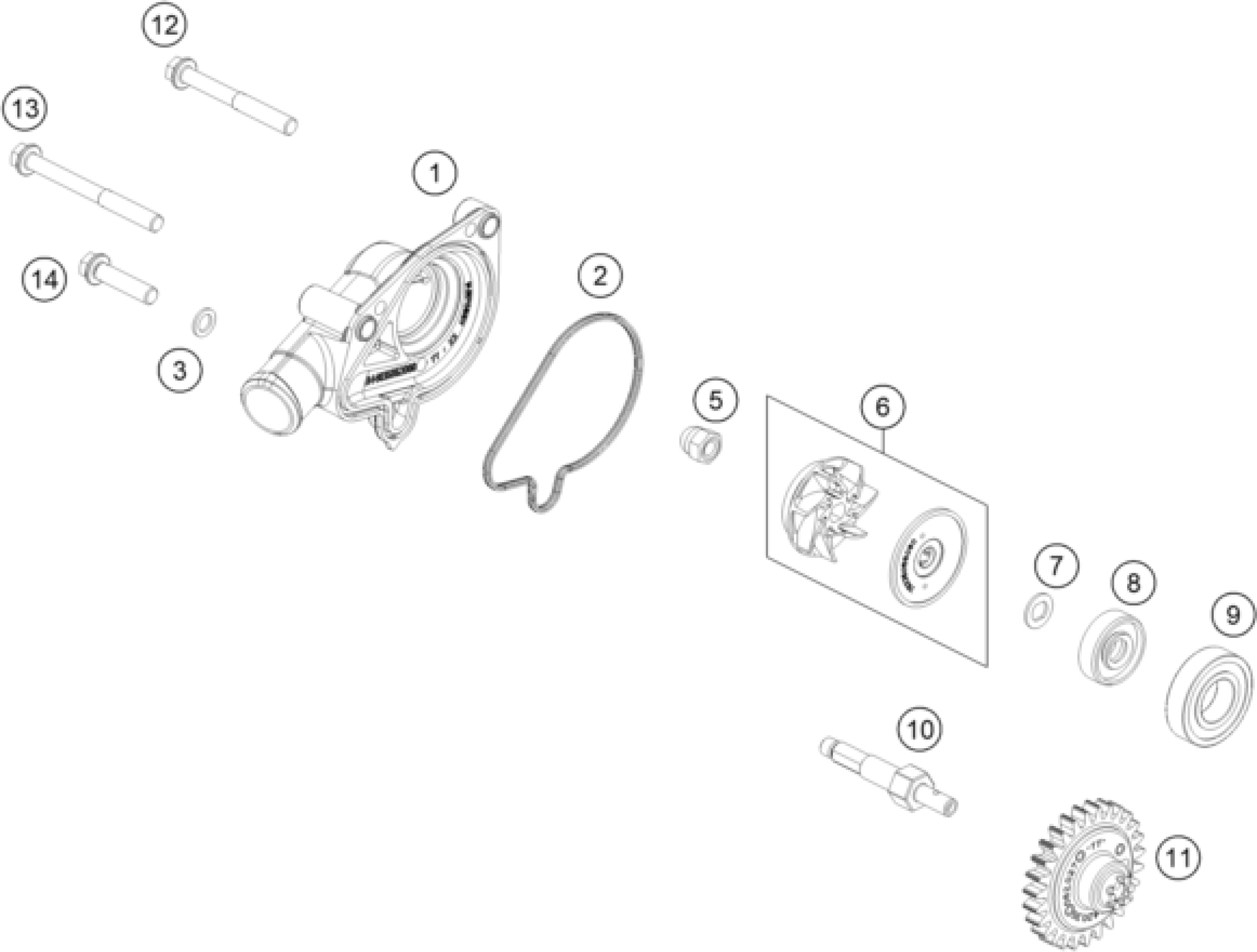

KTM 125 XC 2023 WATER PUMP Diagram

#

Description
Price

1

Water pump cover

A44035052000

$11.12

2

Water pump cover seal

A44035052010

$2.05

3

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

5

CAP NUT M6 STAINLESS STEEL

61230045000

$2.05

6

WATER PUMP WHEEL CPL.

79235055044

$15.42

7

PREFORMED WASHER

50435049000

$4.11

8

SHAFT SEAL RING 8X24X7 A DUO

0760082472

$7.66

10

Water pump shaft

A44035054000

$17.57

11

Drive gear wheel

A42035062027

$6.44

9

Grooved ball bearing 608 2RS C

0625006087

$21.40

12

HH collar screw M6x50 TX30

0025060506

$3.08

13

HH collar screw M6x60 TX30

0025060606

$3.08

14

HH collar screw M6x25 TX30

0025060256

$3.08
