Description

Price

1

Silencer SX

A42005079000

$455.24

2

SCREW TORX M5X10

78105081010

$2.05

3

DUMMY RIVET 4,8X 8 NIRO

0011480800

$3.08

4

O-RING 74,00X1,50 FKM 75SH

0770740015

$4.11

5

end cap cpl.

A42005079060

$106.58

6

stuffing yarn package

A44005079085

$49.36

7

manifold 125/125 SX

A42005007000

$461.41

8

exhaust rubber

50405057000

$9.62

9

O-ring 38x3 VITON

0770380030

$5.23

10

Tension spring L=62mm

A46005016000

$4.57

11

RANGE CHANGE METAL NUT M8

54603048000

$4.11

12

BUSHING 8.5x12x28x8.3

77805069000

$5.98

13

Hose spring

50405058000

$4.11

14

HH collar screw M8x30

0025080306

$3.08

15

HH collar screw M6x30 TX30

0025060306

$3.08

16

Pair of washers M6 NORDLOCK

50233041000

$4.11

17

Damper gray

79105068000

$8.03

18

BUSHING 7.5x12x28x8.3 11

77205169000

$6.07

19

DAMP. COMPON. BLACK

77205068000

$6.54

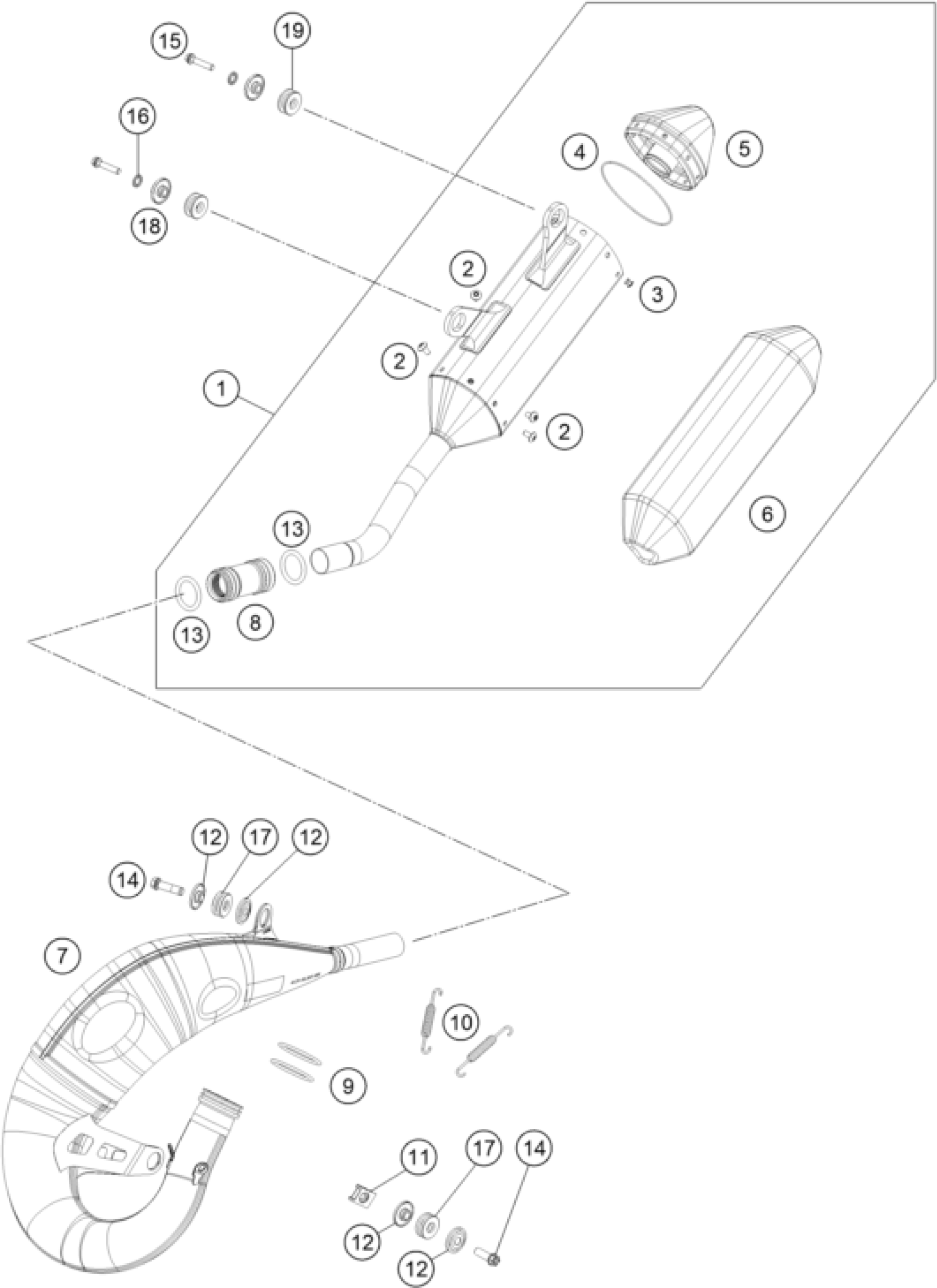

KTM 125 XC 2023 EXHAUST SYSTEM Diagram

Silencer SX

SCREW TORX M5X10

DUMMY RIVET 4,8X 8 NIRO

O-RING 74,00X1,50 FKM 75SH

end cap cpl.

stuffing yarn package

manifold 125/125 SX

exhaust rubber

O-ring 38x3 VITON

Tension spring L=62mm

RANGE CHANGE METAL NUT M8

BUSHING 8.5x12x28x8.3

Hose spring

HH collar screw M8x30

HH collar screw M6x30 TX30

Pair of washers M6 NORDLOCK

Damper gray

BUSHING 7.5x12x28x8.3 11

DAMP. COMPON. BLACK
