Description

Price

1

Engine case cmpl.

A42030000044

$633.08

6

DOWEL BUSHING 13,8X11X12

54630027000

$6.91

8

Dowel, 21x12

54830027100

$5.23

9

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

10

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

11

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

13

HH collar screw M6x25 TX30

0025060256

$3.08

99

Gsket kit Engine MX 125

A42030099000

Unavailable

12

HH collar screw M6x50 TX30

0025060506

$3.08

7

Housing bush

79230010000

$11.87

5

hex lobe countersunc screw M5x

0019050106S

$2.05

4

Retaining bracket crankshaft b

75030085100

$1.49

2

Clutch cover gasket, inner

A42030025000

$10.56

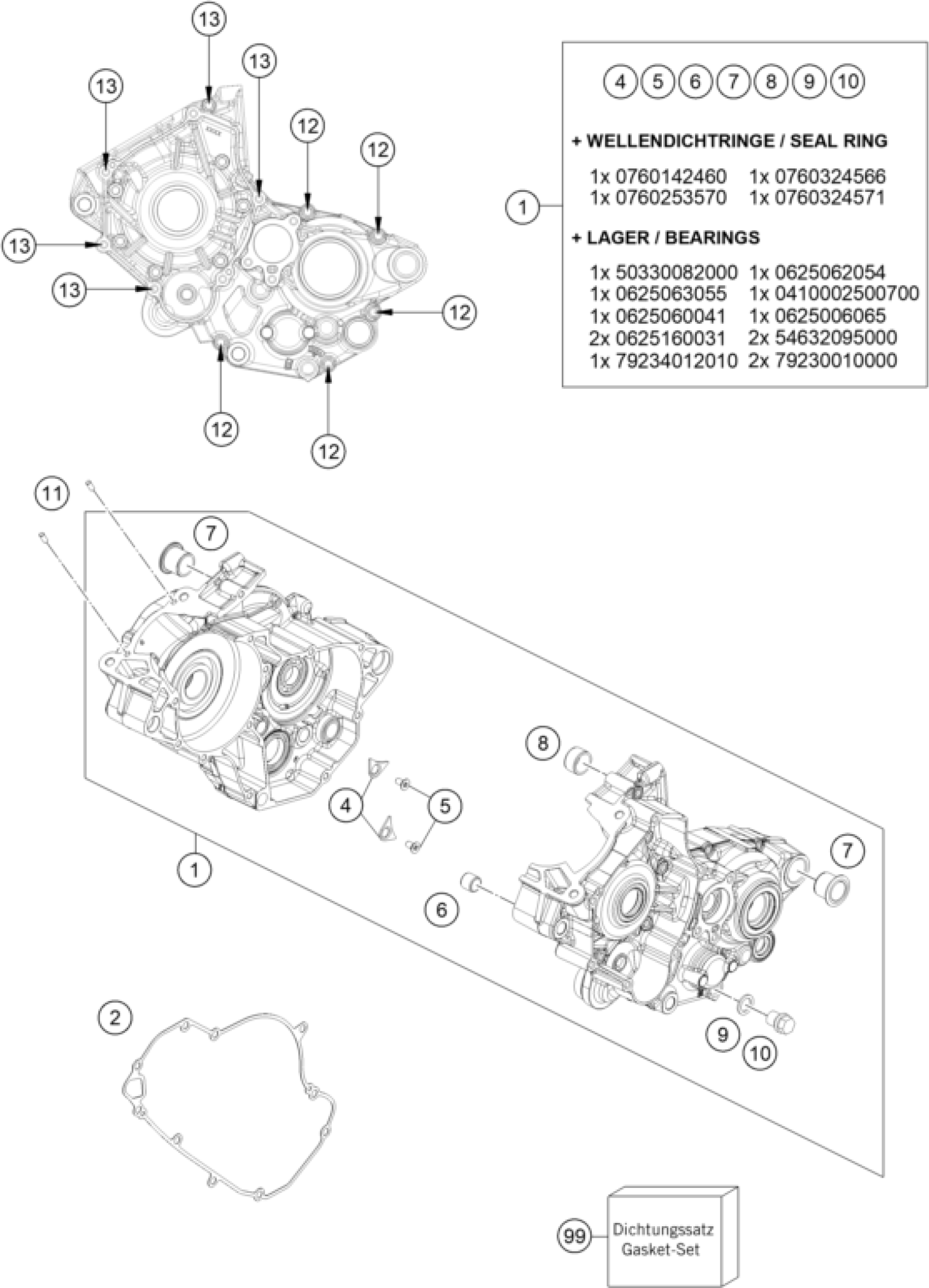

KTM 125 XC 2023 ENGINE CASE Diagram

Engine case cmpl.

DOWEL BUSHING 13,8X11X12

Dowel, 21x12

CU-seal ring DIN7603-12X18X1.5

OILDRAIN PLUG W.MAG. M 12X1,5

Needle roll.DIN5402 NRB 4X9.8

HH collar screw M6x25 TX30

Gsket kit Engine MX 125

HH collar screw M6x50 TX30

Housing bush

hex lobe countersunc screw M5x

Retaining bracket crankshaft b

Clutch cover gasket, inner
