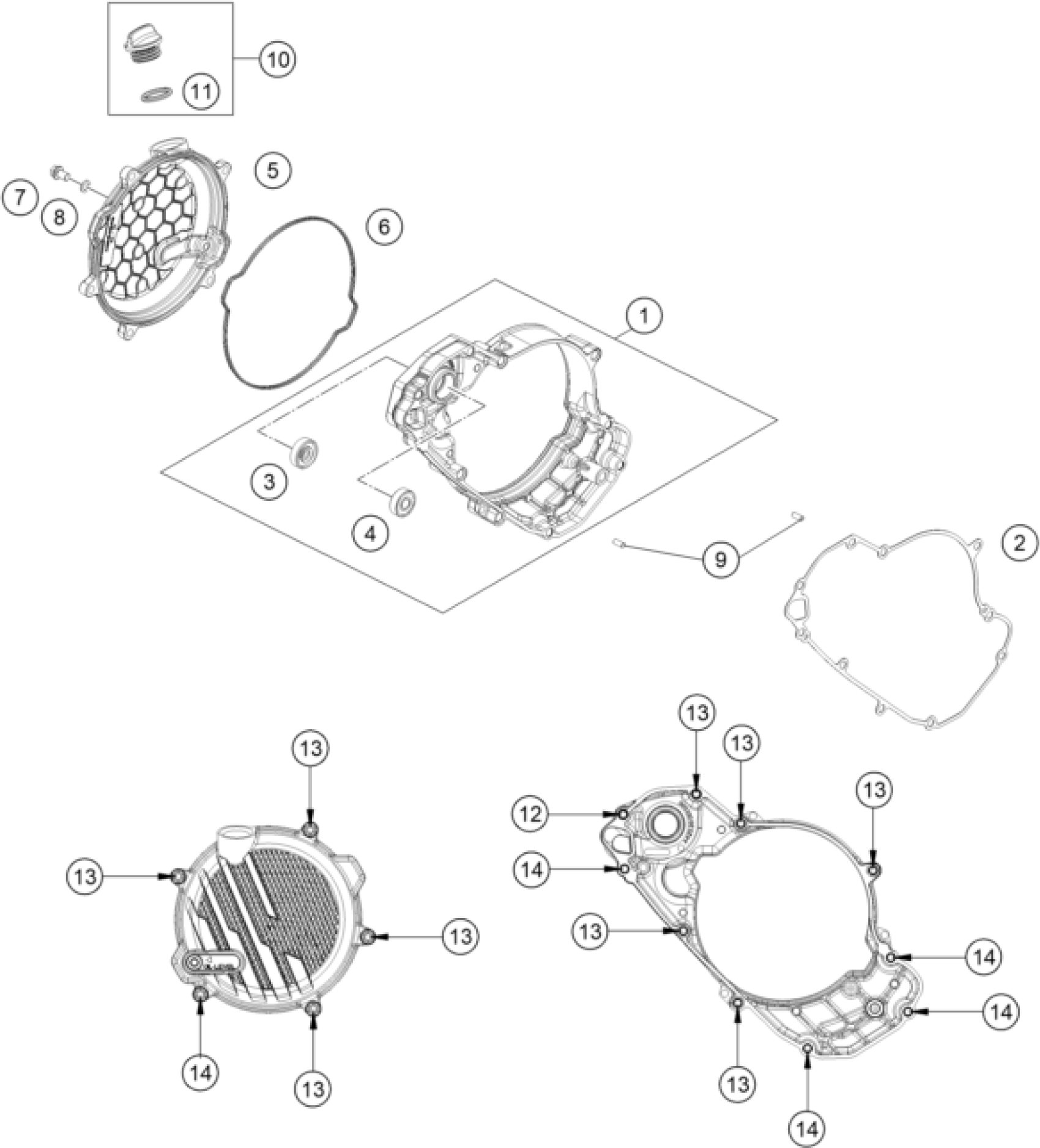

KTM 125 XC 2023 CLUTCH COVER Diagram

#

Description
Price

2

Clutch cover gasket, inner

A42030025000

$10.56

4

Grooved ball bearing 608 2RS C

0625006087

$21.40

1

Inner clutch cover cmpl.

A42030001044

$116.21

3

SHAFT SEAL RING 8X24X7 A DUO

0760082472

$7.66

6

Clutch cover gasket, external

A42030027000

$5.23

5

clutch cover

A42030026000C1

$52.73

10

Oil filler cap cmpl. M24x3

79430020033

$8.03

11

O-RING 19,00X3,00 NBR

0770191015

$2.05

7

HH collar screw M6x10 TX30

0025060106

$3.08

8

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

9

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

12

HH collar screw M6x60 TX30

0025060606

$3.08

13

HH collar screw M6x50 TX30

0025060506

$3.08

14

HH collar screw M6x25 TX30

0025060256

$3.08
