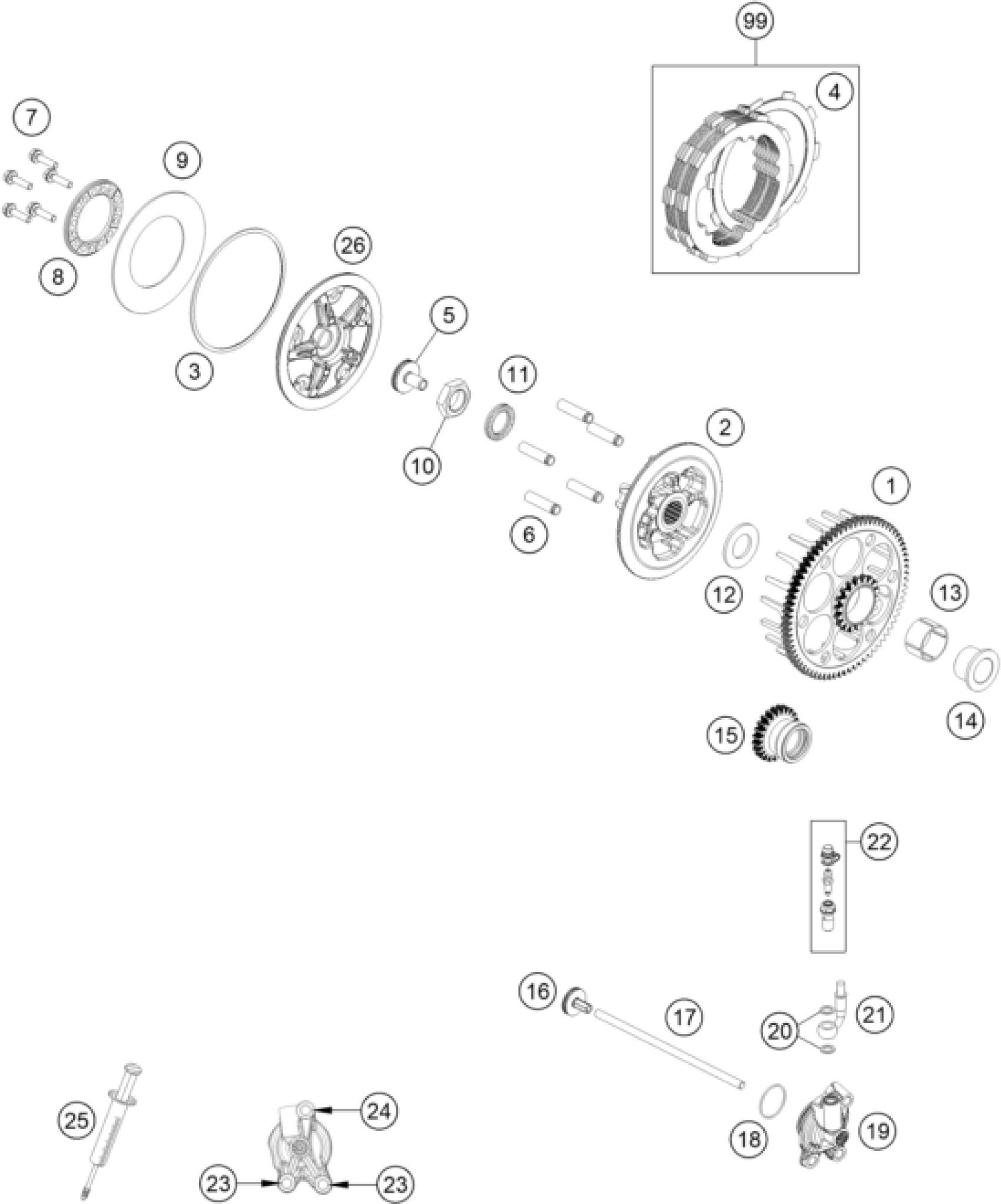

KTM 125 XC 2023 CLUTCH Diagram

#

Description
Price

1

clutch basket SX

50532001073

$288.72

2

Inner clutch hub

50532002000

$34.03

3

Inner ring

50532013000

$6.91

4

Friction plate 1.95 mm

50532011000

$19.44

5

PRESSURE PIECE CPL.

78132057144

$30.75

6

Sleeve 7.95x31.65

50532004000

$3.08

7

HH collar screw M5x20 TX30

0025050206

$2.05

8

Spring plate

50532006000

$28.14

9

Clutch spring

50532005000

$11.02

10

Hex nut DIN0936-M18x1.5 right

0936181506

$3.08

11

Wedge lock washer 19.5x29x3.4

0252012002900

$3.08

12

Supporting plate 20x36x2.5

50532017000

$9.62

13

Needle cage K263017

0405263017

$10.93

14

Collar 20x26x19,5

50532015000

$20.94

15

gear primary drive

50532023023

$108.73

16

PRESSURE PIECE CPL.

78132057144

$30.75

17

Push rod

A42032054000

$11.49

18

O-ring 30x1.5 NBR 70

0770300015

$2.05

19

OUTPUT CYLINDER CPL.

79232061044

$187.65

20

SEAL RING CU DIN7603- 8X12X1

0603082121

$3.08

21

CLUTCH PIPE

79232063000

$112.38

22

BLEEDER SCREW CPL.

79032064000

$30.38

23

HH collar screw M6x16 TX30

0025060166

$3.08

24

HH collar screw M6x25 TX30

0025060256

$3.08

25

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

26

Preasure plate

50532003000

$24.77

99

Clutch disc pack

50532010033

$163.99
