Description

Price

1

Air filter box, bottom part

A46006101000AB

$43.28

2

Air filter panel

A46006004000AB

$29.74

3

Air filter cover

A46006003000AB

$29.74

4

Side fairing

A46006005000AB

$29.74

5

Air filter box front part

A46006001010AB

$16.99

7

HH collar screw M6x20 TX30

0025060206

$3.08

9

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

10

Chain slider bushing

77304066150

$1.49

11

exhaust spacer

79105098000

$5.51

12

HOSE CLAMP 45-65MM

78006027000

$5.23

13

Air boot

A44006026000

$51.70

14

Air filter holding bracket

A46006017000

$9.34

15

Air filter support

A42006016000

$11.59

16

Air filter

A46006015000

$31.27

19

quick release rubber grommet

47106003160

$4.11

23

Splash protection

A46004050000

$11.64

24

EJOT PT screw K50x14

0081050141

$1.49

26

Special screw M8X18 TORX45 SL

79003003000

$3.08

27

special screw M6x12x3

83008000012

$3.08

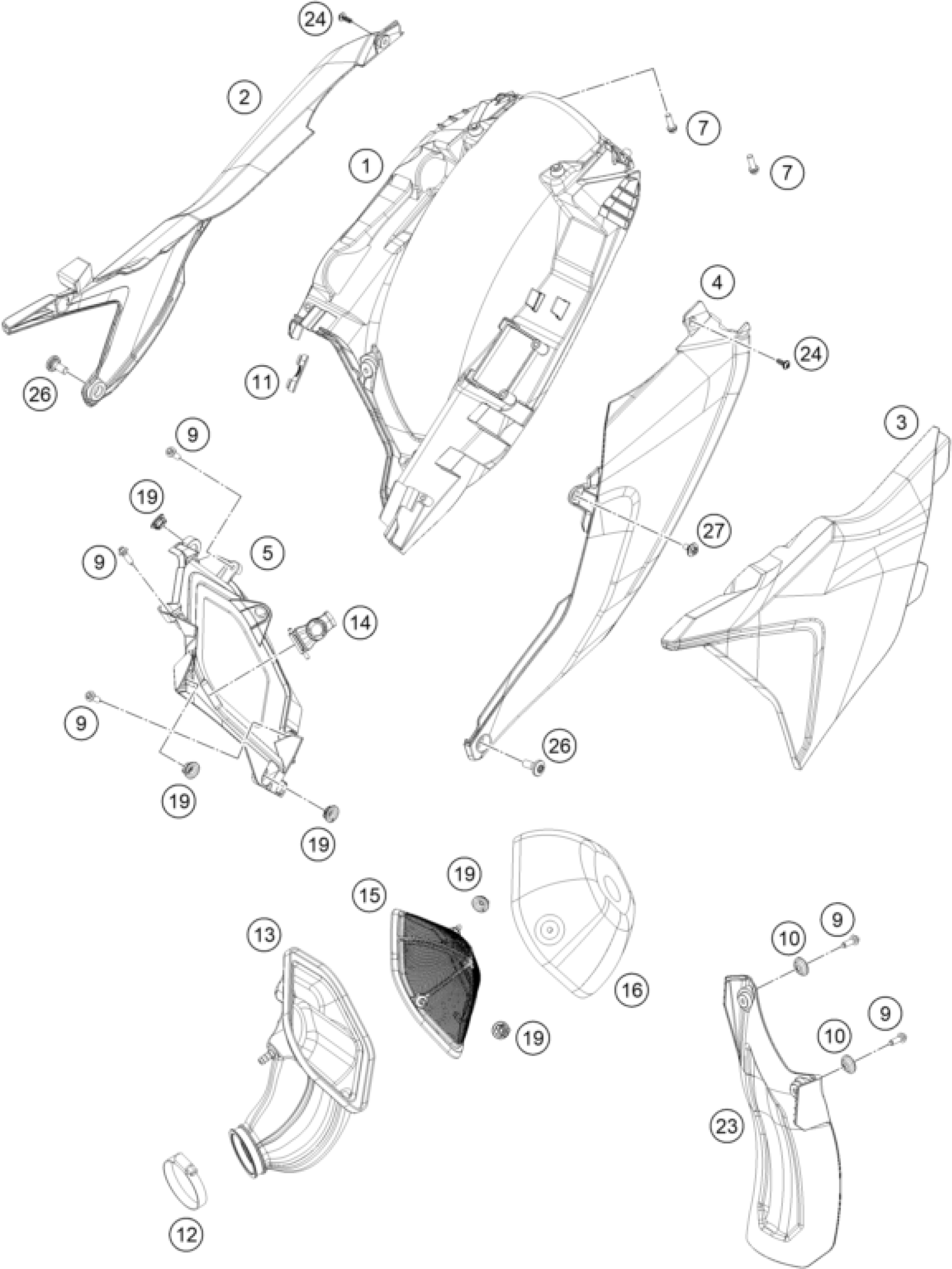

KTM 125 XC 2023 AIR FILTER Diagram

Air filter box, bottom part

Air filter panel

Air filter cover

Side fairing

Air filter box front part

HH collar screw M6x20 TX30

SCREW F. PLASTIC K60X20AL SW6

Chain slider bushing

exhaust spacer

HOSE CLAMP 45-65MM

Air boot

Air filter holding bracket

Air filter support

Air filter

quick release rubber grommet

Splash protection

EJOT PT screw K50x14

Special screw M8X18 TORX45 SL

special screw M6x12x3
