Description

Price

1

Fuel tank

5550711300099

$207.47

2

Seat holder screw

79107011000

$3.08

3

TANK PLUG CPL. 14

78107008044X4

$29.07

4

TANK ROLLER 12X26X12 '98

50307014000

$11.02

5

COLLAR SCREW M6X13 ISA30

0026060136

$3.08

6

wire holder / fuel ventilation

79107013010

$1.49

7

PVC-hose 5.6X10X270MM

78007000270

$2.61

8

spoiler set SX/XC 2022

79108054000ABE

$113.41

9

GAS HOSE

55607016000

$8.31

10

HH collar screw M6x12 TX30

0025060126

$3.08

13

O-RING 11X2 VITON

0770110021

$2.05

14

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

15

GAS COCK ON/OFF/RES 03

54807004000

$32.72

16

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

17

Seat cmpl.

79107040300

$104.90

18

Seat cover

79107040350

$97.98

19

CLAMP YDNAC 10128 12MM

58031005000

$3.08

20

Seat screw

79107040010

$3.08

11

HH collar screw M6x16 TX30

0025060166

$3.08

12

Isolation pad

77307040041

$2.05

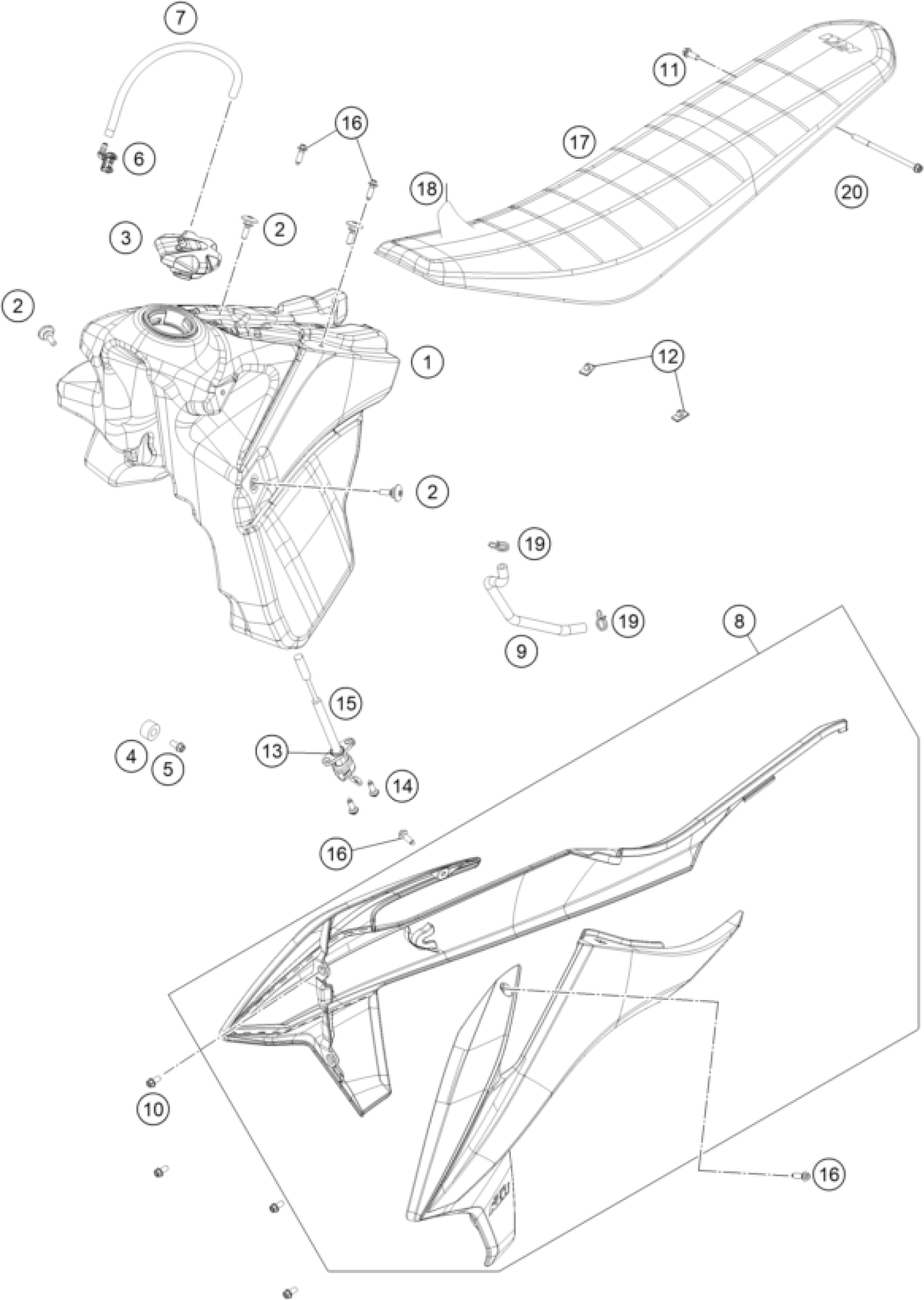

KTM 125 XC 2022 TANK, SEAT Diagram

Fuel tank

Seat holder screw

TANK PLUG CPL. 14

TANK ROLLER 12X26X12 '98

COLLAR SCREW M6X13 ISA30

wire holder / fuel ventilation

PVC-hose 5.6X10X270MM

spoiler set SX/XC 2022

GAS HOSE

HH collar screw M6x12 TX30

O-RING 11X2 VITON

SCREW FOR PLASTIC K60X20 SW6

GAS COCK ON/OFF/RES 03

SCREW F. PLASTIC K60X20AL SW6

Seat cmpl.

Seat cover

CLAMP YDNAC 10128 12MM

Seat screw

HH collar screw M6x16 TX30

Isolation pad
