Description

Price

1

pinion shaft

50533010100

$211.58

2

Idler gear 2nd gear not=30

50533012000

$138.37

3

Sliding gear, 6th gear, teeth=

50533016000

$135.75

4

Idler gear, 3rd gear, not=28

50533013000

$133.51

5

Idler 4th gear not=27

50533014000

$133.51

6

Sliding gear, 5th gear, teeth=

50533015000

$135.57

7

Idler gear, 1st gear, teeth=32

50533011000

$120.05

8

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

$11.68

9

CIRCLIP WS24

0417024000

$2.05

10

STOP DISC 24X32X1,5

77733044000

$4.11

11

STOP DISC 23,4X31X1,5

77733043000

$3.08

12

STOP DISC 20,2X30X1

54833080000

$3.08

13

NEEDLE BEARING K20X24X10

0405202410

$11.49

14

STOP DISC 17,2X30X1

56033030000

$4.11

15

GROOVED BALL B. 16003 C4 J1

0625160031

$20.56

16

BALL BEARING 6205 C3 NTN

0625062054

$20.66

17

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

$5.23

18

O-RING 23,00X2,00 NBR70

0770230020

$2.05

19

SPACER BUSHING 12,4 MM

50433030000

$20.84

20

Sprocket 13-t

79233029013

$30.94

21

Spring washer 17.2X40X1.5

59033034000

$2.89

22

HH COLLAR SCREW M10X18 10.9

59033029000

$1.77

99

Counter shaft repair kit 125/1

50533010110

$40.01

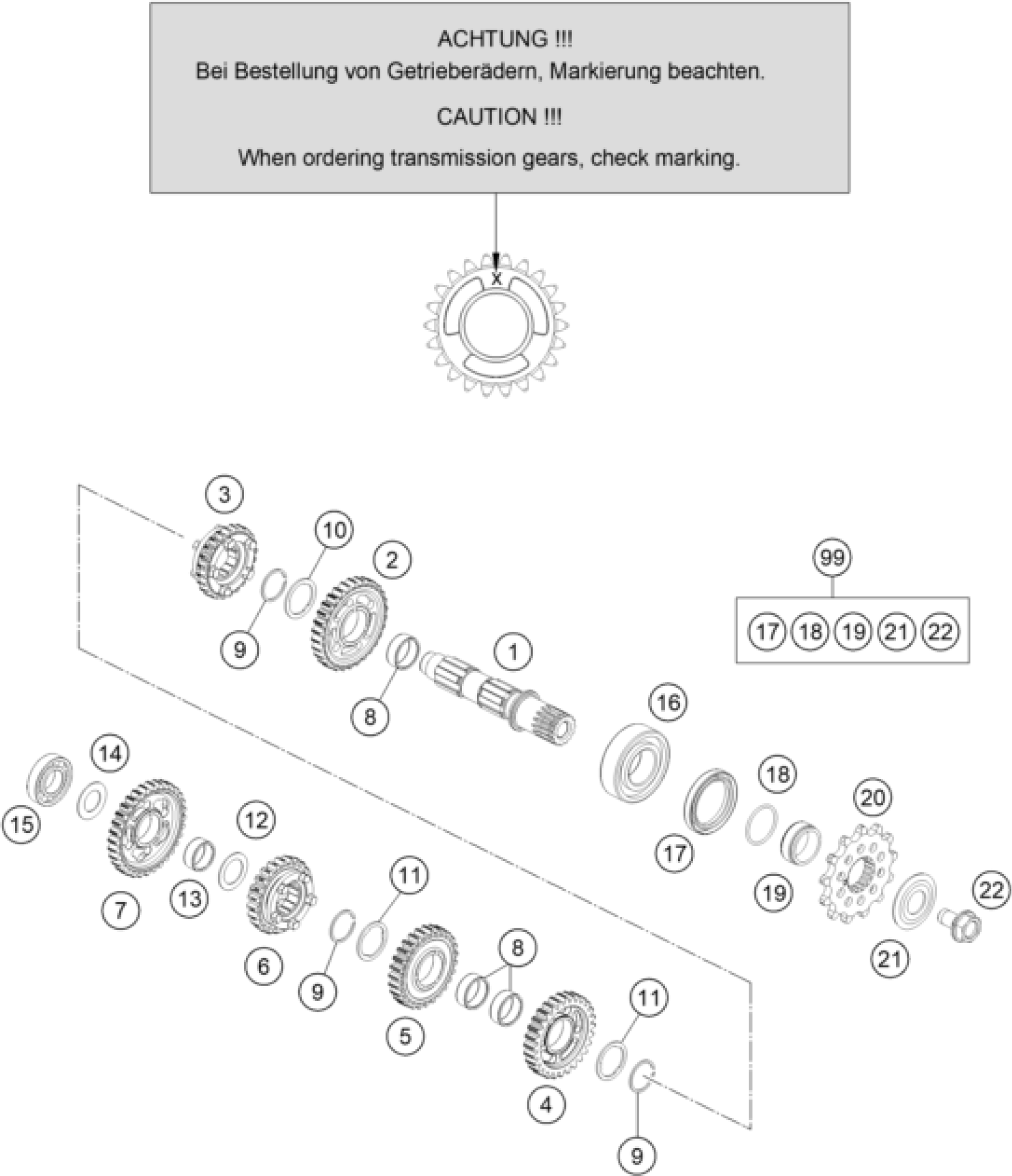

KTM 125 XC 2021 TRANSMISSION II - COUNTERSHAFT Diagram
