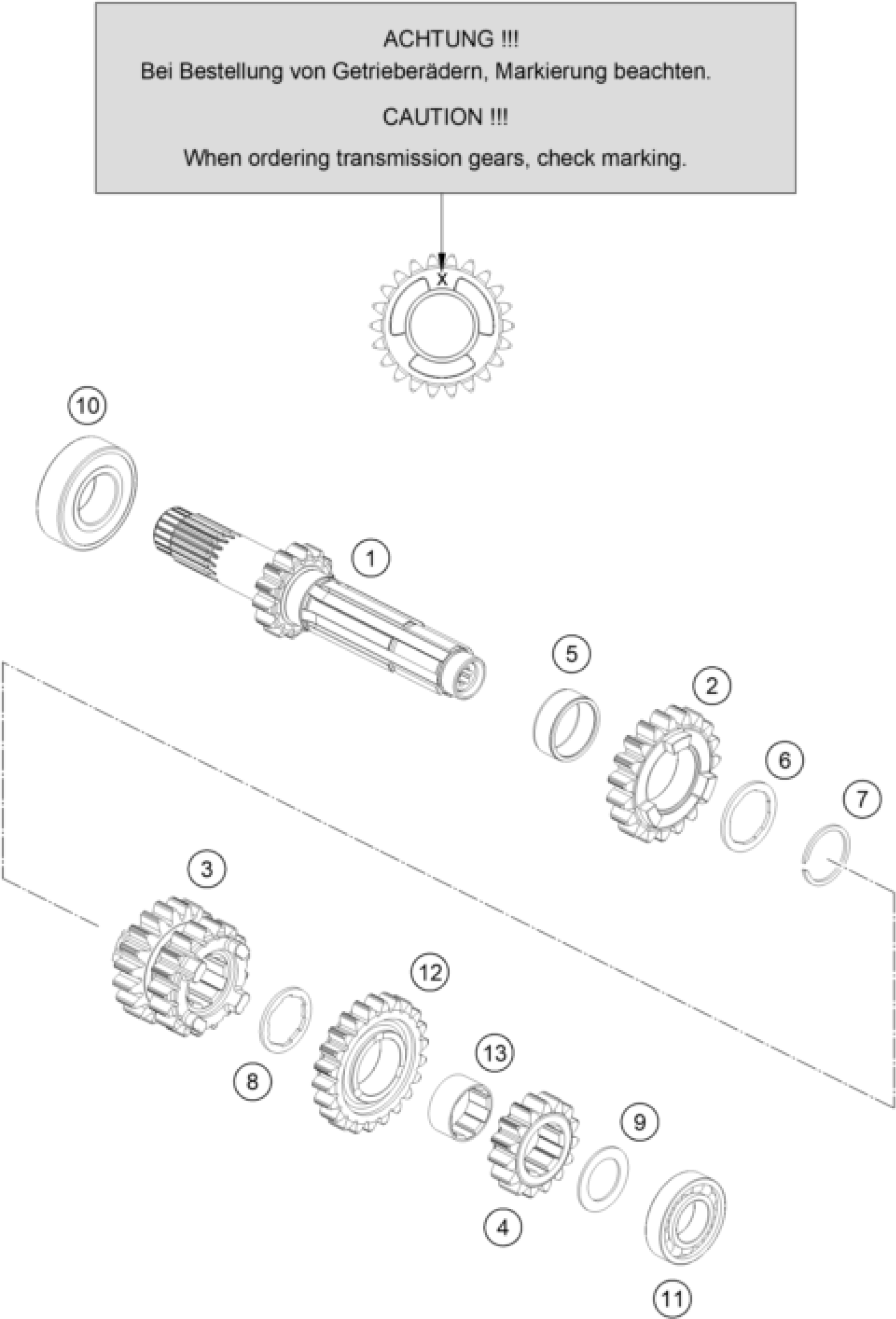

KTM 125 XC 2021 TRANSMISSION I - MAIN SHAFT Diagram

#

Description

Price

1

Drive Shaft Assy. not=14

50533001000

$213.08

2

Idler gear, 5th gear, teeth=19

50533005000

$117.71

3

Sliding gear, 3rd/4th gear, te

50533003000

$150.53

4

Fixed gear, 2nd gear, teeth=15

50533002000

$92.37

5

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

$11.68

6

Thrust washer

50533034000

$4.11

7

LOCK RING 22X1,2

50133090000

$2.05

8

Thrust washer

50533033000

$4.11

9

STOP DISC 17,2X26X1 B

50333041000

$3.08

10

BALL BEARING 6004 TNH C3

0625060041

$26.26

11

GROOVED BALL B. 16003 C4 J1

0625160031

$20.56

12

Idler gear, 6th gear, teeth=22

50533006000

$115.28

13

bushing

50533024000

$23.37
